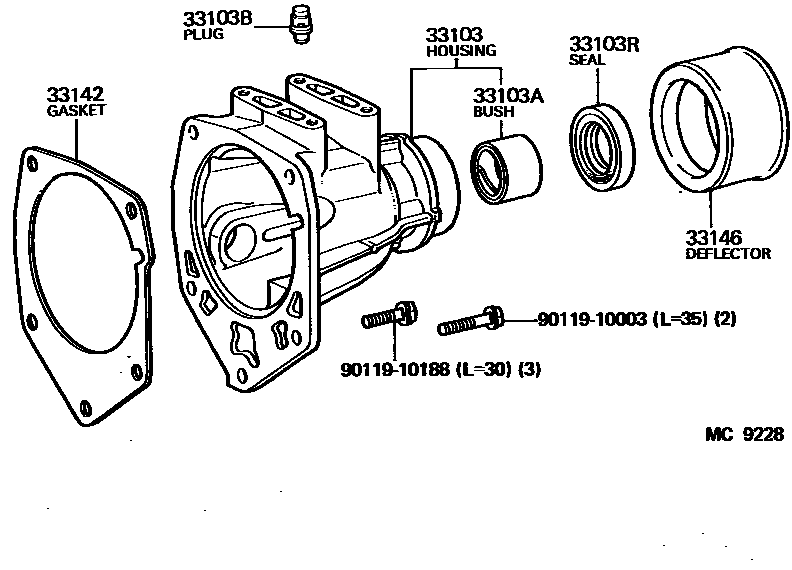

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-26030iLH11..5H198211-198401

sub33103-26902

main33103-26040iLH11..5H198401-198507

sub33103-26900

main33103-27020iLH11,RH11..4H198211-198507

sub33103-27021

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iLH11,RH11198211-198507

sub90999-73139

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03075iLH11,RH11..4H198211-198507

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iLH11,RH11198211-198507

sub90311-38040

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iLH11..5H198401-198507

main33142-26010iLH11,RH11..4H198211-198507

main33142-35030iLH11..5H198211-198401

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLH11,RH11198211-198507

sub33146-30020

9011910003

main90119-10003

9011910188

main90119-10188

8 parts on this diagram · 3 diagrams in section
