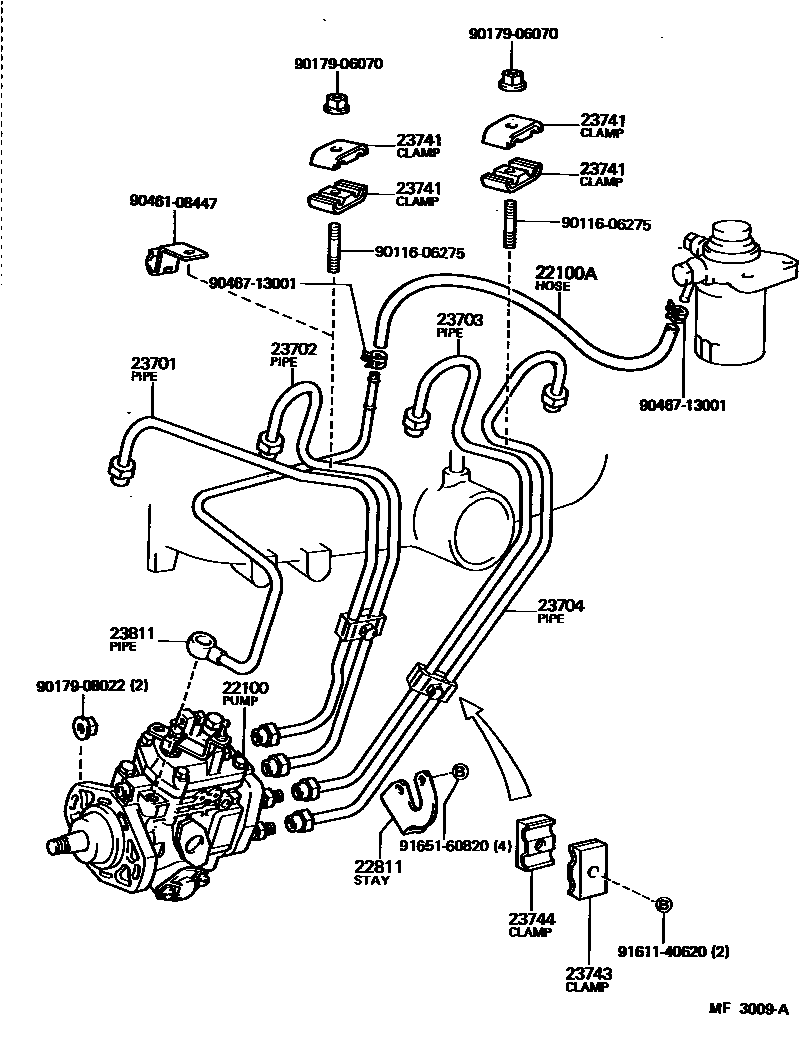

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54131iL..LH11198211-198406

sub22100-54132

sub90099-05166

main22100-54132iL..LH11198406-198507

sub22100-54231

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08040iL..LH11198211-198507

L=400(*H,L=320)

sub95333-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54040iL..LH11198211-198507

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051iL..LH11198211-198311

main23701-54082iL..LH11198311-198507

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL..LH11198211-198311

main23702-54081iL..LH11198311-198507

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL..LH11198211-198507

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL..LH11198211-198507

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LH11198211-198507

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LH11198211-198507

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LH11198211-198507

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54051iL..LH11198211-198507

9011606275

main90116-06275

9017906070

main90179-06070

9017908022

main90179-08022

9046108447

main90461-08447

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

18 parts on this diagram · 1 diagram in section
