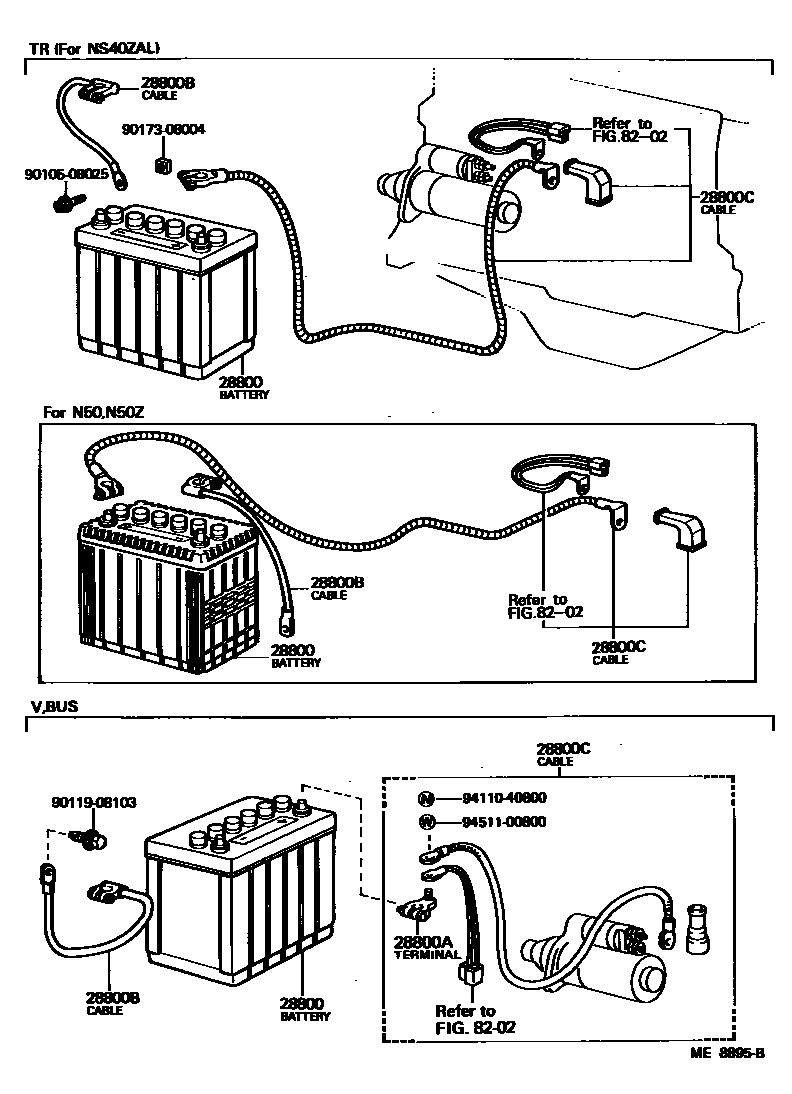

BATTERY & BATTERY CABLE

0001 1 0002 1 0004 1 0005 1

28800BATTERY

main28800-26040i12R,18R..RH11,20,22,3#..(03S,06S)..(GEN,IDN)197702-198211

34B19L,NS40ZAL

sub28800-26050

main28800-30082i12R#,18R..RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197702-198211

48D26R,N50

sub28800-30061

main28800-33111i12R,18R..RH11,20,25,3#..EUR197702-198211

55D26R,N50Z

sub28800-33120

main28800-46011iL..LH11,20197901-197903

75D31R,N70Z

sub28800-46012

main28800-46012iL..LH11,20,30197903-198211

75D31R,N70Z

sub28800-46050

main28800-46020iL..LH30..LHD..EUR197901-198211

105E41R,N100Z

main28800-50010iL..LH20,30;L..LH11..EUR197901-198012

46B24L,NS60L

main28800-54040iL..LH20,30..LHD..EUR198008-198211

95D31R,NX120-7

sub28800-64060

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i12R,18R..RH20,22,3#..V197702-198012

NS40ZAL

sub90982-05028

main90982-05005i12R#,18R..RH2#,3#,42197702-198211

N50,N50Z

sub90982-05030

main90982-05010i12R,18R..RH20,22,3#..GEN198012-198211

NS40ZAL

28800BCABLE, BATTERY TO GROUND

main82046-95A00iL..LH20,30198107-198211

N70Z,NX120-7,L=1530

main90982-02019i12R,18R..RH11,25..ARL,EUR,GEN197702-198211

N50,L=310

main90982-02033i12R,18R..RH20,22,3#..V..GEN197702-198211

NS40ZAL,L=240

main90982-02132i12R#,18R..RH2#,3#,42197702-198211

N50,N50Z,L=310

main90982-02171iL..LH30..LHD..EUR197901-198012

N100Z,L=2920

main90982-02176iL..LH20,30197901-197912

N70Z,NS60L,L=240

main90982-02179iL..LH11197901-197912

N70Z,NS60L,L=350

main90982-02184i12R..RH11..GEN,IDN197901-198211

NS40ZAL,L=300

main90982-02199iL..LH11197912-198003

N70Z,NS60L,L=1320

main90982-02204iL..LH20,30197912-198012

N70Z,NS60L,L=1530

main90982-02204iL..LH20,30198012-198107

N70Z,NX120-7,L=1530

main90982-02215iL..LH11198003-198211

N70Z,NS60L,L=1270

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-95A00i12R..RH11..GEN,IDN198012-198211

NS40ZAL,L=940

main82021-95A01i12R,18R..RH11,25..ARL,EUR,GEN198012-198211

N50,L=210

main82021-95A03iL..LH11..4H198012-198108

N70Z,L=1720

main82021-95A05i12R,18R..RH20,22,3#..V..GEN198012-198211

NS40ZAL,L=520

main82021-95A06i12R,18R..RH20,22,3#,42198012-198211

N50,N50Z,L=540

main82021-95A09iL..LH20,30198012-198105

N70,NX120-7,L=1320

main82021-95A09iL..LH20,30..4H198105-198108

N70,L=1320

main82021-95A12iL..LH11..LHD..T3198108-198211

N100Z

main82021-95A12iL..LH11..EUR198105-198108

N70Z,L=1720

main82021-95A14iL..LH20,30..EUR198105-198108

N70,NX120-7,L=1340

main82021-95A14iL..LH20,30..LHD..EUR198108-198211

NX120-7

main82021-95A16iL..LH11..4H198108-198211

N70Z

main82021-95A17iL..LH11..EUR198108-198211

N70Z

main82021-95A19iL..LH20,30..4H198108-198211

main82021-95A20iL..LH20,30..EUR198108-198211

main90982-01213i12R#,18R..RH2#,3#,42197702-198012

NS40ZAL,N50,N50Z,L=520

main90982-01214i12R,18R..RH11,25197702-198012

N50,L=1210

main90982-01215i12R..RH11197702-198012

NS40ZAL,L=940

main90982-01299iL..LH20,30197901-198012

N70Z,NS60L,L=1320

main90982-01300iL..LH11197901-197912

N70Z,NS60L,L=1780

main90982-01301iL..LH20..LHD..EUR197901-198002

N100Z,L=2920

main90982-01325iL..LH30..LHD..EUR197901-198012

N100Z,L=2960

main90982-01344iL..LH11197912-198003

N70Z,NS60L,L=1600

main90982-01372iL..LH11198003-198012

N70Z,NS60L,L=1720

8202

9010508025

main90105-08025

9011908103

main90119-08103

9017308004

main90173-08004

9411040800

main94110-40800

9451100800

main94511-00800

10 parts on this diagram · 4 diagrams in section
