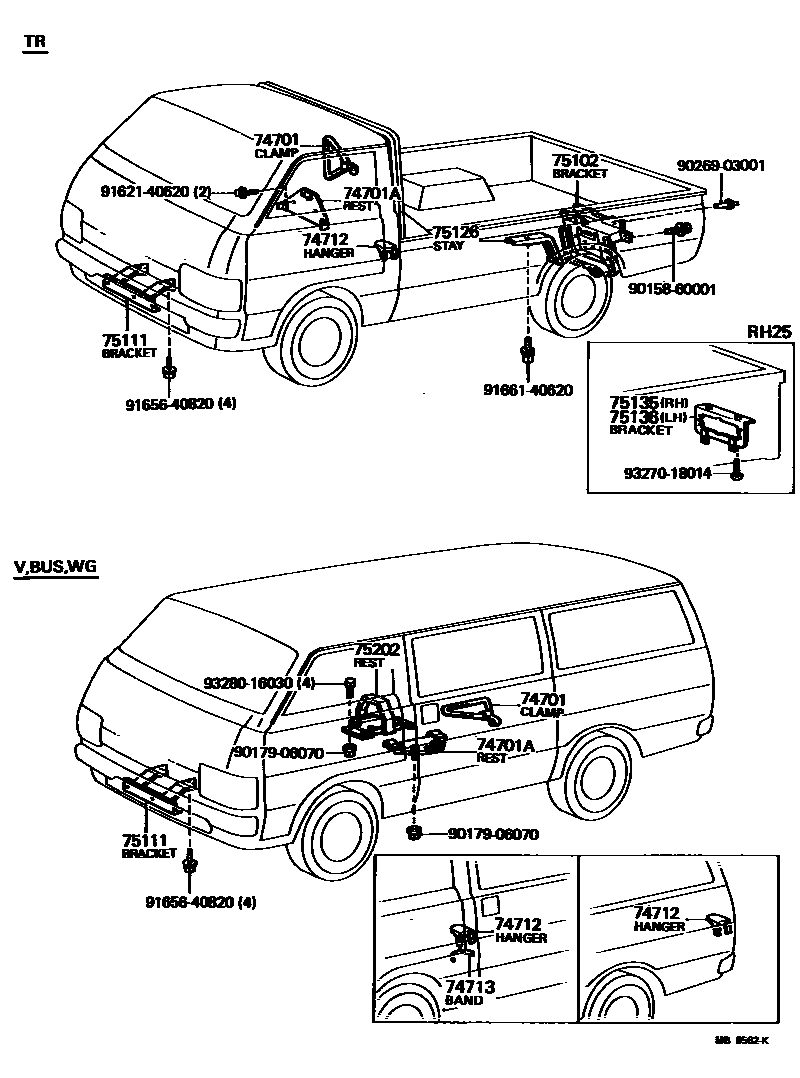

TOOL BOX & LICENSE PLATE BRACKET

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601iLH11,20,30,RH11,2#,3#,42197702-198211

sub58705-95701

74701AREST SUB-ASSY, TOOL BAG

main75203-95A00iRH2#,3#..BUS,WG197702-197912

main75203-95A02iLH11197901-198211

main75203-95A03iLH20,30,RH20,22,3#..BUS,WG197912-198211

74712HANGER, JACK HOLDER

main74711-95A00iLH20,30,RH20,22,3#,42..BUS,V197702-198211

74713BAND, JACK HOLDER

main58795-20011iLH20,30,RH20,32..LHD..EUR197803-198211

WEST GERMANY SPEC

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95016iRH11..T3..(ARL,GEN)197702-198211

main66490-95017iRH11..(T1,TW)..(ARL,GEN)197702-197904

main66490-95018iRH11..(T1,TW)..(ARL,GEN)197904-198211

main66490-95A00iLH11,RH11..T1..EUR197802-197912

main66490-95A01iLH11,RH11..T3..EUR197802-197912

main66490-95A02iLH11,RH11..T3..EUR197912-198211

main66490-95A03iLH11,RH11..(T1,TW)..EUR197912-198211

main66490-95A04iRH25197912-198211

main66492-95A00iRH11..EUR197702-197802

75111BRACKET, FRONT LICENSE PLATE

main52209-95A00iLH30,RH11,20,32..LHD197803-198211

WEST GERMANY SPEC

main75111-95A03iRH22..SA198012-198211

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95011iLH11,RH11197702-197912

main66493-95A02iLH11,RH11..T3..EUR197912-198211

main66493-95A04iRH25197912-198211

main75102-95A00iLH11,RH11..(T1,TW)..EUR197912-198211

75135BRACKET, COMBINATION REAR LAMP, RH

main75130-95A00iRH25197912-198211

75136BRACKET, COMBINATION REAR LAMP, LH

main75140-95A00iRH25197912-198211

75202REST SUB-ASSY, JACK

main75202-95A00iRH2#,3#..BUS,WG197702-197912

main75202-95A02iLH20,30,RH20,22,3#..BUS,WG197912-198211

9015860001

main90158-60001

9017906070

main90179-06070

9026903001

main90269-03001

9162140620

main91621-40620

9165640820

main91656-40820

9166140620

main91661-40620

9327018014

main93270-18014

9328016030

main93280-16030

18 parts on this diagram · 1 diagram in section
