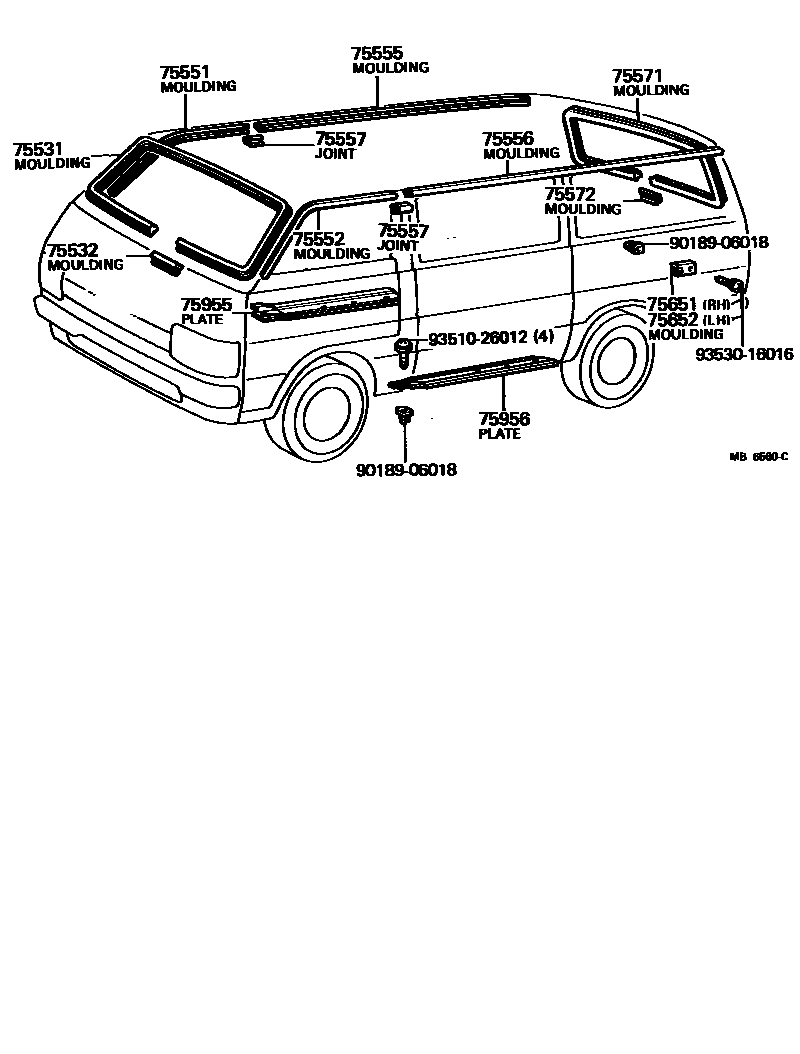

MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-95A00iRH22..SA¥2,910197702-198211

main75531-95A03iLH11,20,30,RH11,2#,3#,42198012-198211

75532MOULDING, WINDSHIELD, LOWER

main75532-95A00iRH22..SA¥400197702-198211

main75532-95A03iLH11,20,30,RH11,2#,3#,42198012-198211

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-95A00iRH2#,3#,42197702-197705

main75551-95A02iLH20,30,RH20,22,3#,42¥2,020197705-198211

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-95A00iRH2#,3#,42197702-197705

main75552-95A02iLH20,30,RH20,22,3#,42197705-198211

75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-90700iRH42¥3,610197702-197705

sub75553-90701

main75553-90701iRH42197705-198211

main75553-95A00iRH2#197702-197705

main75553-95A01iRH3#197702-197705

main75553-95A02iLH20,RH20,22¥2,910197705-198211

sub75553-95A03

main75553-95A03iLH30,RH3#197705-198211

main75553-95A04iRH20..LHD197803-198211

WEST GERMANY SPEC

sub75553-95A05

main75553-95A05iLH30,RH32..LHD198102-198211

WEST GERMANY SPEC

75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-90700iRH42¥3,560197702-197705

sub75554-90701

main75554-90701iRH42197705-198211

main75554-95A00iRH2#197702-197705

main75554-95A01iRH3#197702-197705

main75554-95A02iLH20,RH20,22¥3,350197705-198211

sub75554-95A03

main75554-95A03iLH30,RH3#197705-198211

main75554-95A04iRH20..LHD¥3,350197803-198211

WEST GERMANY SPEC

sub75554-95A05

main75554-95A05iLH30,RH32..LHD198102-198211

WEST GERMANY SPEC

75557JOINT, ROOF DRIP SIDE FINISH MOULDING

main75555-95A00iLH20,30,RH20,22,3#,42¥390197702-198211

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75535-95A00iRH22..SA¥3,210197707-198211

sub75531-95A00¥2,910

75572MOULDING, BACK WINDOW, LOWER

main75532-95A00iRH22..SA¥400197707-198211

75651MOULDING, QUARTER, OUTSIDE RH

main75367-95A00iLH20,30,RH20,22,3#..LHD¥900197702-198211

75652MOULDING, QUARTER, OUTSIDE LH

main75368-95A00iLH20,30,RH20,22,3#,42..RHD¥570197702-198211

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67911-95A00iRH20..09S..EUR¥2,790197702-198211

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67912-95A00iLH20,30,RH20,22,3#..V5D¥1,830197702-198211

9018906018

main90189-06018¥80

9351026012

main93510-26012¥120

9353016016

main93530-16016¥120

16 parts on this diagram · 2 diagrams in section
