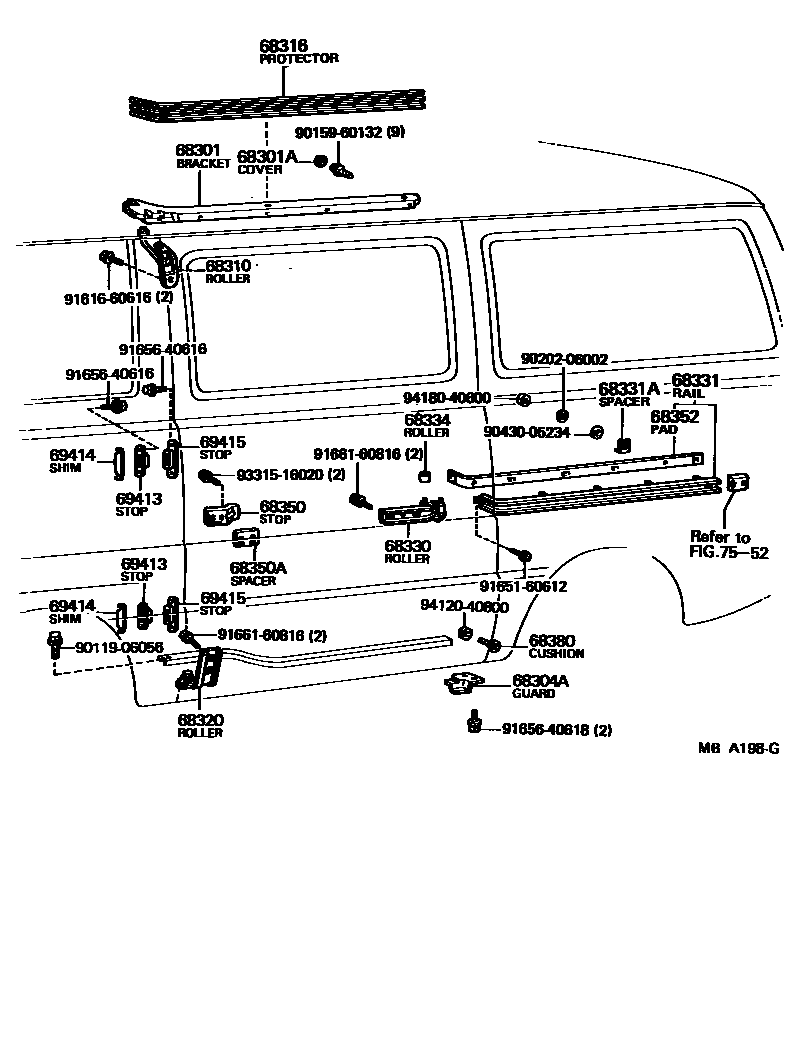

SLIDE ROLLER & RAIL

68301BRACKET SUB-ASSY, SLIDE DOOR UPPER RAIL

main68303-95A00iLH20,30,RH20,22,3#..LHD197702-198211

RH

main68304-95A00iLH20,30,RH20,22,3#,42..RHD197702-198211

LH

main68304-95A01iRH20..RHD..06S..EUR197702-198211

LH,ROOF HEADLINING

main68304-95A02iRH22..SA197707-198211

LH

68301ACOVER, SLIDE DOOR UPPER RAIL

main67847-95A00iRH20..09S..EUR;RH20,22..RHD..(06S,09S)..(EUR,SA)197912-198211

68304AGUARD, SLIDE DOOR LOWER RAIL

main68411-95A00iLH20,30,RH20,22,3#..LHD197702-198211

RH

main68412-95A00iLH20,30,RH20,22,3#,42..RHD197702-198211

LH

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95A00iLH20,30,RH20,22,3#..LHD197702-198012

RH

main68310-95A01iLH20,30,RH20,22,3#..LHD198012-198211

RH

main68320-95A00iLH20,30,RH20,22,3#,42..RHD197702-198012

LH

main68320-95A01iLH20,30,RH20,22,3#,42..RHD198012-198211

LH

68316PROTECTOR, SLIDE DOOR UPPER RAIL

main68337-95A00iRH20..09S..EUR198102-198211

main68338-95A00iRH22..SA197905-198211

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68350-95A00iLH20,30,RH20,22,3#..LHD197702-198012

RH

main68350-95A01iLH20,30,RH20,22,3#..LHD198012-198211

RH

main68360-95A00iLH20,30,RH20,22,3#,42..RHD197702-198012

LH

main68360-95A01iLH20,30,RH20,22,3#,42..RHD198012-198211

LH

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68370-95A00iLH20,30,RH20,22,3#..LHD197702-198211

RH

main68380-95A00iLH20,30,RH20,22,3#,42..RHD197702-198211

LH

68331RAIL, SLIDE DOOR, CENTER

main68301-95A00iLH20,30,RH20,22,3#..LHD197702-198211

RH

main68302-90700iRH42197702-198211

main68302-95A00iLH20,30,RH20,22,3#..RHD197702-198211

LH

68331ASPACER, SLIDE DOOR CENTER RAIL

main68333-95A00iRH3#,42197707-198211

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700iLH20,30,RH20,22,3#,42197702-198211

68350STOPPER ASSY, SLIDE DOOR OPEN

main69405-95A00iLH20,30,RH20,22,3#,42197702-198211

68350ASPACER, SLIDE DOOR OPEN STOPPER

main69411-95A00iLH20,30,RH20,22,3#,42197702-198211

T=1.6

68352PAD, SLIDE DOOR CENTER RAIL

main68367-95A01iLH20,30,RH20,22,3#..LHD198106-198211

RH

main68368-90700iRH42198106-198211

main68368-95A00iLH20,30,RH20,22,3#..RHD198106-198211

LH

68380CUSHION ASSY, SLIDE DOOR

main53382-20011iLH20,30,RH20,22,3#,42197702-198211

sub53382-90A00

69413STOP, SLIDE DOOR DOWN MALE

main69413-95700iLH20,30,RH20,22,3#,42197702-198211

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iLH20,30,RH20,22,3#,42197702-198211

T=1.0

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95A00iLH20,30,RH20,22,3#,42197702-198211

7552

9011906056

main90119-06056

9015960132

main90159-60132

9020206002

main90202-06002

9043005234

main90430-05234

9161660616

main91616-60616

9165160612

main91651-60612

9165640616

main91656-40616

9165640618

main91656-40618

9166160816

main91661-60816

9331516020

main93315-16020

9412040800

main94120-40800

9418040600

main94180-40600

30 parts on this diagram · 1 diagram in section
