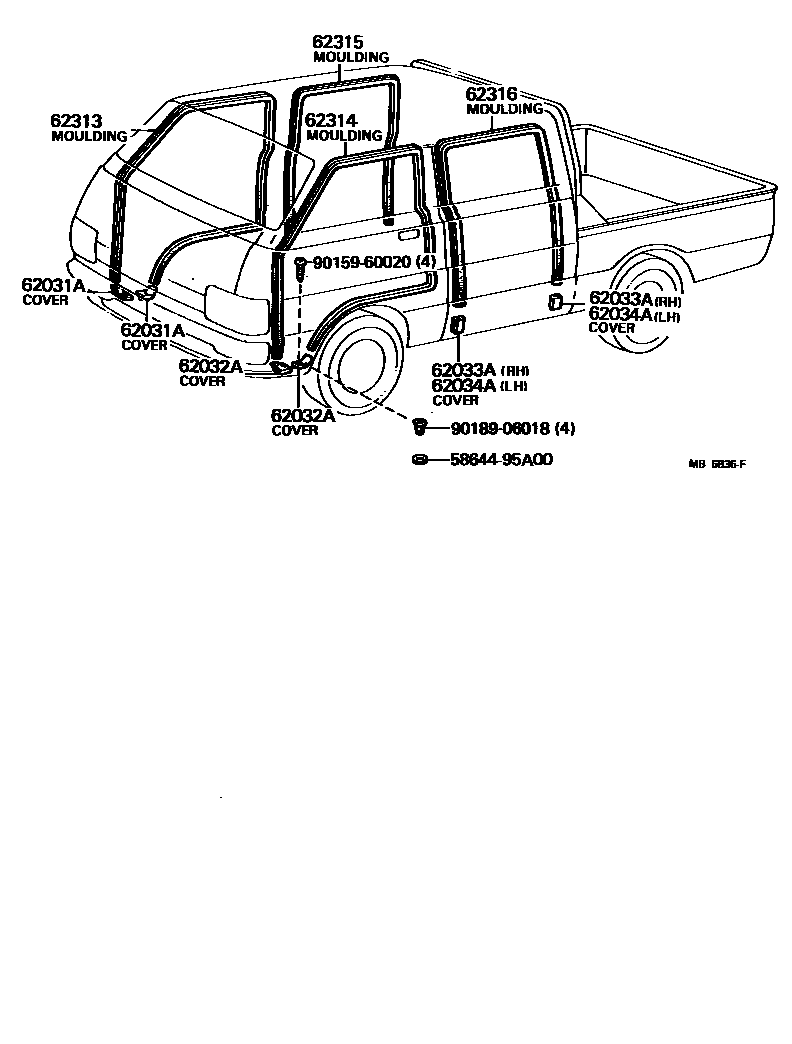

INSIDE TRIM BOARD

0001 1 0002 1

62031ACOVER, FRONT DOOR OPENING, RH

main58621-95A00iLH11,20,30,RH11,20,22,3#,42¥460197702-198211

FR

main58623-95A00iLH11,20,30,RH11,20,22,3#,42¥460197702-198211

RR

62032ACOVER, FRONT DOOR OPENING, LH

main58622-95A00iLH11,20,30,RH11,20,22,3#,42¥430197702-198211

FR

main58624-95A00iLH11,20,30,RH11,20,22,3#,42¥430197702-198211

RR

62033ACOVER, REAR DOOR OPENING, RH

main62314-95A00iRH11..06S197702-198211

62034ACOVER, REAR DOOR OPENING, LH

main62314-95A00iRH11..06S197702-198211

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-95A00iLH11,20,30,RH11,2#,3#,42¥2,950197702-198211

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-95A00iLH11,20,30,RH11,2#,3#,42¥2,950197702-198211

62315MOULDING, REAR DOOR OPENING TRIM, RH

main62346-95A00iRH11..06S197702-198211

62316MOULDING, REAR DOOR OPENING TRIM, LH

main62346-95A00iRH11..06S197702-198211

5864495A00

main58644-95A00¥190

9015960020

main90159-60020¥170

9018906018

main90189-06018¥80

11 parts on this diagram · 2 diagrams in section
