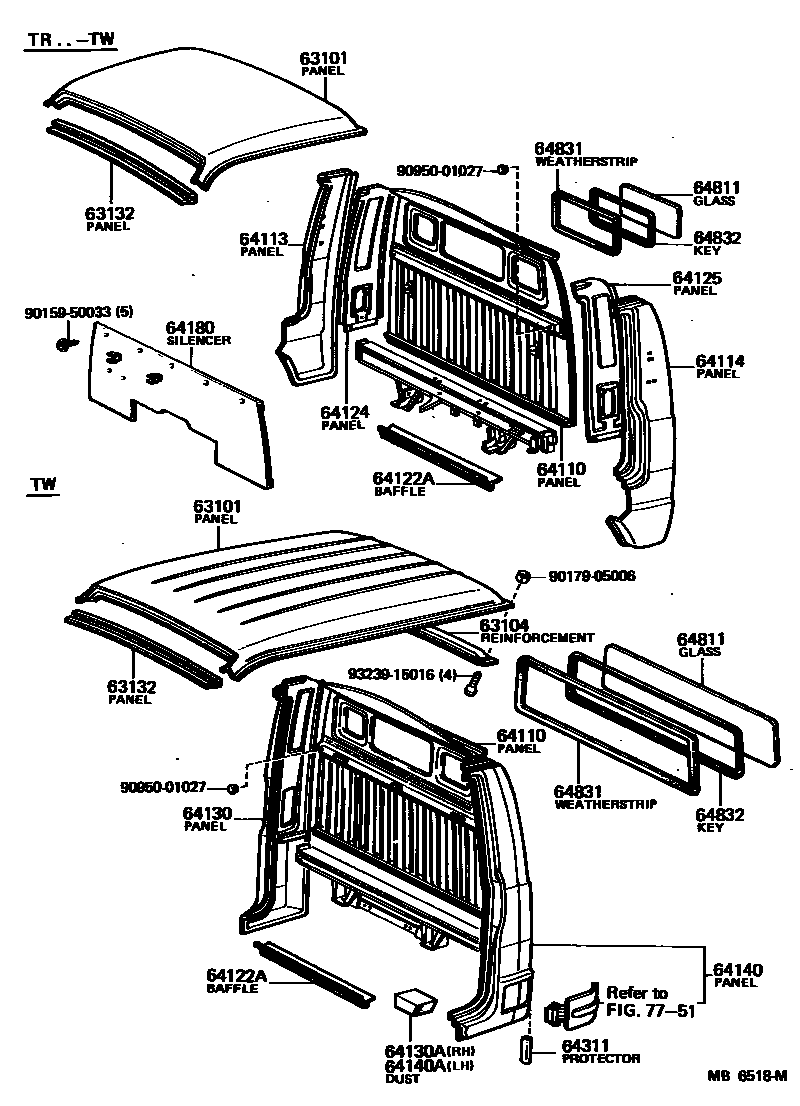

ROOF PANEL & BACK PANEL

0001 1 0002 1

63101PANEL SUB-ASSY, ROOF

main63111-95A00iLH20,RH20,22197702-198211

main63111-95A01iLH30,RH3#197702-198211

main63111-95A02iRH11..06S197702-198211

main63111-95A03iLH11,RH11,25..02S,03S197702-198211

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63102-95A01iRH2#,3#..V..GEN197702-197912

W/O ROOF SILENCER PAD

sub63145-95A00

sub63147-95A00

main63104-95A01iRH11..06S197702-198211

main63145-95A00iLH20,30,RH20,22,3#197702-198211

63132PANEL, WINDSHIELD HEADER, INNER

main63102-90700iRH42197702-198211

main63103-95A01iLH11,20,30,RH11,2#,3#197702-198211

64110PANEL ASSY, FRONT BODY BACK

main64101-95A00iRH11,25..02S,03S197702-198211

main64101-95A01iRH11..06S197702-198211

main64101-95A03iLH11197901-198211

64113PANEL, BACK CORNER, OUTER RH

main64103-95A00iLH11,RH11,25..03S197702-198211

64114PANEL, BACK CORNER, OUTER LH

main64104-95A00iLH11,RH11,25..03S..(ARL,EUR,GEN)197702-198211

sub64104-95A05

64122ABAFFLE, DUST REAR BODY

main64122-95011iRH11..T3197702-197901

main64122-95601iRH11..T1197702-198211

main64122-95A00iLH11,RH11..T1,TW197901-198211

main64122-95A01iLH11,RH11..T3197901-198211

main64122-95A02iRH25197912-198211

64124PANEL, BACK CORNER, INSIDE, RH

main64107-95A02iLH11,RH11,25..03S197702-198211

64125PANEL, BACK CORNER, INSIDE, LH

main64108-95A02iLH11,RH11,25..03S197702-198211

64130PANEL ASSY, BACK CORNER, RH

main64130-95A00iRH11..06S..(EUR,GEN)197702-198211

main64130-95A01iRH11..06S..ARL197702-198211

64130ADUST PROOF, FLOOR SIDE, RH

main58337-95A00iRH11..06S197702-198211

64140PANEL ASSY, BACK CORNER, LH

main64140-95A00iRH11..06S..(EUR,GEN)197702-198211

main64140-95A01iRH11..06S..ARL197702-198211

64140ADUST PROOF, FLOOR SIDE, LH

main58337-95A00iRH11..06S197702-198211

64180SILENCER ASSY, BACK PANEL

main64180-95A00iLH11197901-198211

sub64190-26010

64311PROTECTOR, FUEL INLET

main64311-95A01iRH11..06S197702-198211

FUEL INLET

sub58426-95700

64811GLASS, BACK WINDOW

main64811-95015iLH11,RH11,25..02S,03S197702-198211

*TEM,T=4.0

main64811-95016iRH11..06S197702-198211

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iLH11,RH11,25..02S,03S197702-198211

main64831-95016iRH11..06S197702-198211

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iLH11,RH11,25..02S,03S197702-198211

sub64832-95013

main64832-95013iRH11..06S197702-198211

sub64832-37040

7751

9015950033

main90159-50033

9017905006

main90179-05006

9095001027

main90950-01027

9323915016

main93239-15016

23 parts on this diagram · 2 diagrams in section
