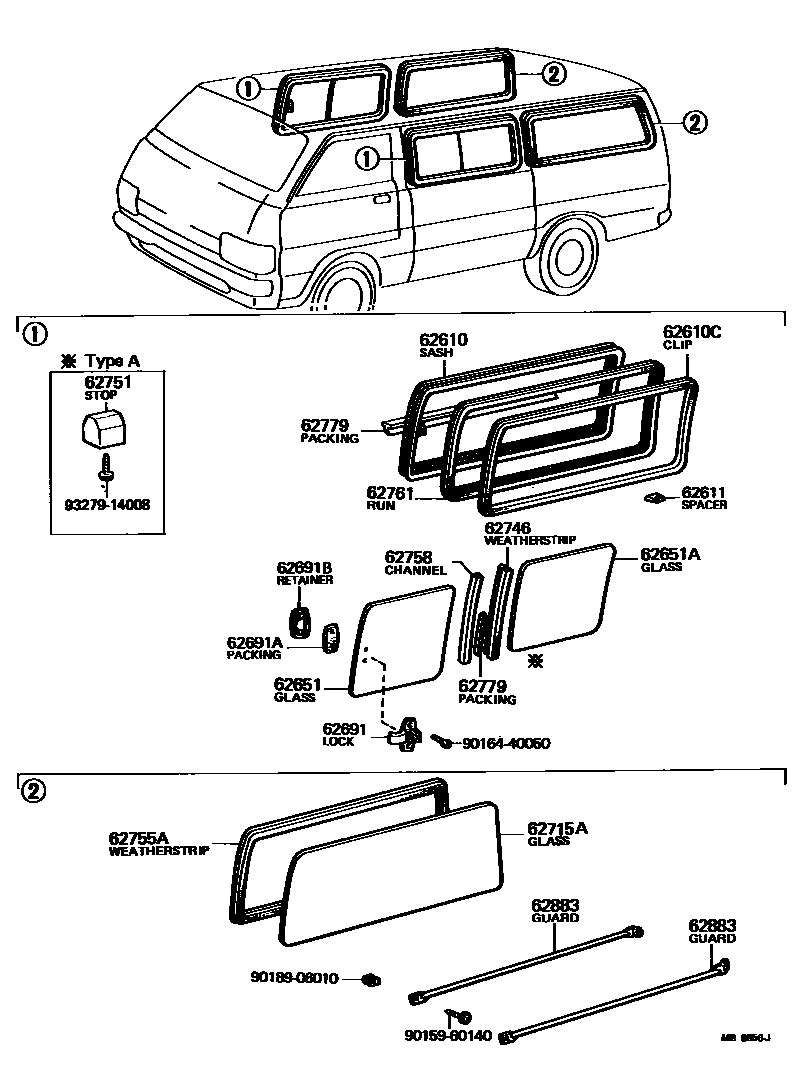

SIDE WINDOW

0001 1 0002 1 0003 1

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62701-90700iRH42197702-198211

RH

main62701-95A00iLH20,30,RH20,22,3#..RHD..V4D..06S197702-198211

RH

main62701-95A01iLH20,30,RH20,22,3#..RHD..(BUS,WG)197702-198012

RH

main62701-95A07iLH20,30,RH20,22,3#..RHD..(BUS,WG)198012-198211

RH

sub62701-95A01

main62702-90700iRH42197702-198211

LH

main62702-95A00iRH20..V5D..03S..EUR197702-198211

LH

main62702-95A01iLH20,30,RH20,22,3#..RHD..(BUS,WG)197702-198012

LH

main62702-95A07iLH20,30,RH20,22,3#..RHD..(BUS,WG)198012-198211

LH

sub62702-95A01

main62705-95A00iRH20,22,3#..RHD..V5D..06S197702-198211

RH

main62705-95A01iLH20,30,RH20,22,3#..LHD..BUS197702-198012

RH

main62705-95A04iLH20,30,RH20,22,3#..LHD..(BUS,WG)198012-198211

RH

sub62705-95A01

main62706-95A00iLH20,30,RH20,22,32..LHD..V4D..06S197702-198211

LH

main62706-95A01iLH20,30,RH20,22,3#..LHD..BUS197702-198012

LH

main62706-95A04iLH20,30,RH20,22,3#..LHD..(BUS,WG)198012-198211

LH

sub62706-95A01

62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)

main62775-90700iRH42197702-198106

QUARTER PANEL

sub62775-90703

main62775-90703iRH42198106-198211

QUARTER PANEL

main62775-95A00iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG197702-198106

SLIDE DOOR

sub62775-95A07

main62775-95A00iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG197702-198106

QUARTER PANEL

sub62775-95A07

main62775-95A07iLH20,30,RH20,22,3#..BUS,WG198106-198109

QUARTER PANEL

main62775-95A07iLH20,30,RH20,22,3#..BUS,WG198106-198109

SLIDE DOOR

main62775-95A09iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG198109-198211

QUARTER PANEL

sub62775-95A07

main62775-95A09iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG198109-198211

SLIDE DOOR

sub62775-95A07

62611SPACER, SIDE WINDOW SUPPORT, NO.1

main62779-95A00iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG197702-198211

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62712-90701iRH42197702-198012

*TEM,T=4.0,RH

sub62712-90700

main62712-90703iRH42198012-198211

*TEM,T=3.5,RH

sub62712-90702

main62712-95A01iLH20,30,RH20,22,3#..RHD..(BUS,WG)197702-198012

*TEM,T=4.0,*TEM,T=4.0,RH

sub62712-95A02

main62712-95A01iRH22..SA198012-198211

*TEM,T=4.0,*TEM,T=4.0,RH,SOUTH AFLICA

sub62712-95A02

main62712-95A05iLH20,30,RH20,22,3#..RHD..(BUS,WG)198012-198211

*TEM,T=3.5,RH

sub62712-95A02

main62722-95A01iLH20,30,RH20,22,3#..RHD..06S197702-198012

*TEM,T=4.0,*TEM,T=4.0,LH

sub62722-95A05

main62722-95A01iRH22..SA198012-198211

*TEM,T=4.0,*TEM,T=4.0,LH,SOUTH AFLICA

sub62722-95A05

main62722-95A05iRH20..V5D..EUR;RH32..LHD..V5D;RH20..V5D..06S..GEN;LH20,30,RH22,30..V5D..06S198012-198211

*TEM,T=3.5,LH

sub62722-95A02

main62752-95A00iLH20,30,RH20,22,3#..LHD..BUS197702-198012

*TEM,T=4.0,*TEM,T=4.0,RH

sub62752-95A02

main62752-95A02iRH20,32..V5D..03S..EUR;LH20,30,RH20,22,3#..LHD..06S198012-198211

*TEM,T=3.5,RH

main62762-95A00iLH20,30,RH20,22,32..LHD..V4D..06S197702-198012

*TEM,T=4.0,*TEM,T=4.0,LH

sub62762-95A02

main62762-95A02iLH20,30,RH20,22,3#..LHD..(BUS,WG)198012-198211

*TEM,T=3.5,LH

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62713-90701iRH42197702-198012

*TEM,T=4.0,RH

sub62713-90703

main62713-90704iRH42198012-198211

*TEM,T=3.5,RH

sub62713-90703

main62713-95A00iRH22..V4D..GEN198012-198211

*TEM,T=4.0,*TEM,T=4.0,RH,SOUTH AFLICA

sub62713-95A08

main62713-95A00iLH20,30,RH20,22,3#..RHD..V4D..06S197702-198012

*TEM,T=4.0,*TEM,T=4.0,RH

sub62713-95A08

main62713-95A02iRH22..SA198012-198211

*TEM,T=4.0,RH,SOUTH AFLICA

sub62713-95A08

main62713-95A02iLH20,30,RH20,22,3#,42..RHD..(BUS,WG)197702-198012

*TEM,T=4.0,RH

sub62713-95A08

main62713-95A06iLH20,RH20,22,3#..RHD..06S198012-198211

*TEM,T=3.5,RH

sub62713-95A08

main62713-95A07iLH20,30,RH20,22,3#,42..RHD..(BUS,WG)198012-198211

*TEM,T=3.5,RH

sub62713-95A08

main62723-95A00iLH20,30,RH20,22,3#..RHD..06S197702-198012

*TEM,T=4.0,*TEM,T=4.0,LH

sub62723-95A06

main62723-95A00iRH22..V4D..GEN198012-198211

*TEM,T=4.0,*TEM,T=4.0,LH,SOUTH AFLICA

sub62723-95A06

main62723-95A02iRH22..SA198012-198211

*TEM,T=4.0,LH,SOUTH AFLICA

sub62723-95A06

main62723-95A02iLH20,30,RH20,22,3#,42..RHD..(BUS,WG)197702-198012

*TEM,T=4.0,LH

sub62723-95A06

main62723-95A06iRH20..V5D..EUR;RH32..LHD..V5D;RH20..V5D..06S..GEN;LH20,30,RH22,30..V5D..06S198012-198211

*TEM,T=3.5,LH

main62723-95A07iLH20,30,RH20,22,3#,42..RHD..(BUS,WG)198012-198211

*TEM,T=3.5,LH

sub62723-95A06

main62753-95A00iRH20,22,3#..RHD..V5D..06S197702-198012

*TEM,T=4.0,*TEM,T=4.0,RH

sub62753-95A06

main62753-95A02iLH20,30,RH20,22,3#..LHD..BUS197702-198012

*TEM,T=4.0,RH

sub62753-95A06

main62753-95A04iRH20,32..V5D..03S..EUR;LH20,30,RH20,22,3#..LHD..06S198012-198211

*TEM,T=3.5,RH

main62753-95A06iLH20,30,RH20,22,3#..LHD..(BUS,WG)198012-198211

*TEM,T=3.5,RH

main62763-95A00iLH20,30,RH20,22,32..LHD..V4D..06S197702-198012

*TEM,T=4.0,*TEM,T=4.0,LH

sub62763-95A04

main62763-95A01iLH20,30,RH20,22,3#..LHD..BUS197702-198012

*TEM,T=4.0,LH

sub62763-95A04

main62763-95A03iLH20,30,RH20,32..LHD..V4D..06S198012-198211

*TEM,T=3.5,LH

sub62763-95A04

main62763-95A04iLH20,30,RH20,22,3#..LHD..(BUS,WG)198012-198211

*TEM,T=3.5,LH

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62791-95A00iRH2#,3#,42..BUS,WG;RH20..V5D..03S..EUR197702-197810

main62791-95A01iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG197810-198012

RR,RH;FR,LH

sub62791-95A02

main62791-95A02iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG198012-198111

RR,RH;FR,LH

sub62910-95702

main62798-95A00iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG197810-198111

RR,LH

sub62798-95A01

main62798-95A00iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG197810-198012

FR,RH

sub62798-95A01

main62798-95A01iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG198012-198111

FR,RH

sub62910-95702

main62910-95702iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG198111-198211

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95A00iLH20,RH20..V5D..4H..03S..EUR197702-198211

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62793-95A00iLH20,RH20..V5D..4H..03S..EUR197702-198211

sub62793-95A01

main62793-95A01iLH20,30,RH20,22,3#,42..BUS,WG198012-198211

sub62793-95704

62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62744-90701iRH42197702-198012

*TEM,T=4.0

sub62744-90703

main62744-90703iRH42198012-198211

*TEM,T=3.5

62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62732-95A00iRH22..V4D..GEN198012-198211

*TEM,T=4.0,RH,SOUTH AFLICA

sub62732-95A11

main62732-95A00iLH20,RH20,22..06S197702-198012

*TEM,T=4.0,RH

sub62732-95A11

main62732-95A04iLH30,RH3#..06S197702-198012

*TEM,T=4.0,*TEM,T=4.0,RH

sub62732-95A12

main62732-95A04iRH32..RHD..06S..GEN198012-198211

*TEM,T=4.0,*TEM,T=4.0,RH,SOUTH AFLICA

sub62732-95A12

main62732-95A11iLH20,RH20,22..06S198012-198211

*TEM,T=3.5,RH

main62732-95A12iLH30,RH3#..06S198012-198211

*TEM,T=3.5,RH

main62742-95A00iLH20,RH20,22..06S197702-198012

*TEM,T=4.0,LH

sub62742-95A12

main62742-95A04iLH30,RH3#..06S197702-198012

*TEM,T=4.0,*TEM,T=4.0,LH

sub62742-95A13

main62742-95A12iLH20,RH20,22..06S198012-198211

*TEM,T=3.5,LH

main62742-95A13iLH30,RH3#..06S198012-198211

*TEM,T=3.5,LH

62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1

main62773-95A00iLH20,30,RH20,22,3#..06S197702-198102

main62773-95A00iRH22..SA198102-198211

SOUTH AFLICA SPEC

main62773-95A02iLH20,30,RH20,22,3#..06S198102-198211

62751STOP, SIDE WINDOW FIX GLASS

main62751-95661iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG197702-198211

TYPE A,12X12X8

main62751-95662iRH20..V5D..03S..EUR;LH20,30,RH20,22,3#,42..BUS,WG197702-198211

TYPE B,20X11X13

62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62735-90700iRH42197702-198012

main62735-90701iRH42198012-198211

62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62778-95A00iLH20,RH20,22..06S197702-198012

main62778-95A01iLH30,RH3#..06S197702-198012

main62778-95A02iLH20,RH20,22..06S198012-198211

main62778-95A03iLH30,RH3#..06S198012-198211

62758CHANNEL, SIDE WINDOW GLASS, NO.1

main62774-95A00iLH20,30,RH20,22,3#..06S197702-198211

62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62714-90700iRH42197702-198012

main62714-90702iRH42198012-198211

main62714-95A00iRH22..V4D..GEN198012-198211

RH,SOUTH AFLICA

main62714-95A00iLH20,30,RH20,22,3#..RHD..V4D..06S197702-198012

RH

main62714-95A01iLH20,30,RH20,22,3#,42..RHD..(BUS,WG)197702-198012

RH

main62714-95A01iRH22..SA198012-198211

RH,SOUTH AFLICA

main62714-95A03iLH20,RH20,22,3#..RHD..06S198012-198211

RH

main62714-95A04iLH20,30,RH20,22,3#..RHD..(BUS,WG)198012-198211

RH

main62724-95A00iRH20..V5D..03S..EUR197702-198012

LH

main62724-95A00iRH22..V4D..GEN198012-198211

LH,SOUTH AFLICA

main62724-95A01iRH22..SA198012-198211

LH,SOUTH AFLICA

main62724-95A01iLH20,30,RH20,22,3#,42..RHD..(BUS,WG)197702-198012

LH

main62724-95A03iLH20,RH20,22,3#..RHD..06S198012-198211

LH

main62724-95A04iLH20,30,RH20,22,3#,42..RHD..(BUS,WG)198012-198211

LH

main62754-95A00iRH20..V5D..03S..EUR197702-198012

RH

main62754-95A01iLH20,30,RH20,22,3#..LHD..BUS197702-198012

RH

main62754-95A02iRH20..V5D..03S..EUR198012-198211

RH

main62754-95A03iLH20,30,RH20,22,3#..LHD..(BUS,WG)198012-198211

RH

main62764-95A00iLH20,30,RH20,22,32..LHD..V4D..06S197702-198012

LH

main62764-95A01iLH20,30,RH20,22,3#..LHD..BUS197702-198012

LH

main62764-95A02iLH20,30,RH20,32..LHD..V4D..06S198012-198211

LH

main62764-95A03iLH20,30,RH20,22,3#..LHD..(BUS,WG)198012-198211

LH

62779PACKING, SIDE WINDOW GLASS, NO.1

main62755-90700iRH42197712-198211

LWR

main62755-95A00iLH20,30,RH20,22,3#..06S197712-198211

LWR

main62757-95A00iLH20,30,RH20,22,3#,42..BUS,WG197912-198211

CTR

62883GUARD ASSY, SIDE WINDOW

main62894-95A00iLH20,RH20,22..06S197702-198211

RH

main62894-95A01iLH30,RH3#..06S197702-198211

RH

main62895-95A00iLH20,RH20,22..06S197702-198211

LH

main62895-95A01iLH30,RH3#..06S197702-198211

LH

9015960140

main90159-60140

9016440050

main90164-40050

9018906010

main90189-06010

9327914008

main93279-14008

22 parts on this diagram · 3 diagrams in section
