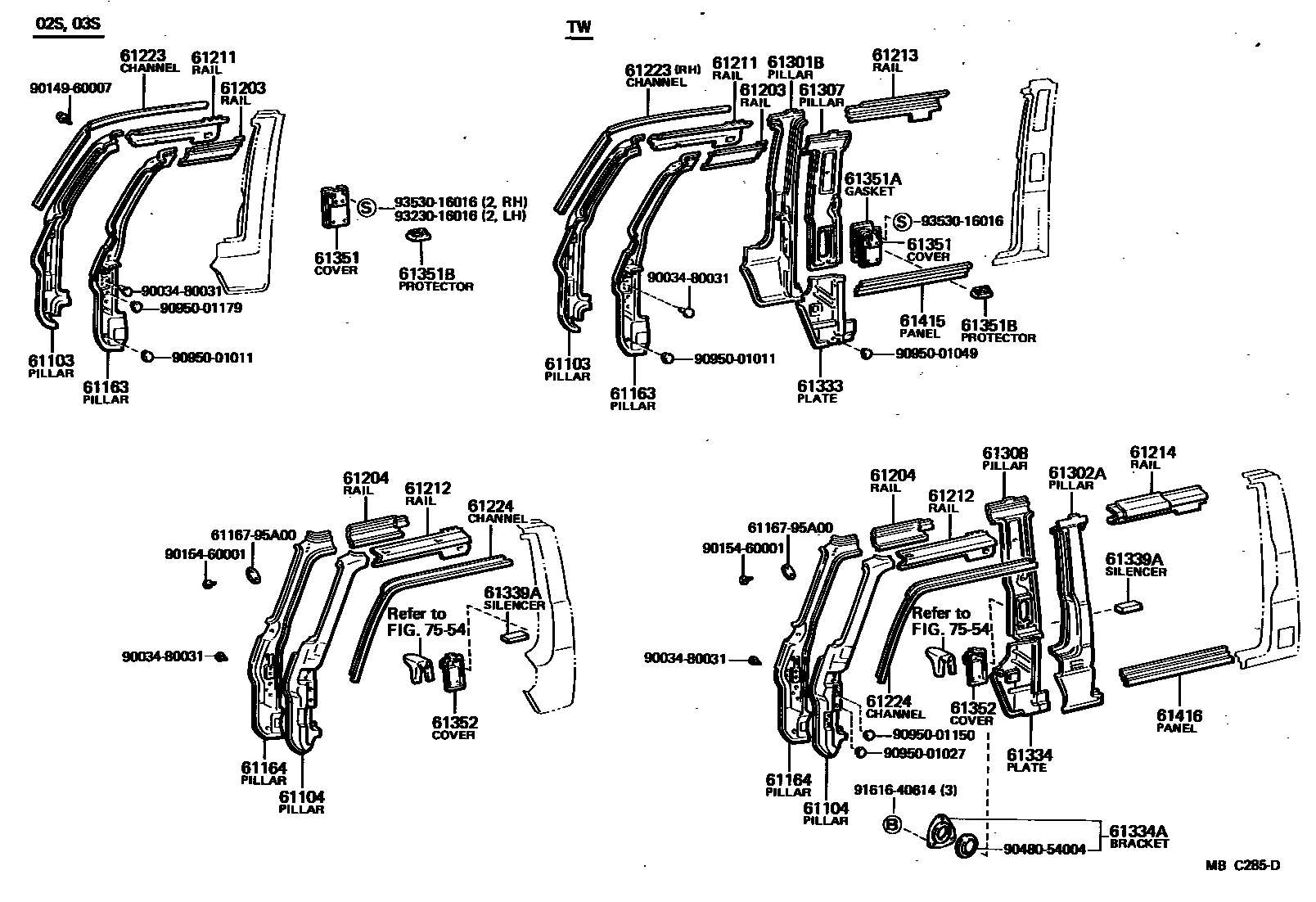

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61103-95A01iLH11,20,30,RH11,2#,3#,42197702-198012

sub61103-95A02

sub84231-14020

sub90560-10022

main61103-95A02iLH11,20,30,RH11,2#,3#,42198012-198211

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61104-95A00iLH20,30,RH11,20,22,3#,42..RHD..(ARL,GEN,IDN,SA)197702-198012

sub61104-95A03

sub84231-14020

sub90560-10022

main61104-95A01iLH11,20,30,RH11,20,25,3#..EUR197702-198012

sub61104-95A04

sub84231-14020

sub90560-10022

main61104-95A03iLH20,30,RH11,20,22,3#,42..RHD..(ARL,GEN,IDN,SA)198012-198211

main61104-95A04iLH11,20,30,RH11,20,25,3#..LHD198012-198211

61163PILLAR, FRONT BODY, INNER RH

main61105-95A00iLH20,30,RH20,22,3#,42..RHD197702-198012

sub61105-95A13

sub90480-40507

main61105-95A05iLH11,RH11..RHD197702-198012

sub61105-95A14

sub90480-40507

main61105-95A07iLH11,RH11,25..LHD197702-198211

sub61105-95A18

sub90480-40507

main61105-95A08iLH20,30,RH20,22,3#..LHD197702-198211

sub61105-95A16

sub90480-40507

main61105-95A10iLH20,30,RH20,22,3#,42..RHD198012-198211

sub61105-95A15

sub90480-40507

main61105-95A12iLH11,RH11..RHD198012-198211

sub61105-95A17

sub90480-40507

61164PILLAR, FRONT BODY, INNER LH

main61106-95A00iLH20,30,RH20,22,3#,42..RHD..(BUS,V)197702-198012

sub61106-95A21

sub90480-40507

main61106-95A01iLH20,30,RH20,22,3#..LHD197702-198012

sub61106-95A22

sub90480-40507

main61106-95A06iLH11,RH11..RHD197702-198012

sub61106-95A23

sub90480-40507

main61106-95A07iLH11,RH11,25..LHD197702-198012

sub61106-95A24

sub90480-40507

main61106-95A15iRH30..V4D..06S..EUR197912-198012

*SUH

sub61106-95A27

sub90480-40507

main61106-95A16iLH20,30,RH20,22,3#,42..RHD198012-198211

sub61106-95A28

sub90480-40507

main61106-95A17iLH20,30,RH20,22,3#..LHD198012-198211

sub61106-95A29

sub90480-40507

main61106-95A19iLH11,RH11..RHD198012-198211

sub61106-95A31

sub90480-40507

main61106-95A20iLH11,RH11,25..LHD198012-198211

sub61106-95A32

sub90480-40507

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61205-95A00iLH11,RH11,25..03S197702-198211

main61231-95A00iLH20,30,RH20,22,3#,42197702-198211

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61206-95A00iLH11,RH11,25..03S197702-198211

main61232-95A00iLH20,30,RH20,22,3#,42197702-198211

61211RAIL, ROOF SIDE, OUTER RH

main61021-95A00iRH11..06S197702-198211

main61201-95A01iLH20,30,RH20,22,3#..RHD..V4D..03S197702-198211

main61211-95A00iLH20,30,RH20,22,3#..LHD197702-198211

main61211-95A01iLH20,30,RH20,22,3#,42..RHD..(BUS,WG)197702-198211

main61211-95A02iLH11,RH11,25..03S197702-198211

61212RAIL, ROOF SIDE, OUTER LH

main61022-95A00iRH11..06S197702-198211

main61202-95A01iLH20,30,RH20,32..LHD..V4D..03S197702-198211

main61212-95A00iLH20,30,RH20,22,3#,42..RHD197702-198211

main61212-95A01iLH20,30,RH20,22,32..LHD..V4D..06S197702-198211

main61212-95A02iLH11,RH11,25..03S197702-198211

61213RAIL, ROOF SIDE, OUTER REAR RH

main61203-95A01iRH11..06S197702-198211

main61203-95A02iLH20,30,RH20,3#..LHD..03S197702-198211

main61213-95A01iLH20,30,RH20,22,3#..LHD..BUS197702-198211

61214RAIL, ROOF SIDE, OUTER REAR LH

main61203-95A01iRH11..06S197702-198211

main61204-95A02iLH20,30,RH20,22,3#..RHD..03S197702-198211

main61214-95A01iLH20,30,RH20,22,3#..RHD..06S197702-198211

61223CHANNEL, ROOF DRIP, FRONT RH

main61261-95A00iLH11,RH11,25..03S197702-198211

main61261-95A01iLH20,30,RH20,22,3#,42197702-198211

main61261-95A02iRH11..06S197702-198211

61224CHANNEL, ROOF DRIP, FRONT LH

main61262-95A00iLH11,RH11,25..03S197702-198211

main61262-95A01iLH20,30,RH20,22,3#,42197702-198211

main61262-95A02iRH11..06S197702-198211

61244REINFORCEMENT, CENTER DOOR PILLAR, UPPER FRONT

61301BPILLAR, CENTER BODY, OUTER RH

main61301-95A00iLH20,30,RH20,22,3#..RHD..V4D197702-198211

main61301-95A01iLH20,30,RH20,22,3#..LHD197702-198012

sub61301-95A06

sub82301-95A10

sub84231-95A02

sub90201-15007

main61301-95A02iRH11..06S197702-198012

main61301-95A05iRH11..06S198012-198211

main61301-95A06iLH20,30,RH20,22,3#..LHD198012-198211

61302APILLAR, CENTER BODY, OUTER LH

main61302-95A00iLH20,30,RH20,22,3#,42..RHD197702-198012

sub61302-95A08

sub82301-95A10

sub84231-95A02

sub90201-15007

main61302-95A01iLH20,30,RH20,22,32..LHD..V4D197702-198012

sub61302-95A10

main61302-95A04iRH11..06S197702-198012

main61302-95A07iRH11..06S198012-198211

main61302-95A08iLH20,30,RH20,22,3#,42..RHD198012-198211

main61302-95A10iLH20,30,RH20,32..LHD..V4D198012-198211

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61303-90700iRH42197702-198211

sub61303-90702

sub90950-01256

main61303-90702iRH42..ARL197702-198211

W/SEAT BELT

main61303-95A07iLH20,30,RH20,22,3#..LHD197702-198211

main61303-95A10iLH20,30,RH20,22,3#..RHD..V4D197702-198211

main61303-95A11iLH20,30,RH20,22,3#..RHD..(BUS,WG)197702-198211

*SUH

main61303-95A12iLH20,30,RH20,22,3#..LHD..BUS197702-198211

main61303-95A13iRH11..06S197702-198211

main61303-95A23iRH20,22,3#..LHD..BUS..GEN197708-198211

W/EXTINGUISHER

main61303-95A23iRH20..RHD..V4D..06S..GEN197909-198211

NEW ZEALAND SPEC

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61304-90700iRH42..GEN197702-198211

W/EXTINGUISHER

main61304-90702iRH42197702-198211

sub61304-90710

sub90950-01256

main61304-90710iRH42..ARL198105-198211

W/*ELR ASSISTANT SIDE

main61304-95A07iLH20,30,RH20,22,32..LHD..V4D197702-198211

main61304-95A10iLH20,30,RH20,22,3#..LHD..V5D197702-198211

main61304-95A11iLH20,30,RH20,22,3#..RHD..(BUS,WG)197702-198211

main61304-95A12iLH20,30,RH20,22,3#..LHD..BUS197702-198211

main61304-95A13iRH11..06S197702-198211

61333PLATE, CENTER PILLAR, RH

main57403-95A00iLH20,30,RH20,22,3#..RHD..V4D197702-198211

main57403-95A01iLH20,30,RH20,22,3#..LHD197702-198211

main58027-95A00iRH11..06S197702-198211

61334PLATE, CENTER PILLAR, LH

main57404-95A00iRH2#..LHD..V4D197702-197912

sub57404-95A07

sub90480-20030

main57404-95A01iLH20,RH2#,3#..RHD..V4D197702-197912

sub57404-95A06

sub90480-20030

main57404-95A02iRH20,22,32,42..ARL197912-198012

sub57404-95A05

sub90480-20030

main57404-95A03iRH20,22,3#,42..RHD..(EUR,GEN,SA)197912-198012

sub57404-95A06

sub90480-20030

main57404-95A04iLH20,30,RH20,22,32..LHD..V4D197912-198012

sub57404-95A07

sub90480-20030

main57404-95A05iLH20,30,RH20,22,32,42..ARL198012-198211

main57404-95A06iLH20,30,RH20,22,3#..V5D198012-198211

sub57404-95A05

main57404-95A07iLH20,30,RH20,32..LHD..V4D198012-198211

main57404-95A08iLH20,30..RHD..(EUR,GEN)198012-198211

main57404-95A09iLH20,30..LHD198012-198211

main58028-95A00iRH11..06S197702-198012

main58028-95A01iRH11..06S198012-198211

61334ABRACKET, AIR CLEANER INLET SEAL

main17780-95A00iLH11198012-198211

61339ASILENCER, PILLAR INNER

main61339-95A00iLH11197901-198101

main61339-95A00iLH11,RH11,25..02S,03S198101-198211

RH

main61339-95A01iRH42198101-198211

RH

main61339-95A01iLH20,30197901-198101

main61339-95A02iLH11,RH11,25..02S,03S198101-198211

LH

main61339-95A03iRH11..06S198101-198211

RH

main61339-95A04iRH11..06S198101-198211

LH

main61339-95A05iRH42198101-198211

LH

61351COVER, CENTER BODY, INNER RH

main61351-95A00iLH30..V4D;LH30..V5D..06S..EUR;RH20..LHD..12S..EUR;LH11,20,RH11,20,3#..(03S,06S)..EUR197702-198012

W/O SEAT BELT

main61351-95A00iLH20,30,RH11,20,22,3#,42..GEN,PHL,SA197702-198211

main61351-95A02iLH20,30,RH11,20,22,32,42..ARL197702-198211

main61351-95A02iRH11,22..RHD197912-198211

NEW ZEALAND SPEC

main61351-95A02iLH20,RH11..GEN198102-198211

PORTUGAL SPEC

main61351-95A02iRH20,22,32..RHD198106-198211

SOUTH AFRICA SPEC

61351AGASKET(FOR CENTER BODY INNER COVER)

main61352-95A00iRH11..06S..GEN197702-198211

main61751-95A00iRH20,22,3#..RHD197912-198211

SOUTH AFRICA SPEC

sub61751-95A01

61351BPROTECTOR(FOR CENTER BODY INNER COVER)

main61353-95A00iRH11,20,22,32,42..ARL197702-198012

SEAT BELT

main61353-95A00iRH11,20..RHD197912-198012

NEW ZEALAND SPEC

main61353-95A00-05iLH20,30,RH11,20,22,32,42..ARL198012-198211

BEIGE

sub61353-95A00

main61353-95A00-05iLH20,30,RH11,20,22,32,42..ARL198012-198211

SEAT BELT,BEIGE

sub61353-95A00

main61353-95A00-06iLH20,RH11,20..RHD198012-198211

NEW ZEALAND SPEC,BROWN

sub61353-95A00

main61353-95A00-06iRH20,22,32..RHD198106-198211

SOUTH AFRICA SPEC,BROWN

sub61353-95A00

61352COVER, CENTER BODY, INNER, LH

main61305-95A04iLH30,RH20,32..LHD..V..EUR197803-198211

WEST GERMANY SPEC

main61351-95A00iLH20,30,RH11,20,22,3#,42..GEN,PHL,SA197702-198211

main61351-95A00iLH30..V4D;LH30..V5D..06S..EUR;RH20..LHD..12S..EUR;LH11,20,RH11,20,3#..(03S,06S)..EUR197702-198012

W/O SEAT BELT

main61351-95A02iLH20,30,RH11,20,22,32,42..ARL197702-198211

main61351-95A02iRH11,22..RHD197912-198211

NEW ZEALAND SPEC

main61351-95A02iLH20,RH11..GEN198102-198211

PORTUGAL SPEC

main61351-95A02iLH20,RH11..GEN198102-198211

WEST GERMANY SPEC

main61351-95A02iRH20,22,32..RHD198106-198211

SOUTH AFRICA SPEC

61415PANEL, ROCKER, REAR RH

main57045-90700iRH42197804-198211

main57045-95A00iLH20,RH20,22197702-198211

main57045-95A01iRH3#,42197702-198211

main58031-95A00iRH11..06S197702-198211

61416PANEL, ROCKER, REAR LH

main57416-90700iRH42197804-198211

main57416-95A00iLH20,RH20,22197702-198211

main57416-95A01iRH3#,42197702-198211

main58032-95A00iRH11..06S197702-198211

7554

6116795A00BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61167-95A00

9003480031

main90034-80031

9014960007

main90149-60007

9015460001

main90154-60001

9048054004

main90480-54004

9095001011

main90950-01011

9095001027

main90950-01027

9095001049

main90950-01049

9095001150

main90950-01150

9095001179

main90950-01179

9161640614

main91616-40614

9323016016

main93230-16016

9353016016

main93530-16016

41 parts on this diagram · 5 diagrams in section
