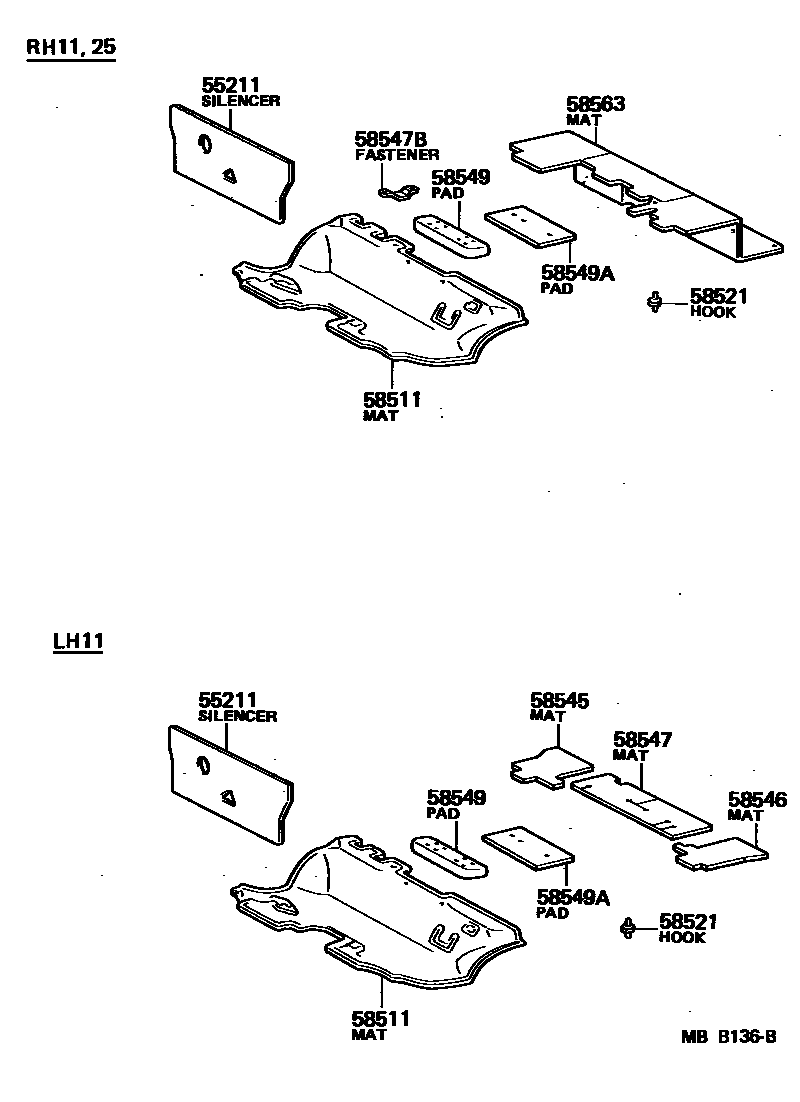

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

55211SILENCER, FRONT PANEL

main55211-95A01iLH11,20,30,RH11,20,25,3#..EUR197912-198211

58511MAT, FLOOR, FRONT

main58501-95A00-05iRH42197702-197912

W/HEATER,BEIGE,BEIGE

main58501-95A00-06iRH11..RHD197702-197912

W/HEATER,BROWN,BROWN

main58501-95A01-05iRH2#,3#..LHD197702-197912

W/HEATER,BEIGE,BEIGE

main58501-95A01-06iRH11..LHD197702-197912

W/HEATER,BROWN,BROWN

main58501-95A02-05iRH2#,3#..RHD..BUS197702-197912

W/HEATER,BEIGE,BEIGE

main58501-95A05-05iRH2#,3#,42..RHD197702-197912

W/O HEATER,BEIGE,BEIGE

main58501-95A05-06iRH11..RHD197702-197912

W/O HEATER,BROWN,BROWN

main58501-95A06-05iRH2#,3#..LHD197702-197912

W/O HEATER,BEIGE,BEIGE

main58501-95A06-06iRH11..LHD197702-197912

W/O HEATER,BROWN,BROWN

main58501-95A10iRH32..V5D..EUR197708-197912

W/HEAD LAMP CLEANER

main58501-95A12-05iLH20,30..LHD197901-197912

BEIGE,BEIGE

main58501-95A12-06iLH11..LHD197901-197912

BROWN,BROWN

main58501-95A13-05iLH20,30..RHD197901-197912

BEIGE,BEIGE

main58501-95A13-06iLH11..RHD197901-197912

BROWN,BROWN

main58501-95A16iRH11,20,22,3#,42..RHD..(ARL,EUR,GEN)197912-198211

W/HEATER OR BOOST BENTILATOR

main58501-95A17iLH11,20,30..RHD..(ARL,EUR,GEN)197912-198211

W/HEATER OR BOOST BENTILATOR

main58501-95A18iRH11..LHD198102-198211

W/HEATER OR BOOST BENTILATOR

main58501-95A19iLH11,20,30..LHD197912-198102

W/HEATER

main58501-95A20iRH11,20,22,3#,42..RHD..(GEN,IDN)197912-198211

W/O HEATER

main58501-95A21iRH11..LHD..GEN198102-198211

W/O HEATER

main58501-95A25iLH11,20,30..LHD..GEN197912-198102

W/O HEATER

main58501-95A26iLH11,20,30..RHD..(GEN,IDN)197912-198211

W/O HEATER

main58501-95A29iRH20,3#..LHD..EUR198012-198102

W/HEAD LAMP CLEANER

main58501-95A37iLH11,20,30..LHD..EUR198006-198102

W/HEAD LAMP CLEANER,FINLAND

main58501-95A44iRH20,22,3#..LHD198102-198211

W/HEATER OR BOOST BENTILATOR

main58501-95A45iRH20,22,3#..LHD..GEN198102-198211

W/O HEATER

main58501-95A46iLH20,30..LHD..GEN198102-198211

W/O HEATER

main58501-95A47iLH20,30..LHD198102-198211

W/HEATER OR BOOST BENTILATOR

main58501-95A48iLH20,30..LHD..EUR198102-198211

W/HEAD LAMP CLEANER,FINLAND

main58501-95A49iRH20,3#..LHD..EUR198102-198211

W/HEAD LAMP CLENER

58521HOOK, MALE, NO.1

main90530-06001iLH11,20,30,RH11,2#,3#,42197702-198211

58545MAT, HEADER PANEL, RH

main58601-95A00iLH11197901-197912

main58601-95A02iLH11197912-198211

58546MAT, HEADER PANEL, LH

main58602-95A00iLH11197901-197912

main58602-95A01iLH11197912-198211

58547MAT, HEADER PANEL, CENTER

main58505-95A00-05iRH2#,3#..RHD..V4D..06S197702-197712

BEIGE,BEIGE

main58505-95A01-05iRH2#,3#..V5D..06S197702-197712

BEIGE,BEIGE

main58505-95A02iRH2#..LHD..V4D..06S197702-197712

BEIGE

main58505-95A03iRH2#,3#,42..RHD..BUS197702-197712

BEIGE

main58505-95A05iRH2#..LHD..BUS197702-197712

BEIGE

main58505-95A09iRH20..LHD..12S..EUR197702-197712

EXTINGUISHER,BEIGE

main58505-95A10iRH20..12S..EUR197702-197912

EXTINGUISHER,BEIGE

main58505-95A15iRH2#,3#,42..RHD..BUS197712-197912

BEIGE

main58505-95A17iRH2#..LHD..BUS197712-197912

BEIGE

main58505-95A19-05iRH2#,3#..06S197712-197912

BEIGE,BEIGE

main58505-95A24iLH20,30..V197901-197912

main58505-95A28iLH11197901-197912

main58505-95A29×2iLH20,30..V5D197901-197912

NORWAY SPEC

main58505-95A30iRH20,22,3#..06S197912-198012

main58505-95A31iRH20,22,3#,42..RHD..BUS197912-198012

main58505-95A36iRH20,22,3#..LHD..BUS197912-198012

main58505-95A37iLH20,30..V197912-198012

main58505-95A40iLH20,30..V5D197912-198012

NORWAY SPEC

main58505-95A41iLH20,30..BUS197912-198012

main58505-95A42iLH11197912-198211

main58505-95A45iLH20,30..BUS197909-197912

main58505-95A62iRH20..09S..EUR198102-198211

main58505-95A63iRH20,22,3#,42..RHD..BUS198012-198211

main58505-95A64iRH20,22,3#..LHD..BUS198012-198211

main58505-95A65iLH20,30..V198012-198211

main58505-95A69iRH20,22,3#..06S198012-198211

main58505-95A70iLH20,30..V5D198012-198211

NORWAY SPEC

main58505-95A71iLH20,30..BUS198012-198211

58547BFASTENER ASSY, HEADER MAT

main58510-95A00iRH2#,3#,42197702-197712

58549PAD, ENGINE CENTER SERVICE HOLE COVER HINGE, FRONT

main58549-95A00-05iLH20,30,RH2#,3#..BUS,V197901-197912

BEIGE,BEIGE

main58549-95A00-06iRH11197709-197912

BROWN,BROWN

main58549-95A01iRH22..SA197709-197912

main58549-95A02-05iRH42197901-197912

BEIGE,BEIGE

main58549-95A02-06iLH11,20,30..03S,06S197901-197912

BROWN,BROWN

main58549-95A04iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V198012-198211

main58549-95A10iRH22..SA198012-198211

58549APAD, ENGINE CENTER SERVICE HOLE COVER HINGE, REAR

main58559-95A00-06iLH11,20,30197901-197912

BROWN

main58559-95A04iLH11,20,30,RH11,20,22,3#,42197912-198211

58563MAT, REAR FLOOR

main58057-95A00iRH20..RHD..06S..EUR198012-198211

main58057-95A03iLH30..RHD..06S197912-198012

main58057-95A05iLH20..LHD..V4D..06S197912-198211

main58057-95A06iRH20..LHD..06S..EUR198012-198211

main58057-95A07iLH30..V5D..06S197912-198211

main58057-95A09iLH30..LHD..V4D..06S197912-198211

main58057-95A12iLH20..LHD..V4D197907-197912

BEIGE

main58057-95A13iLH20..V5D..06S197907-197912

BEIGE

main58057-95A14iLH30..06S197907-197912

BEIGE

main58057-95A15iLH30,RH3#..LHD..15S197912-198009

main58057-95A17iLH30..LHD..V4D..06S197912-198012

STEP COVER,COLD SPEC

main58057-95A18iLH20..V5D..06S..EUR197912-198012

STEP COVER,COLD SPEC

main58057-95A34iLH20,RH20,22..BUS198009-198211

BROWN

main58057-95A35-16iLH30,RH3#..RHD..15S198012-198211

BROWN,BROWN

main58057-95A36iRH20..09S..EUR198102-198211

main58503-95A00-05iRH2#..RHD..V4D..06S197907-197912

BEIGE,BEIGE

main58503-95A01-05iRH2#..RHD..V5D..06S197702-197912

BEIGE,BEIGE

main58503-95A04-05iRH3#..V4D..06S197702-197907

BEIGE,BEIGE

main58503-95A05iRH2#..LHD..V4D..06S197702-197907

BEIGE

main58503-95A06-05iRH3#..RHD..V5D..06S197702-197912

BEIGE,BEIGE

main58503-95A07iRH2#..LHD..V5D..06S197702-197907

BEIGE

main58503-95A08iRH3#..LHD..06S197702-197801

BEIGE

main58503-95A10iRH11..RHD..06S197702-197712

main58503-95A18iRH11..LHD..06S197702-197712

main58503-95A31-05iRH2#..BUS197702-197912

BEIGE,BEIGE

main58503-95A33-05iRH3#..BUS;RH30..PHL197801-197912

BEIGE,BEIGE

main58503-95A35iRH11..RHD..06S197712-197912

main58503-95A36iRH11..LHD..06S197712-197912

main58503-95A46iRH11..RHD..06S197912-198211

main58503-95A47iRH11..LHD..06S197912-198211

main58503-95A50iRH20,22..RHD..V4D..06S197912-198012

main58503-95A51iRH20,22..RHD..V5D..06S197912-198012

sub58057-95A01

main58503-95A54iRH3#..RHD..V4D..06S197912-198211

main58503-95A55iRH3#..RHD..V5D..06S197912-198012

sub58057-95A04

main58503-95A56-16iLH30,RH3#..RHD..BUS197912-198012

BROWN,BROWN

main58503-95A58-16iLH20,RH20,22..03S197912-198211

HARD BOARD,BROWN,BROWN

main58503-95A65iRH20,22..LHD..V4D..06S197912-198012

main58503-95A66iRH20,22..LHD..V5D..06S197912-198012

main58503-95A67iRH3#..LHD..V5D..06S197912-198211

main58503-95A73iLH30..V5D..06S..EUR197912-198012

STEP COVER,COLD SPEC

main58503-95A75iRH32..LHD..V4D..06S197912-198211

main58503-95A85-05iLH20..RHD..V4D197907-197912

BEIGE,BEIGE

main58516-90700iRH42197702-197912

main58516-90702iRH42197912-198211

10 parts on this diagram · 7 diagrams in section
