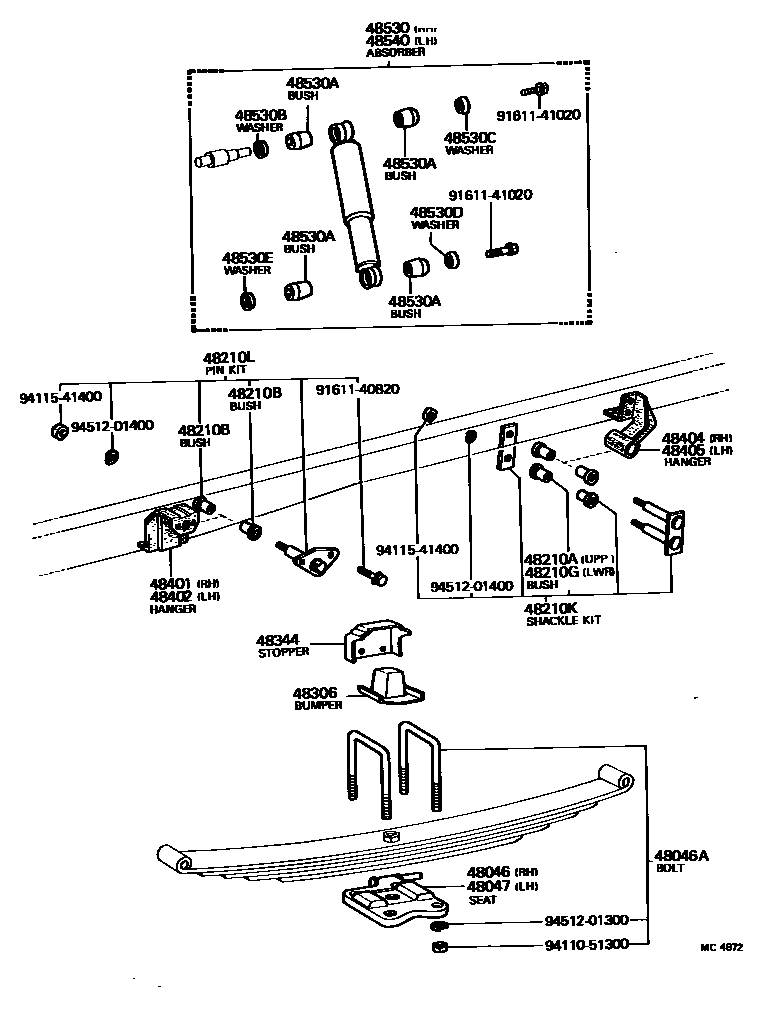

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26012iLH11,RH11,25197702-198211

main48046-26023iLH20,30,RH20,22,3#,42197702-198211

48046ABOLT, U(FOR REAR SPRING)

main90118-13103iLH20,30,RH20,22,3#,42..BUS,V197702-198211

sub90117-13063

main90118-13152iRH22..SA197707-198211

sub90118-13218

main90118-13153iLH11,RH11,25197702-198211

sub90999-99006

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-26012iLH11,RH11,25197702-198211

main48047-26023iLH20,30,RH20,22,3#,42197702-198211

48210SPRING ASSY, REAR RH

main48210-26060iLH11,RH11,25197702-198211

main48210-26070iLH20,RH2#..BUS,V197702-197912

sub48210-26200

sub91611-40820

main48210-26071iLH20,RH20,22..BUS,V197912-198008

sub48210-26072

main48210-26072iLH20,RH20,22..BUS,V198008-198012

main48210-26080iLH30,RH30,42197702-197912

main48210-26081iRH32..ARL,GEN197912-198012

sub48210-26072

main48210-26100iRH22..SA197707-197912

main48210-26120iRH32..EUR197709-197912

main48210-26121iRH32..EUR197912-198211

sub48210-26150

main48210-26130iRH22..SA197912-198012

main48210-26150iLH20,RH20,22..BUS,V198012-198211

main48210-26160iRH42198012-198211

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18046iLH11,20,30,RH11,2#,3#,42197702-198211

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046iLH11,RH11,25197702-198211

main90385-18058iLH20,30,RH2#,3#,42197702-197912

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046iLH11,RH11,25197702-198211

main90385-18058iLH20,30,RH2#,3#,42197702-197912

48210KSHACKLE KIT, REAR SPRING

main04483-26010iLH11,RH11,25197702-198211

sub04483-35040

main04483-26020iLH20,30,RH2#,3#,42197702-197912

main04483-26021iLH20,30,RH20,22,3#,42197912-198211

main04483-26040iLH20,30,RH20,3#..RHD..EUR198010-198211

ISLAND SPEC,RH

main04483-26050iLH20,30,RH20,3#..RHD..EUR198010-198211

ISLAND SPEC,LH

48210LPIN KIT, REAR SPRING

main04484-26021iLH20,30,RH2#,3#,42197702-197912

main04484-27010iLH11,RH11,25197702-198211

sub04482-35030

48306BUMPER SUB-ASSY, REAR SPRING

main48306-26011iLH11,RH11,25197702-198211

main48306-26030iLH20,30,RH20,22,3#,42197702-198211

48344STOPPER, BUMPER, REAR

main48344-25010iLH11,RH11,25197702-198211

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-26011iLH11,RH11,25197702-198211

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-26011iLH11,RH11,25197702-198211

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-26011iLH11,RH11,25197702-198211

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48417-26011iLH11,RH11,25197702-198211

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29385iLH11,20,30,RH11,2#,3#,42..BUS,TR,V197702-198211

sub48531-29018

main48531-29465iRH22..SA197707-198211

sub48531-29466

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iLH11,20,30,RH11,2#,3#,42197702-198211

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03012iLH11,20,30,RH11,2#,3#,42197702-198211

OD=34,ID=11,T=4.3

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLH11,20,30,RH11,2#,3#,42197702-198211

OD=34,ID=17,T=3.7

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012iLH11,20,30,RH11,2#,3#,42197702-198211

OD=34,ID=11,T=4.3

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iLH11,20,30,RH11,2#,3#,42197702-198211

OD=34,ID=17,T=3.7

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29385iLH11,20,30,RH11,2#,3#,42..BUS,TR,V197702-198211

sub48531-29018

main48531-29465iRH22..SA197707-198211

sub48531-29466

9161140820

main91611-40820

9161141020

main91611-41020

9411051300

main94110-51300

9411541400

main94115-41400

9451201300

main94512-01300

9451201400

main94512-01400

28 parts on this diagram · 4 diagrams in section
