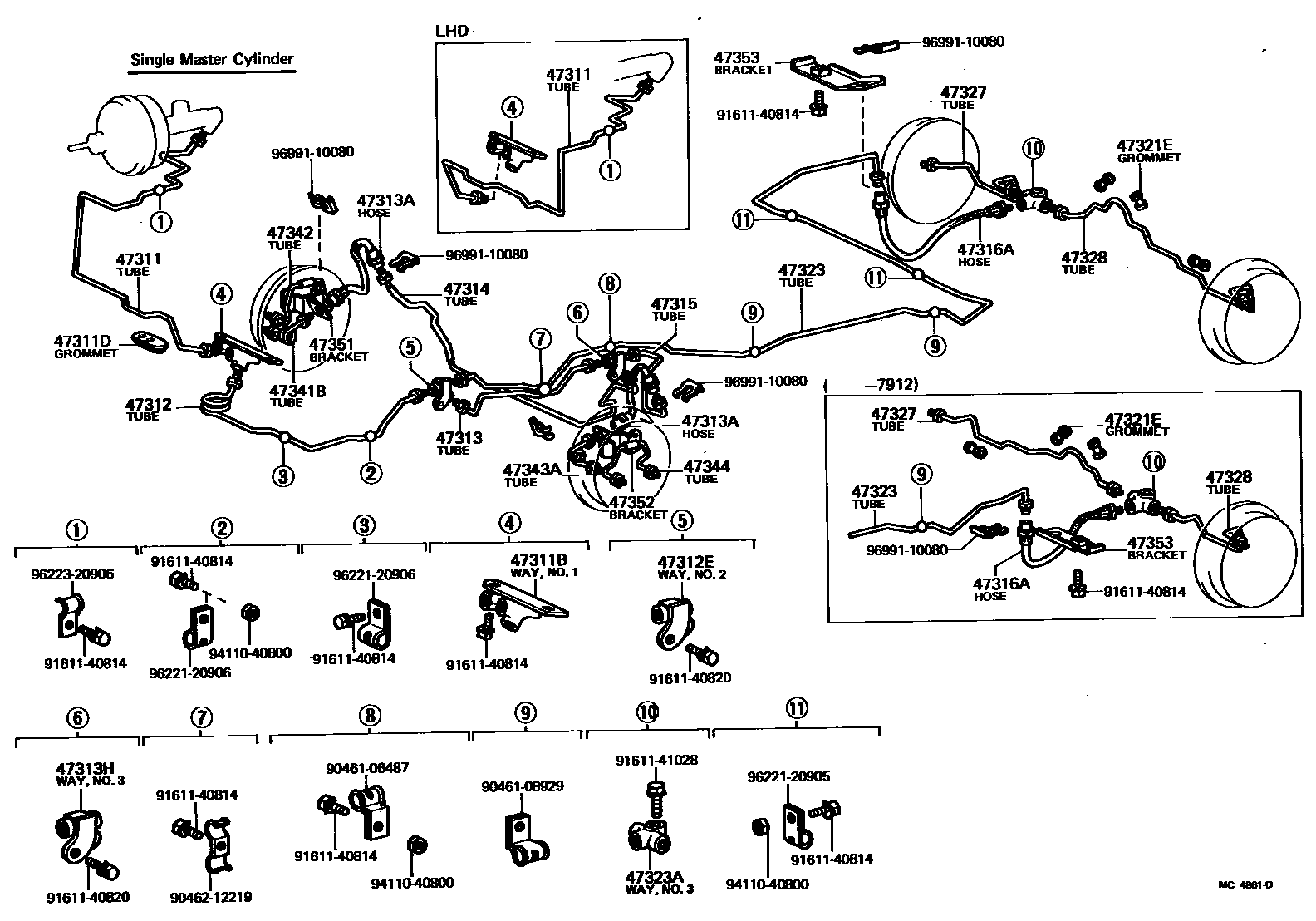

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26090iLH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA)197702-198211

TANDEM MASTER CYLINDER

main47311-26100iLH20,30,RH11,20,22,3#,42..RHD..(GEN,IDN)197702-198211

SINGLE MASTER CYLINDER

main47311-26110iLH11,20,30,RH11,20,22,3#..LHD197702-198211

TANDEM MASTER CYLINDER

sub47311-26130

main47311-26120iLH11,RH11,20,22,3#..LHD..GEN197702-198211

SINGLE MASTER CYLINDER

main47311-26130iRH32..V5D..EUR197707-198211

SWEDEN SPEC

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10028iLH11,RH11,25..ARL,EUR,GEN197702-198211

TANDEM MASTER CYLINDER

main90412-10029iLH20,30,RH20,22,3#,42197702-198211

TANDEM MASTER CYLINDER

sub90412-10105

main90412-12002iLH11,RH11..GEN,IDN197702-198211

SINGLE MASTER CYLINDER

main90413-10032iLH20,30,RH20,22,3#,42..GEN197702-198211

SINGLE MASTER CYLINDER

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-01029iLH11,RH11,20,22,3#,42..GEN,IDN197702-198211

SINGLE MASTER CYLINDER

main90480-01030iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197702-198211

TANDEM MASTER CYLINDER

47312TUBE, FRONT BRAKE, NO.2

main47312-26090iLH11,RH11..ARL,EUR,GEN197702-198211

TANDEM MASTER CYLINDER

main47312-26100iLH11,RH11..GEN,IDN197702-198211

SINGLE MASTER CYLINDER

main47312-26110iLH20,30,RH20,22,3#,42197702-198211

TANDEM MASTER CYLINDER

sub47312-26130

main47312-26120iLH20,30,RH20,22,3#,42..GEN197702-198211

SINGLE MASTER CYLINDER

main47312-26130iRH32..V5D..EUR197707-198211

SWEDEN SPEC

main47312-26151iRH25197912-198211

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10011iLH11,RH11..GEN,IDN197702-198211

SINGLE MASTER CYLINDER

47313TUBE, FRONT BRAKE, NO.3

main47315-26030iLH11,RH11..GEN,IDN197702-198211

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02348iRH32..RHD..EUR;RH32..LHD..06S..EUR;RH32..V5D..03S..EUR;LH11,20,30,RH11,2#,30..EUR,SA197702-198211

FR DISC BRAKE

main90947-02348iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

main90947-02350iLH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,IDN,PHL197702-198211

FR DRUM BRAKE

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10013iLH11,RH11197702-198211

main90413-10030iLH20,30,RH20,22,3#,42197702-198211

main90414-10007iRH25197912-198211

47314TUBE, FRONT BRAKE, NO.4

main47313-26030iLH11,RH11197702-198211

main47313-26040iLH20,30,RH20,22,3#,42197702-198211

sub47313-26050

main47313-26050iRH32..V5D..EUR197707-198211

SWEDEN SPEC

main47313-26070iRH25197912-198211

47315TUBE, FRONT BRAKE, NO.5

main47314-26030iLH11,RH11197702-198211

main47314-26040iLH20,30,RH20,22,3#,42197702-198012

sub47314-26050

main47314-26041iLH20,30,RH20,22,3#,42198012-198211

sub47314-26051

main47314-26050iRH32..V5D..EUR197707-198012

SWEDEN SPEC

main47314-26051iRH32..V5D..EUR198012-198211

SWEDEN SPEC

main47314-26060iRH25197912-198211

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96910-31363iLH20,RH11,2#,3#,42197702-197902

sub96910-33605

main96910-31383iLH11197901-197902

sub96910-33805

main96910-33605iLH20,30,RH20,22,3#,42197902-198211

main96910-33805iLH11197902-198211

47321TUBE, REAR BRAKE, NO.1

main47321-26020iLH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA)197702-198211

TANDEM MASTER CYLINDER

main47321-26030iLH11,20,30,RH11,20,22,3#..LHD197702-198211

TANDEM MASTER CYLINDER

sub47321-26040

main47321-26040iRH32..V5D..EUR197707-198211

SWEDEN SPEC

47321EGROMMET(FOR REAR BRAKE TUBE)

main90480-08343iLH11,20,30,RH11,2#,3#,42197702-198211

47323TUBE, REAR BRAKE, NO.3

main47322-26030iRH11..GEN,IDN197702-197912

W/O LSPV

main47322-26060iLH11,RH11..GEN,IDN197912-198211

W/O LSPV

main47323-26010iLH11,RH11..ARL,EUR,GEN197702-198211

W/LSPV

main47323-26020iLH20,RH20,22197702-198211

W/LSPV

main47323-26030iLH20,RH20,22..GEN197702-198211

W/O LSPV

main47323-26040iLH30,RH3#197702-198211

W/LSPV

sub47323-26080

main47323-26050iLH30,RH3#..GEN197702-198211

W/O LSPV

main47323-26060iRH42197702-198112

W/O LSPV

main47323-26070iRH42197702-198211

W/LSPV

main47323-26080iRH32..V5D..EUR197707-198211

SWEDEN SPEC

main47323-26111iRH25197912-198211

47323AWAY, NO.3(FOR REAR BRAKE TUBE)

main90413-10031iLH11,20,30,RH11,2#,3#,42197702-198211

47327TUBE, REAR BRAKE, NO.7

main47318-26021iRH11197702-197912

main47325-26030iLH20,30,RH20,22,3#,42197702-198012

sub47325-26040

main47325-26040iRH32..V5D..EUR197707-198012

SWEDEN SPEC

main47325-26050iLH11197901-198211

sub47325-26080

main47325-26080iRH25197912-198211

main47325-26090iLH20,30,RH20,22,3#,42198012-198211

sub47325-26110

main47325-26110iRH32..V5D..EUR198012-198211

SWEDEN SPEC

47328TUBE, REAR BRAKE, NO.8

main47319-26011iRH11197702-197912

main47326-26010iLH20,30,RH20,22,3#,42197702-198012

sub47326-26020

main47326-26020iRH32..V5D..EUR197707-198012

SWEDEN SPEC

main47326-26030iLH11197901-198211

sub47326-26060

main47326-26060iRH25197912-198211

main47326-26070iLH20,30,RH20,22,3#,42198012-198211

sub47326-26090

main47326-26090iRH32..V5D..EUR198012-198211

SWEDEN SPEC

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-26010iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26010iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-26010iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26030iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main47351-26040iRH11,20,3#..EUR;RH22..RHD..09S..GEN197702-197810

FR DISC BRAKE

sub47351-26042

main47351-26042iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

main47351-26042iLH11,20,30,RH11,20,25,3#..EUR197810-198211

FR DISC BRAKE

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26030iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

FR DRUM BRAKE

main47352-26040iRH11,20,3#..EUR;RH22..RHD..09S..GEN197702-197810

FR DISC BRAKE

sub47352-26042

main47352-26042iLH11,20,30,RH11,2#,3#,42..ARL,EUR197810-198211

FR DISC BRAKE

main47352-26042iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47355-26010iRH11197702-197912

main47355-26020iLH20,30,RH20,22,3#,42197702-198211

main47355-26030iLH11,RH11,25197901-198211

9046106487

main90461-06487

9046108929

main90461-08929

9046212219

main90462-12219

9161140814

main91611-40814

9161140820

main91611-40820

9161141028

main91611-41028

9411040800

main94110-40800

9622120905

main96221-20905

9622120906

main96221-20906

9622320906

main96223-20906

9699110080

main96991-10080

35 parts on this diagram · 6 diagrams in section
