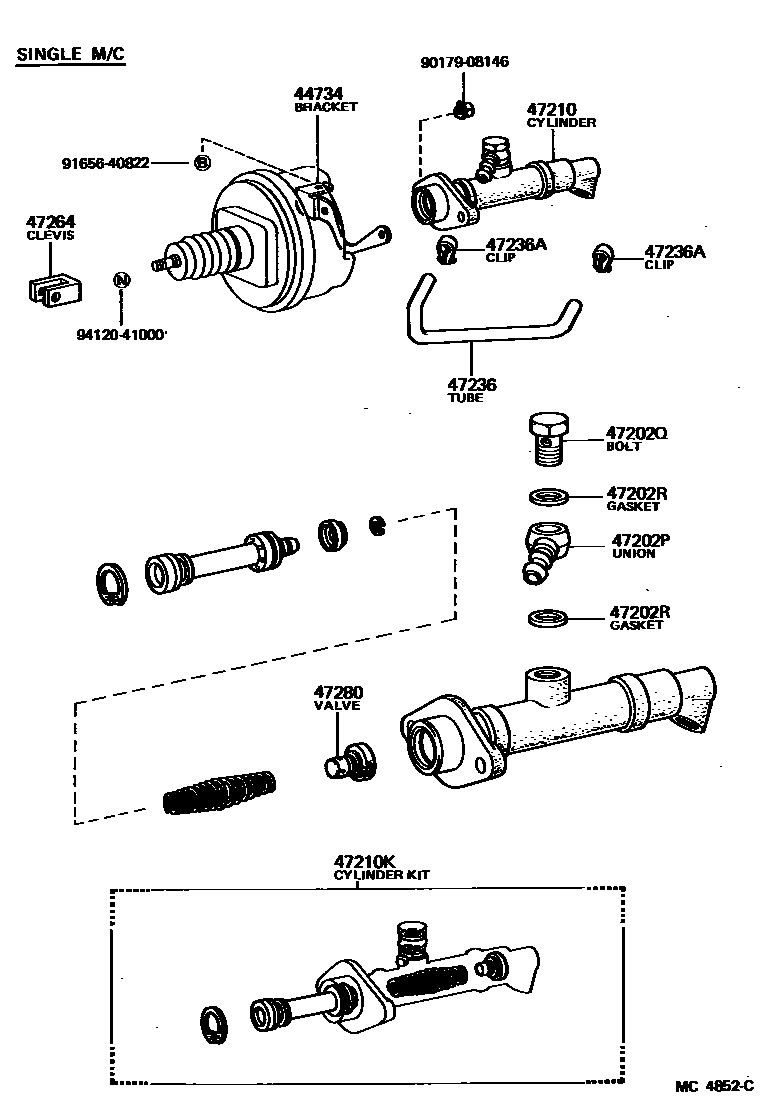

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

44734BRACKET, BOOSTER SUPPORT OR ROD SUPPORT

main44734-26010iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197705-198211

TANDEM M/C

main44734-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197705-198211

SINGLE M/C

main55175-95A00iRH11,2#,3#,42..ARL,EUR,GEN197702-197705

TANDEM M/C

main55175-95A01iRH11,2#,3#,42197702-197705

SINGLE M/C

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-25012iRH22..V4D..GEN198202-198211

main47220-25022iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V198202-198211

SINGLE M/C

main47220-26020iRH11,2#,32,42..ARL197702-197806

TANDEM M/C,W/LEVEL WARNING

sub47220-26021

main47220-26021iRH11,20..EUR197702-197903

sub47220-26022

main47220-26021iRH11,2#,32,42..ARL197806-197903

TANDEM M/C,W/LEVEL WARNING

sub47220-26022

main47220-26022iLH11,20,30,RH11,20,3#..EUR197903-198012

sub47220-26023

main47220-26022iRH11,2#,32,42..ARL197903-197904

TANDEM M/C,W/LEVEL WARNING

sub47220-26023

main47220-26024iLH11,20,30,RH11,20,3#..EUR198012-198202

sub47220-25012

main47220-26030iRH11,2#,3#,42..BUS,TR,V197702-197806

SINGLE M/C

sub47220-26031

main47220-26031iRH11,2#,3#,42..BUS,TR,V197806-197903

SINGLE M/C

sub47220-26032

main47220-26032iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197903-198012

SINGLE M/C

sub47220-26033

main47220-26034iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V198012-198202

SINGLE M/C

sub47220-25022

main47220-26040iRH11,2#,3#,42..EUR,GEN,PHL,SA197702-197806

TANDEM M/C

sub47220-26041

main47220-26041iRH11,2#,3#,42..EUR,GEN,PHL,SA197806-197903

TANDEM M/C

main47220-26042iRH32..V5D..EUR197903-198012

TANDEM M/C

sub47220-26043

main47220-26044iRH25198012-198211

TANDEM M/C

main47220-26044iLH11,20,30,RH11,20,22,3#,42..GEN,IDN198206-198211

main47220-26060iLH20,30,RH11,20,22,32,42..ARL198112-198211

FR DISC BRAKE

main47220-36020iRH11,20,22,32,42..ARL197904-198012

sub47220-36021

main47220-36021iLH20,30,RH11,20,22,32,42..ARL198012-198211

FR DRUM BRAKE

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-13137iLH11,20,30,RH11,2#,3#,42197702-198211

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iLH11,20,30,RH11,2#,3#,42197702-198211

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iLH11,20,30,RH11,2#,3#,42197702-198211

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-26070iLH20,30,RH11,2#,3#,42..ARL,GEN,IDN,PHL,SA197702-198211

FR DRUM BRAKE,TANDEM M/C

main47201-26080iRH11,20,3#..EUR197702-197912

FR DRUM BRAKE,TANDEM M/C

main47201-26090iRH32..V5D..EUR197702-198211

FR DISC BRAKE,TANDEM M/C

main47201-26100iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

SINGLE M/C

main47201-26110iRH11,20..LHD197803-197912

WEST GERMANY SPEC

main47201-26110iLH11,20..EUR197702-198211

FR DISC BRAKE

main47201-26110iLH11,20..LHD..(03S,06S)..GEN198107-198211

FR DISC BRAKE,PORTUGAL SPEC

47210KCYLINDER KIT, BRAKE MASTER

main04471-26020iLH11,20,30,RH11,20,22,3#,42..BUS,TR,V197702-198211

SINGLE M/C

main04493-26030iLH11,20,30197702-198211

FR DRUM BRAKE,TANDEM M/C

main04493-26040iRH11,20,3#..EUR197702-197912

FR DRUM BRAKE,TANDEM M/C

main04493-26050iRH25197912-198211

FR DRUM BRAKE,TANDEM M/C

main04493-26060iLH11,20,30,RH11,20,25,3#..EUR197702-198211

FR DISC BRAKE,TANDEM M/C

main04493-26060iLH11,20..LHD..(03S,06S)..GEN198107-198211

TANDEM M/C,PORTUGAL SPEC

47236TUBE, RESERVOIR BRAKE

main47234-26030iLH11,20,30,RH11,2#,3#,42..RHD..(ARL,EUR,GEN,SA)197702-197912

TANDEM M/C

main47234-26031iLH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA)197912-198211

TANDEM M/C

main47234-26040iLH11,20,30,RH11,2#,3#..LHD197702-197912

TANDEM M/C

main47234-26041iLH11,20,30,RH11,2#,3#..LHD197912-198211

TANDEM M/C

main47236-26050iRH11,2#,3#,42..RHD197702-197912

SINGLE M/C

main47236-26051iLH20,30,RH11,20,22,3#,42..RHD..(GEN,IDN)197912-198211

SINGLE M/C

main47236-26060iRH11,2#,3#..LHD..GEN197702-197912

SINGLE M/C

main47236-26061iLH11,20,30,RH11,20,22,3#..LHD..GEN197912-198211

SINGLE M/C

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16141iLH11,20,30,RH11,2#,3#,42197702-198211

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-26020iLH11,20,30,RH11,2#,3#,42197702-198211

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-26020iLH11,20,30,RH11,20,22,3#,42..GEN,IDN,PHL,SA197702-198211

SINGLE M/C

main47281-30020iLH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,PHL,SA197702-198211

TANDEM M/C

9017908146

main90179-08146

9165640822

main91656-40822

9412041000

main94120-41000

14 parts on this diagram · 4 diagrams in section
