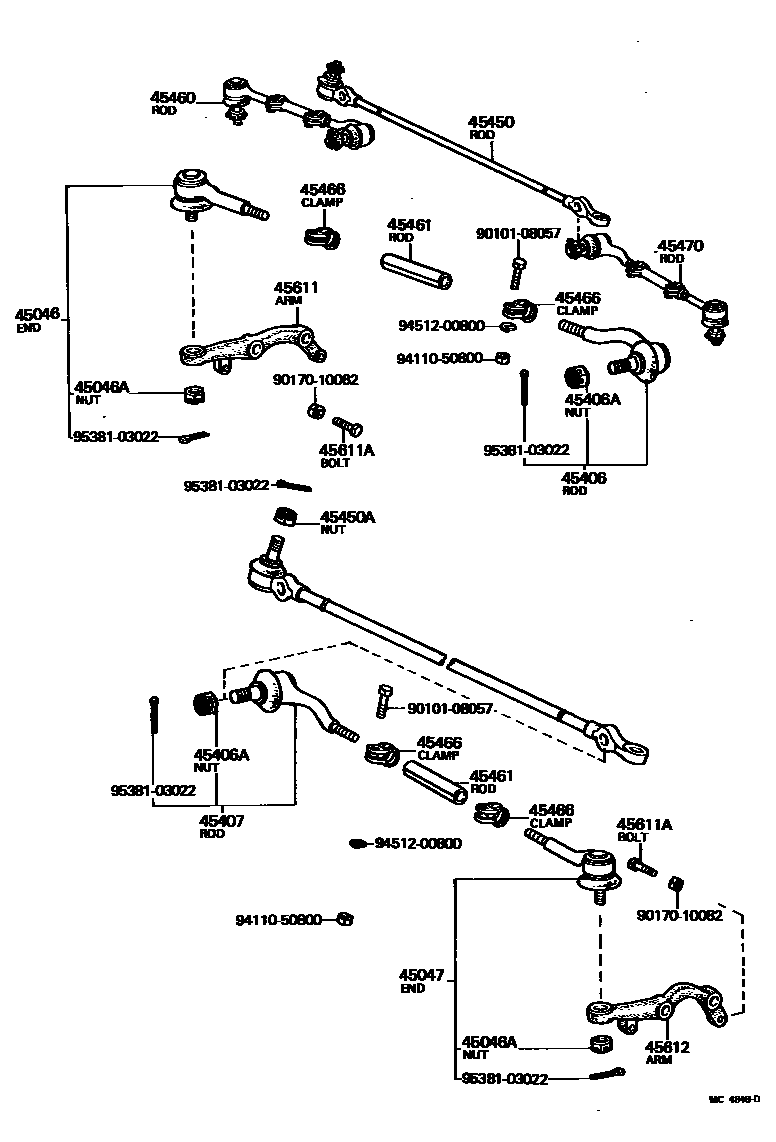

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45045-29035iLH11,20,30,RH11,2#,3#,42197702-197912

main45046-29105iLH11,20,30,RH11,2#,3#,42197912-198211

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iLH11,20,30,RH11,2#,3#,42197702-198211

45047END SUB-ASSY, TIE ROD, LH

main45045-29035iLH11,20,30,RH11,2#,3#,42197702-197912

main45046-29105iLH11,20,30,RH11,2#,3#,42197912-198211

45406ROD SUB-ASSY, TIE, RH

main45406-29085iLH11,20,30,RH11,2#,3#,42197702-197912

main45406-29095iLH11,20,30,RH11,2#,3#,42197912-198211

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042×2iLH11,20,30,RH11,2#,3#,42197702-198211

45407ROD SUB-ASSY, TIE, LH

main45406-29085iLH11,20,30,RH11,2#,3#,42197702-197912

main45406-29095iLH11,20,30,RH11,2#,3#,42197912-198211

45450ROD ASSY, STEERING RELAY

main45450-29035iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main45450-29045iLH11,20,30,RH11,2#,3#..LHD197702-197912

main45450-29065iLH11,20,30,RH11,20,22,3#,42..RHD197912-198211

main45450-29075iLH11,20,30,RH11,2#,3#..LHD197912-198211

45450ANUT, CASTLE(FOR RELAY ROD)

main90171-14042iLH11,20,30,RH11,2#,3#,42197702-198211

45460ROD ASSY, TIE, RH

main45460-29125iLH11,20,30,RH11,2#,3#,42197702-197912

main45460-29185iLH11,20,30,RH11,2#,3#,42197912-198211

45461ROD, STEERING TIE

main45465-26010×2iLH11,20,30,RH11,2#,3#,42197702-198211

45466CLAMP, TIE ROD END

main45466-30020×4iLH11,20,30,RH11,2#,3#,42197702-198211

45470ROD ASSY, TIE, LH

main45460-29125iLH11,20,30,RH11,2#,3#,42197702-197912

main45460-29185iLH11,20,30,RH11,2#,3#,42197912-198211

45611ARM, STEERING KNUCKLE, RH

main45611-26020iLH11,20,30,RH11,2#,3#,42197702-198211

45611ABOLT, KNUCKLE STOPPER

main90106-10006×4iLH11,20,30,RH11,2#,3#,42197702-198211

45612ARM, STEERING KNUCKLE, LH

main45612-26020iLH11,20,30,RH11,2#,3#,42197702-198211

9010108057

main90101-08057

9017010082

main90170-10082

9411050800

main94110-50800

9451200800

main94512-00800

9538103022

main95381-03022

20 parts on this diagram · 2 diagrams in section
