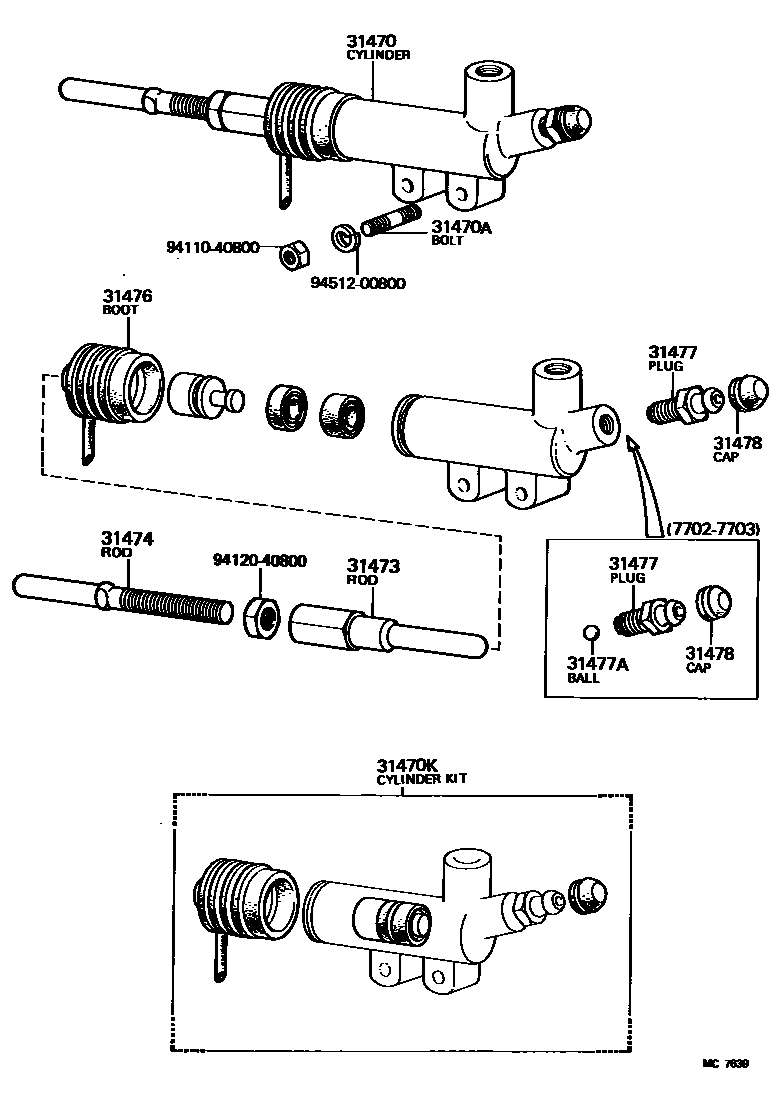

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0005 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20091iRH22,25,32,42197702-198012

sub31470-26020

main31470-26010iRH11,20,30197702-197711

main31470-26020iRH22,25,32,42198012-198211

main31470-26030iLH11,20,30198012-198211

main31470-30120iLH11,20,30197901-198012

sub31470-26030

main31470-35030iRH11,20,30197711-198211

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90116-08018iRH11,20,30197702-198011

main90116-08043iRH11,20,30198011-198211

main91611-40825iLH11,20,30,RH22,25,32,42197702-198211

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-25010iLH11,20,30,RH22,25,32,42198012-198211

main04313-30042iRH11,20,30197702-197711

main04313-30054iLH11,20,30,RH22,25,32,42197702-198012

main04313-35030iRH11,20,30197711-198211

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-25010iLH11,20,30,RH22,25,32,42198012-198211

main31473-30021iLH11,20,30,RH22,25,32,42197702-198012

main31473-35010iRH11,20,30197702-197711

main31473-35030iRH11,20,30197711-198211

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31475-35010iRH11,20,30197711-198211

main31771-20010iRH11,20,30197702-197711

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20030iRH11,20,30197702-197711

main31476-20040iLH11,20,30,RH22,25,32,42197702-198012

main31476-22010iLH11,20,30,RH22,25,32,42198012-198211

main31476-35020iRH11,20,30197711-198211

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main31477-30010iRH11,20,30197702-197703

main47547-12010iRH22,32,42197702-198211

31477ABALL(FOR RELEASE CYLINDER BLEEDER PLUG)

main90360-05006iRH11,20,30197702-197703

sub90360-05012

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLH11,20,30,RH11,2#,3#,42197702-198211

9411040800

main94110-40800

9412040800

main94120-40800

9451200800

main94512-00800

12 parts on this diagram · 4 diagrams in section
