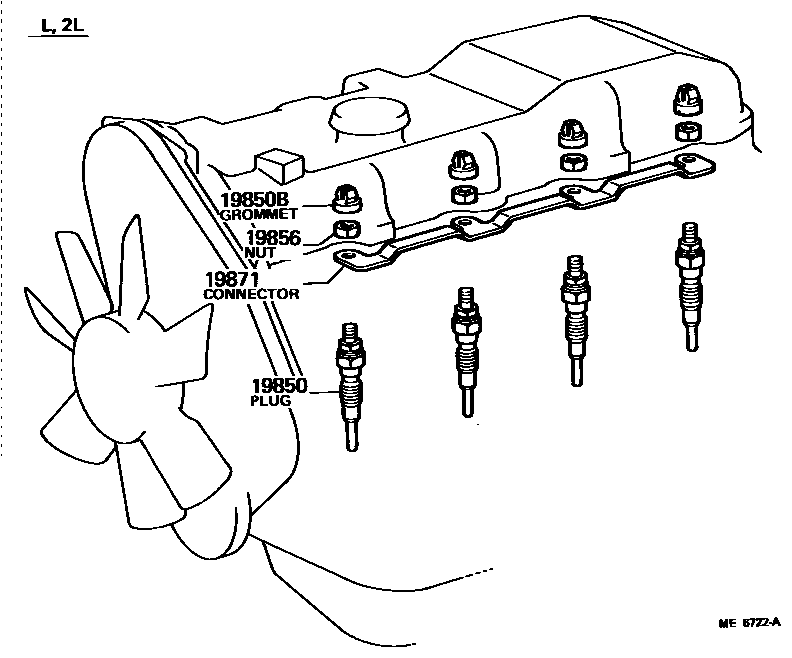

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19850PLUG ASSY, GLOW

main19850-54010iL..LH11,20197901-197909

sub19850-54090

sub90179-04019

main19850-54030iL..LH11,20,30197909-198105

sub19850-54031

main19850-54030iL..LH11,20,30..ARL,GEN198105-198211

WHITE PAINT

sub19850-54031

main19850-54050iL..LH11,20,30..EUR198105-198211

*BV-GV=12V-7V,YELLOW PAINT

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024iL..LH11,20,30197909-198211

main90189-06004iL..LH11,20197901-197909

19856NUT, CONNECTING(FOR GLOW PLUG)

main90170-04002iL..LH11,20,30197909-198211

main90170-05001iL..LH11,20197901-197909

sub94115-40500

19871CONNECTOR, GLOW PLUG NO.1

main19871-54010iL..LH11,20,30197901-198211

sub19871-54011

4 parts on this diagram · 2 diagrams in section
