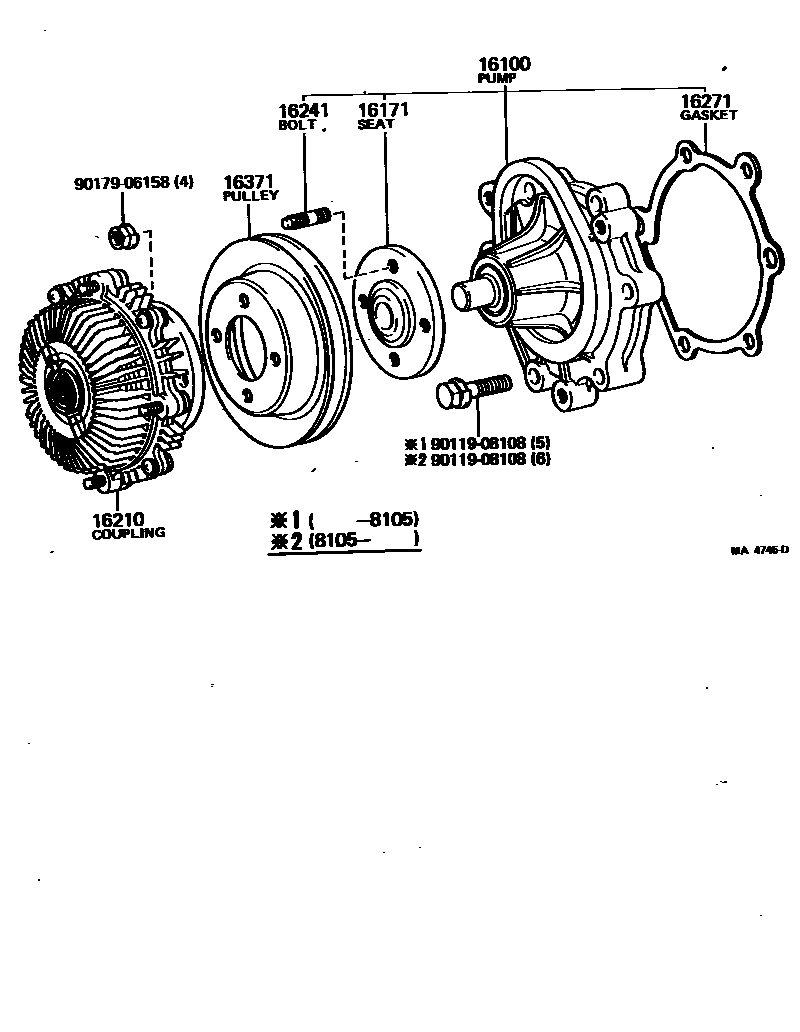

WATER PUMP

0001 1 0002 1 0004 1 0006 1 0009 1 0011 1

16100PUMP ASSY, ENGINE WATER

main16100-39116i12R#..RH11,20,30197702-198211

main16100-39215i18R..RH22,32,42..ARL,GEN,SA197804-198102

sub16100-39216

main16100-39236i18R..RH25,32..EUR197707-198211

sub16100-39237

main16100-39245i18R..RH22,32,42..ARL,GEN,SA197702-197804

sub16100-39246

main16100-39245i18R..RH22,32..ARL197804-198004

18RC

sub16100-39246

main16100-39275i18R..RH22,32,42..GEN,SA198102-198211

sub16100-39276

main16100-39285i12R..RH11,20,30..EUR198204-198211

main16100-39285i12R..RH20..LHD..BUS..GEN198102-198211

W/TWIN COOLER

main16100-39295i18R..RH22,32,42..ARL198004-198211

sub16100-39296

main16100-39305i12R..RH20..RHD..GEN198008-198211

SOUTH AFRICA SPEC,CAST IRON

main16100-59047iL..LH11,20,30197901-198008

sub16100-59049

main16100-59049iL..LH11,20,30198008-198105

sub16100-59125

main16100-59125iL..LH11,20,30198105-198108

sub16100-59215

main16100-59126iL..LH11,20,30198108-198210

sub16100-59127

main16100-59127iL..LH11,20,30198210-198211

sub16100-59128

16171SEAT, WATER PUMP PULLEY

main16171-24030i18R..RH25,32..EUR197707-198211

main16171-24031i12R#..RH11,20,30197702-198211

main16171-54010iL..LH11,20,30197901-198108

main16171-54011iL..LH11,20,30198108-198211

16210COUPLING ASSY, FLUID

main16210-31010i12R..RH20..LHD..BUS..GEN198102-198211

W/TWIN COOLER

main16210-31010i12R..RH11,20,30..EUR198204-198211

main16210-34090i18R..RH22,32,42..GEN,SA197804-198102

main16210-34101i18R..RH32..EUR197708-197912

sub16210-34102

main16210-34102i18R..RH25,32..EUR197912-198211

main16210-34130i18R..RH22,32,42..GEN,SA198102-198211

main16210-54020iL..LH11,20197901-197909

main16210-54040iL..LH11,20,30197909-198211

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020iL..LH11,20,30198208-198211

main16193-33030i18R..RH25,32..EUR197707-198211

main16193-54010iL..LH11,20,30197901-198208

main16193-54010i12R..RH20,30..RHD..BUS..GEN198102-198211

W/TWIN COOLER

main16241-40030i18R..RH22,32,42..GEN,SA197702-198211

16271GASKET, WATER PUMP

main16271-30011i12R#..RH11,20,30197702-197808

sub16271-31010

main16271-31010i12R#..RH11,20,30197808-198211

main16271-33010i18R..RH22,25,32,42197702-198211

sub16271-33011

main16271-54010iL..LH11,20,30197901-198008

sub16271-54011

main16271-54011iL..LH11,20,30198008-198105

sub16271-54012

main16271-54012iL..LH11,20,30198105-198211

sub16271-54013

16371PULLEY, FAN

main16173-34100i18R..RH22,32,42..ARL197707-198211

main16308-31010i12R..RH11,20..ARL197702-198211

NEW SOUTH WALES

main16371-31022i12R#..RH11,20,30197702-198211

main16371-31030i12R..RH20..LHD..BUS..GEN198102-198211

W/TWIN COOLER

main16371-31030i12R..RH11,20,30..EUR198204-198211

main16371-54010iL..LH11,20,30197901-198211

9011908108

main90119-08108

9017906158

main90179-06158

8 parts on this diagram · 6 diagrams in section
