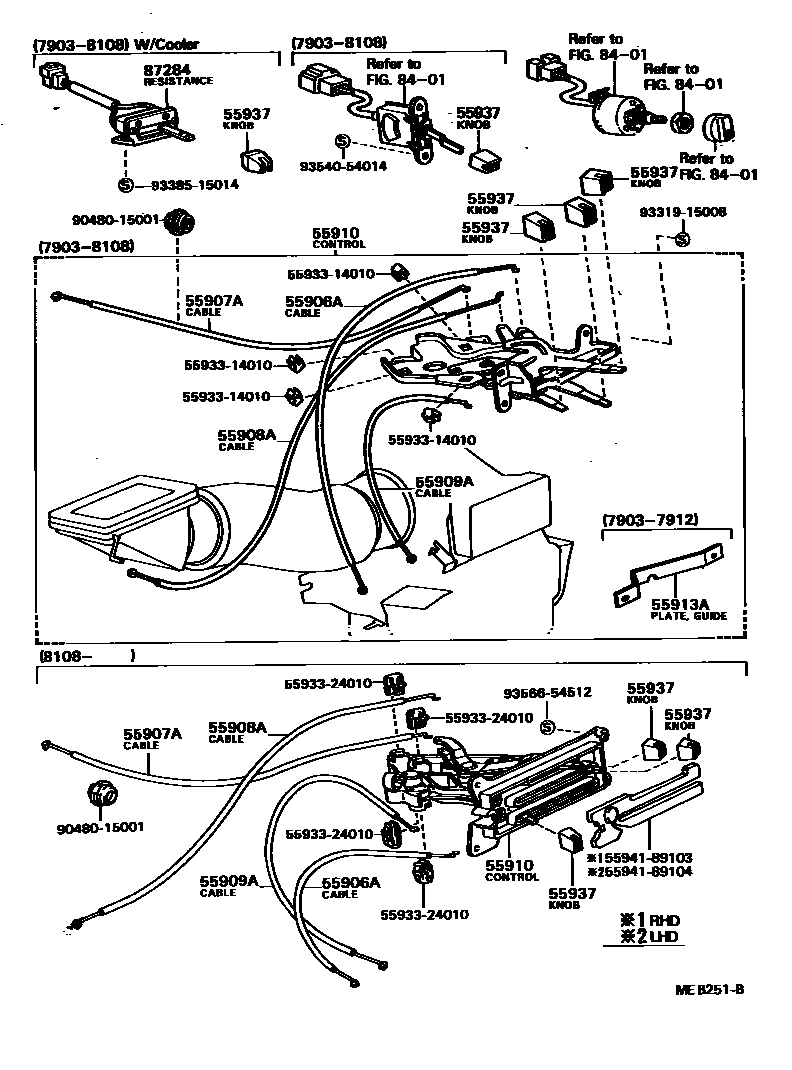

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-89104iRK110197903-198108

L=500

main55906-89105iYK110..RHD198804-199308

main55906-89105iRK110..RHD198108-198804

L=500

main55906-89106iYK110..LHD198804-200002

main55906-89106iRK110..LHD198108-198804

L=500

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-89107iRK110..RHD197903-198108

L=440

main55907-89108iRK110..LHD197903-198108

L=390

main55907-89109iRK110..RHD198108-198804

L=465

main55907-89109iYK110..RHD198804-199308

main55907-89110iYK110..LHD198804-200002

main55907-89110iRK110..LHD198108-198804

L=500

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-89102iRK110197903-198108

L=720

main55908-89103iRK110198108-198804

L=690

main55908-89103iYK110198804-200002

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-89103iRK110197903-198108

L=365

main55909-89104iRK110198108-198804

L=400

main55909-89104iYK110..RHD198804-199308

main55909-89105iYK110..LHD198804-199203

main55909-89105iRK110..LHD198110-198804

L=400

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-89109iRK110..RHD197903-198108

main55910-89110iRK110..LHD197903-198108

main55910-89111iRK110..RHD197903-198108

W/BOOST VENTILATOR

main55910-89112iRK110..LHD197903-198108

W/BOOST VENTILATOR

main55910-89113iRK110..RHD198108-198804

main55910-89113iYK110..SA198804-199308

W(HEATER & BOOST VENTILATOR)

main55910-89114iYK110..LHD198804-200002

W(HEATER & BOOST VENTILATOR)

main55910-89114iRK110..LHD198108-198804

main55910-89115iYK110..RHD..GEN198804-199308

W(BOOST VENTILATOR)

main55910-89115iRK110..RHD198108-198804

W/BOOST VENTILATOR

main55910-89116iRK110..LHD198108-198804

W/BOOST VENTILATOR

main55910-89116iYK110..LHD198804-200002

W(BOOST VENTILATOR)

55913APLATE, HEATER CONTROL LEVER GUIDE

main55913-89104iRK110..RHD197903-197912

main55913-89105iRK110..LHD197903-197912

55937KNOB, HEATER CONTROL LEVER

main55905-12070iYK110..GEN198108-200002

main55905-20140iRK110197903-198108

sub55905-12070

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88622-89101iRK110..GEN197903-198108

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593324010GUIDE, LEVER, NO.2

main55933-24010

5594189103BRACKET, HEATER CONTROL

main55941-89103

5594189104BRACKET, HEATER CONTROL

main55941-89104

9048015001

main90480-15001

9331915008

main93319-15008

9338515014

main93385-15014

9354054014

main93540-54014

9356654512

main93566-54512

18 parts on this diagram · 3 diagrams in section
