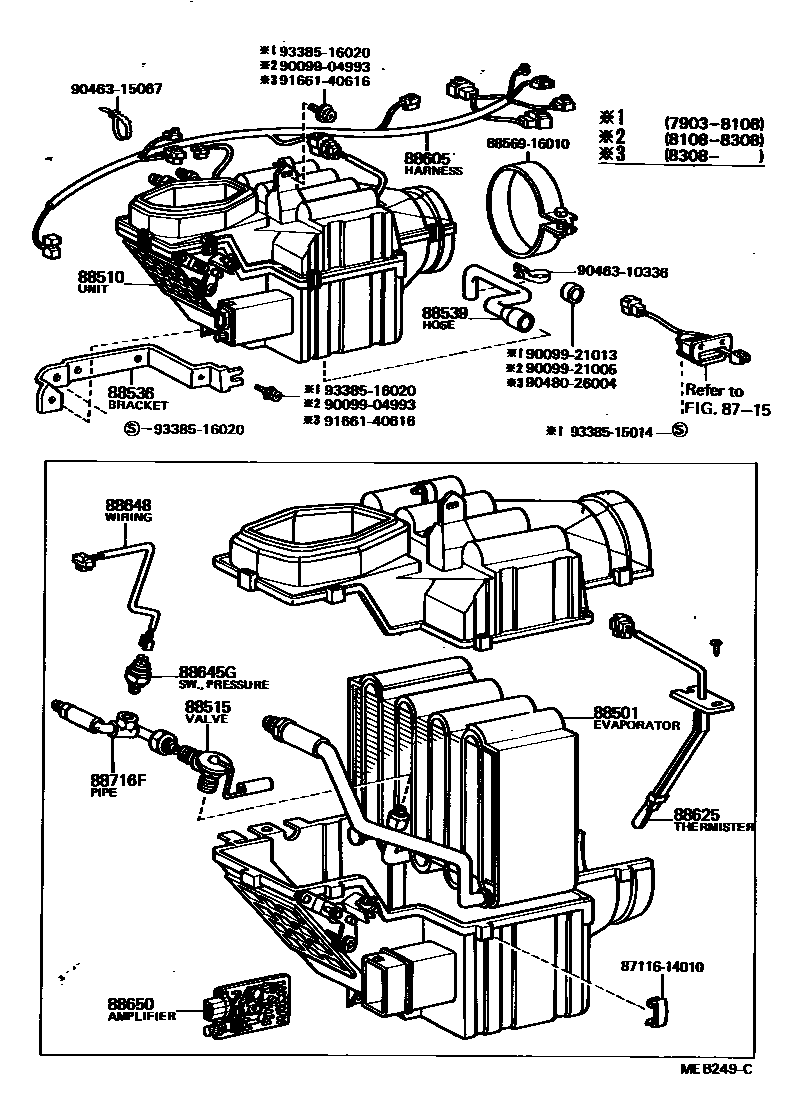

HEATING & AIR CONDITIONING - COOLER UNIT
8715
88510UNIT ASSY, COOLER
88536BRACKET, COOLING UNIT, NO.1
88539HOSE, COOLER UNIT DRAIN, NO.1
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
88625THERMISTOR, COOLER, NO.1
88648WIRING, COOLER, NO.1
88716FPIPE, COOLER REFRIGERANT LIQUID, F
8711614010SPRING, HEATER CASE FASTENING
main87116-14010
8856916010CLAMP (FOR COOLER RELAY)
main88569-16010
9009904993
main90099-04993
9009921005
main90099-21005
9009921013
main90099-21013
9046310336
main90463-10336
9046315067
main90463-15067
9048026004
main90480-26004
9166140616
main91661-40616
9338515014
main93385-15014
9338516020
main93385-16020
23 parts on this diagram · 1 diagram in section
