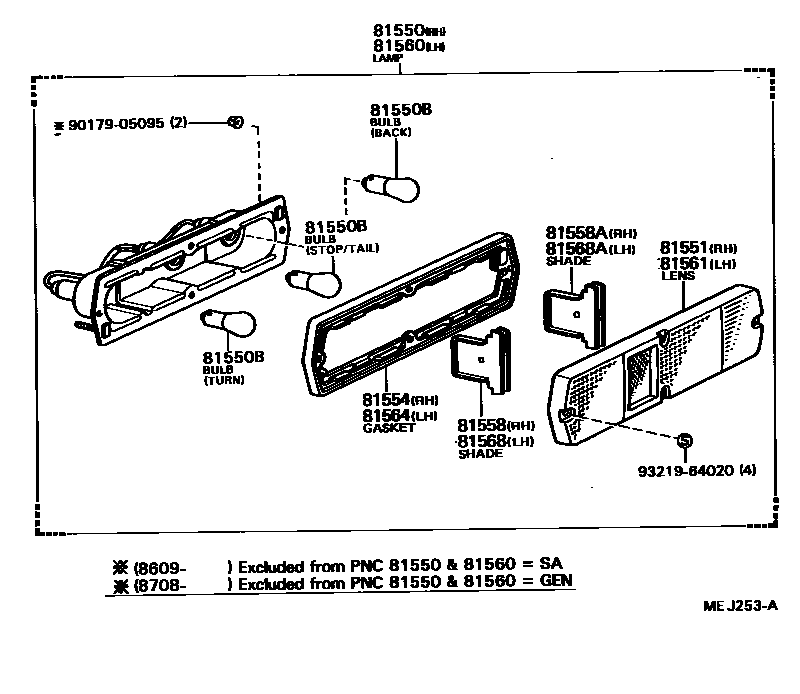

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29925iRK110197903-198609

sub81550-95010

main81550-95A09iYK110..SA198609-199308

main81550-95A10iYK110..GEN198803-200002

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iYK110198804-200002

12V 21W,12V 1.4W(TURN OR BACK)

main99132-11230×4iRK110197903-198609

12V 23W,12V 23W(TURN OR BACK)

main99132-21210×2iRK110197903-198804

12V 21/5W,12V 21/5W(STOP & TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iYK110..GEN198609-200002

main81551-26040iYK110..SA198609-199308

sub81551-60180

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iRK110197903-198609

main81552-26040iYK110..SA198609-199308

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iRK110197903-198609

main81557-26040iYK110..SA198609-199308

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iYK110..GEN198609-200002

main81557-26040iYK110..SA198609-199308

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80019iRK110197903-198609

sub81560-95010

main81560-95A09iYK110..SA198609-199308

main81560-95A10iYK110..GEN198803-200002

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iYK110..GEN198609-200002

main81561-26040iYK110..SA198609-199308

sub81561-60080

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-25060iRK110197903-198609

main81562-26040iYK110..SA198609-199308

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iRK110197903-198609

main81557-26040iYK110..SA198609-199308

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iRK110197903-198609

main81557-26040iYK110..SA198609-199308

9017905095

main90179-05095

9321964020

main93219-64020

13 parts on this diagram · 1 diagram in section
