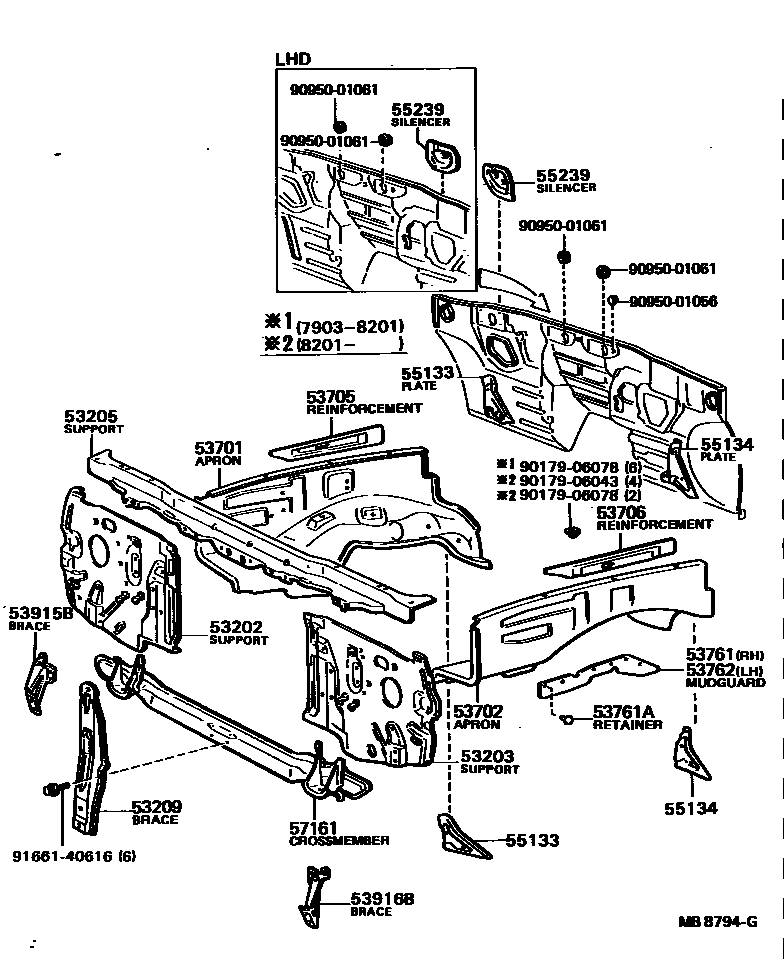

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-92300iRK110..LHD..T1198308-198804

W/AIR CONDITIONER

main53202-92300iYK110199308-199604

W(AIR CONDITIONER)

main53202-92301iYK110..LHD..TW198804-199308

W(AIR CONDITIONER)

main53202-92301iRK110..LHD..TW198308-198804

W/AIR CONDITIONER

main53202-95110iRK110..LHD197903-198001

sub53202-95112

main53202-95111iRK110..RHD197903-198108

sub53202-95123

main53202-95112iRK110..LHD..TW198001-198108

sub53202-95117

main53202-95115iRK110..RHD..T1198102-198108

sub53202-95121

main53202-95116iRK110..LHD..T1198102-198108

sub53202-95121

main53202-95121iRK110..T1198108-200002

main53202-95123iYK110..TW198108-199308

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-95110iRK110..RHD197903-198001

sub53203-95114

main53203-95112iRK110..LHD197903-198008

main53203-95114iRK110..RHD198001-198008

main53203-95118iRK110..LHD..TW198008-198108

sub53203-95130

main53203-95119iRK110..RHD198008-198108

sub53203-95124

main53203-95121iRK110..RHD..T1198102-198108

sub53203-95128

main53203-95122iRK110..LHD..T1198102-198108

sub53203-95128

main53203-95128iYK110..T1198108-200002

main53203-95130iYK110..TW198108-199308

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-89108iRK110197903-197908

sub53205-89110

main53205-89110iRK110197908-198609

sub53205-89114

main53205-92300iYK110198609-200002

53209BRACE SUB-ASSY, HOOD LOCK

main53217-95110iRK110197903-200002

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-92300iYK110..SA198804-199308

W(FENDER LINER)

main53701-92300iYK110199308-200002

main53701-92301iYK110..GEN198609-199308

sub53701-92300

main53701-92302iYK110..LHD198804-199308

W(AIR CONDITIONER)

main53701-92303iYK110..LHD198804-199308

W(FENDER LINER & AIR CONDITIONER)

main53701-95115iRK110..ARL,GEN197903-198008

sub53701-95124

main53701-95118iRK110..GEN,SA197903-198008

W/FENDER LINER

sub53701-95125

main53701-95124iRK110..ARL,GEN198008-198609

main53701-95125iRK110..GEN,SA198008-198609

W/FENDER LINER

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-92300iRK110..RHD..GEN198308-198609

W/AIR CONDITIONER

main53702-92300iRK110..GEN198309-198609

main53702-92301iRK110..GEN,SA198309-198609

W/FENDER LINER

main53702-92301iRK110..RHD..GEN198308-198609

W/AIRCONDITIONER & FENDERLINER

main53702-92302iYK110..SA198804-199308

W(FENDER LINER)

main53702-92303iYK110..RHD..GEN198804-199308

main53702-92304iYK110..RHD..GEN198804-199308

W(AIR CONDITIONER)

main53702-92305iYK110..RHD..GEN198804-199308

W(FENDER LINER & AIR CONDITIONER)

main53702-92306iYK110..LHD198609-199308

sub53702-92307

main53702-92307iYK110199308-200002

main53702-92307iYK110..LHD198804-199308

W(FENDER LINER)

main53702-95119iRK110..ARL197903-198008

sub53702-95133

main53702-95120iRK110..GEN197903-198008

sub53702-95134

main53702-95122iRK110..GEN,SA197903-198008

W/FENDER LINER

sub53702-95135

main53702-95133iRK110..ARL198008-198609

main53702-95134iRK110..GEN198008-198309

sub53702-92300

main53702-95135iRK110..GEN,SA198008-198309

W/FENDER LINER

sub53702-92301

53705REINFORCEMENT SUB-ASSY, FRONT FENDER APRON, REAR RH

main53745-95110iRK110197903-198201

main53745-95111iRK110198201-200002

53706REINFORCEMENT SUB-ASSY, FRONT FENDER APRON, REAR LH

main53746-95110iRK110197903-198201

main53746-95112iYK110198201-200002

53761MUDGUARD, RH

main53736-35060iYK110199112-200002

main53736-95111iYK110197903-199112

sub53736-35060

53761ARETAINER(FOR MUDGUARD)

main90467-10005-01iRK110197903-198804

BLACK,BLACK

sub90467-10005

sub90467-06017

main90467-10005-01iYK110198804-200002

BLACK,TRIM4#,8#

sub90467-10005

sub90467-06017

53762MUDGUARD, LH

main53737-35030iYK110199112-200002

main53737-92300iRK110198308-199112

sub53737-35030

main53737-95111iRK110197903-198308

sub53736-95111

53915BBRACE, VALANCE PANEL TO RADIATOR SUPPORT, RH

main53915-95110iRK110197903-200002

53916BBRACE, VALANCE PANEL TO RADIATOR SUPPORT, LH

main53916-95110iRK110197903-200002

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-89101iRK110197903-200002

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-89101iRK110197903-200002

55239SILENCER, STEERING COLUMN HOLE COVER

main55210-92305iYK110..4H198804-199308

main55210-92307iYK110..RHD..4F198609-199308

main55210-92309iYK110..LHD198609-200002

main55210-95112iRK110..RHD..4F197903-198609

main55210-95113iRK110..LHD197903-198609

main55210-95116iRK110..4H197903-198609

57161CROSSMEMBER, FRONT

main57104-95110iRK110197903-199308

main57104-95112iRK110..T1198102-200002

9017906043

main90179-06043

9017906078

main90179-06078

9095001056

main90950-01056

9095001061

main90950-01061

9166140616

main91661-40616

22 parts on this diagram · 2 diagrams in section
