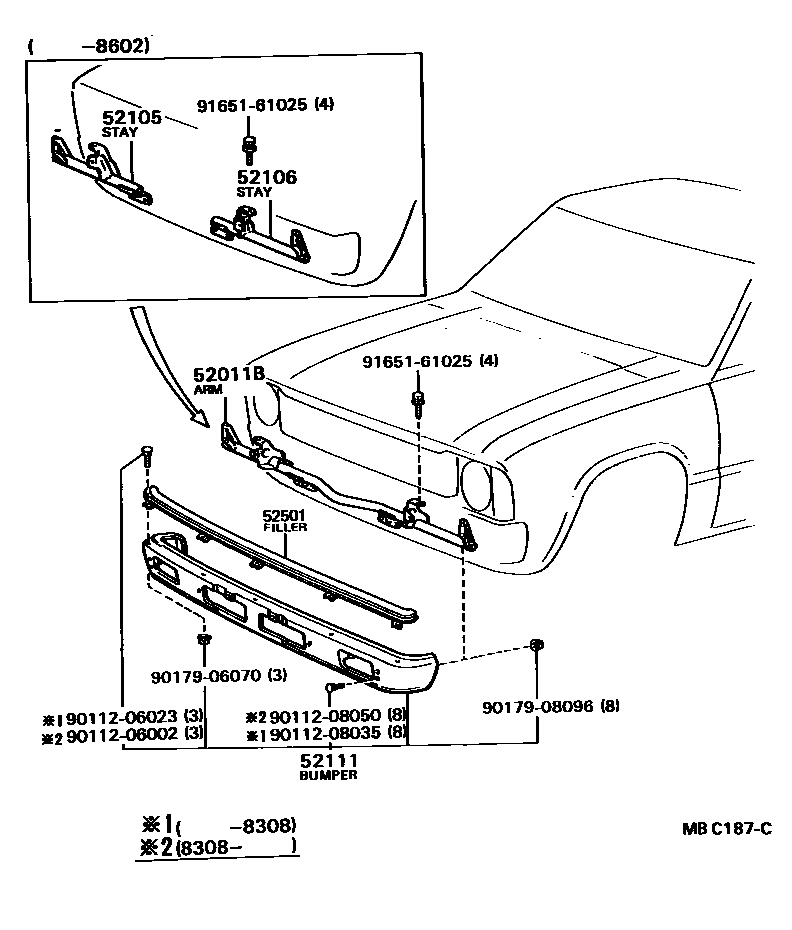

FRONT BUMPER & BUMPER STAY

52011BARM SUB-ASSY, FRONT BUMPER

main52011-92300iRK110198602-198804

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-95112iRK110197903-198602

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-95112iRK110197903-198602

52111BUMPER ASSY, FRONT

main52111-39116iRK110197903-198308

sub52111-95116

main52111-39575iRK110198308-198804

sub52111-92300

main52111-92901iYK110199308-200002

52501FILLER SUB-ASSY, FRONT BUMPER

main53105-95111iRK110197903-198804

9011206002

main90112-06002

9011206023

main90112-06023

9011208035

main90112-08035

9011208050

main90112-08050

9017906070

main90179-06070

9017908096

main90179-08096

9165161025

main91651-61025

12 parts on this diagram · 1 diagram in section
