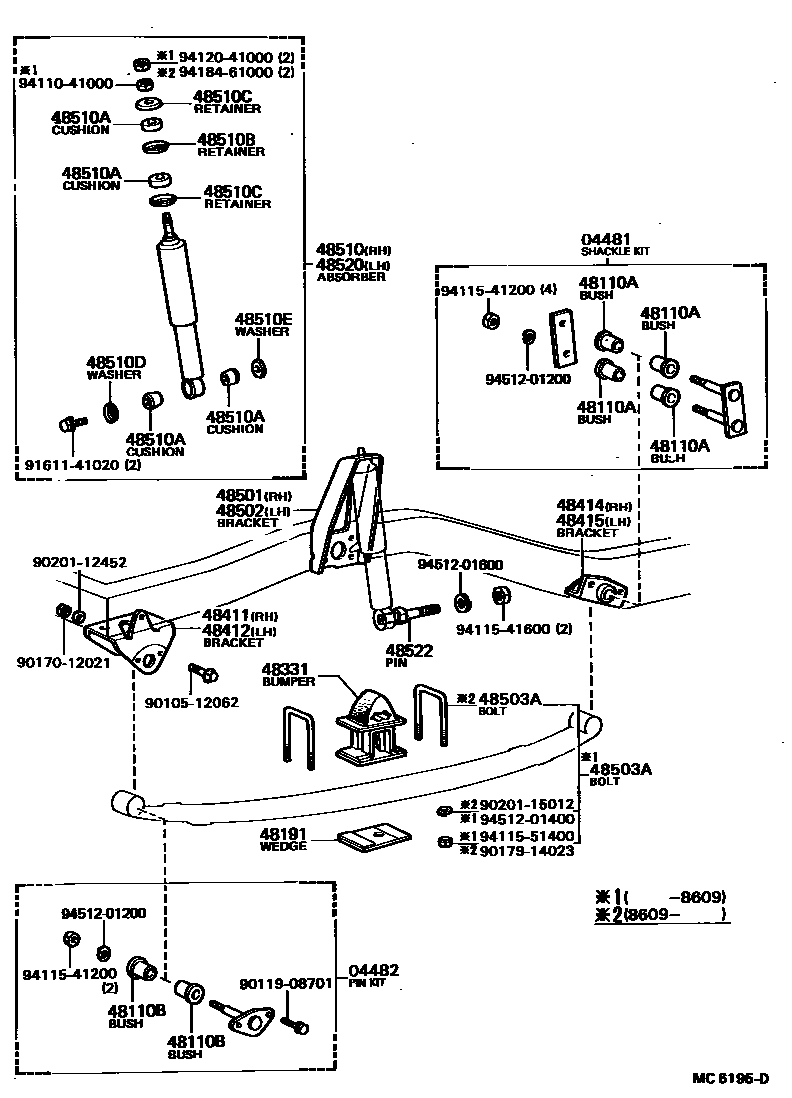

FRONT SPRING & SHOCK ABSORBER
04481SHACKLE KIT, FRONT SPRING
04482PIN KIT, FRONT SPRING
48110SPRING ASSY, FRONT, RH
48110ABUSH(FOR FRONT SPRING SHACKLE)
LWR
UPR
48110BBUSH(FOR FRONT SPRING PIN)
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48411BRACKET, FRONT SPRING(FOR FRONT RH)
48412BRACKET, FRONT SPRING(FOR FRONT LH)
48414BRACKET, FRONT SPRING(FOR REAR RH)
48415BRACKET, FRONT SPRING(FOR REAR LH)
48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
L=81,RR SIDE
L=95,FR SIDE
48510ACUSHION, FRONT SHOCK ABSORBER
ABSORBER X I BEAM
ABSORBER X I BEARM
ABSORBER X UPR BRACK
ABSORBER X UPR BRACKET
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
9010512062
main90105-12062
9011908701
main90119-08701
9017012021
main90170-12021
9017914023
main90179-14023
9020112452
main90201-12452
9020115012
main90201-15012
9161141020
main91611-41020
9411041000
main94110-41000
9411541200
main94115-41200
9411541600
main94115-41600
9411551400
main94115-51400
9412041000
main94120-41000
9418461000
main94184-61000
9451201200
main94512-01200
9451201400
main94512-01400
9451201600
main94512-01600
38 parts on this diagram · 4 diagrams in section
