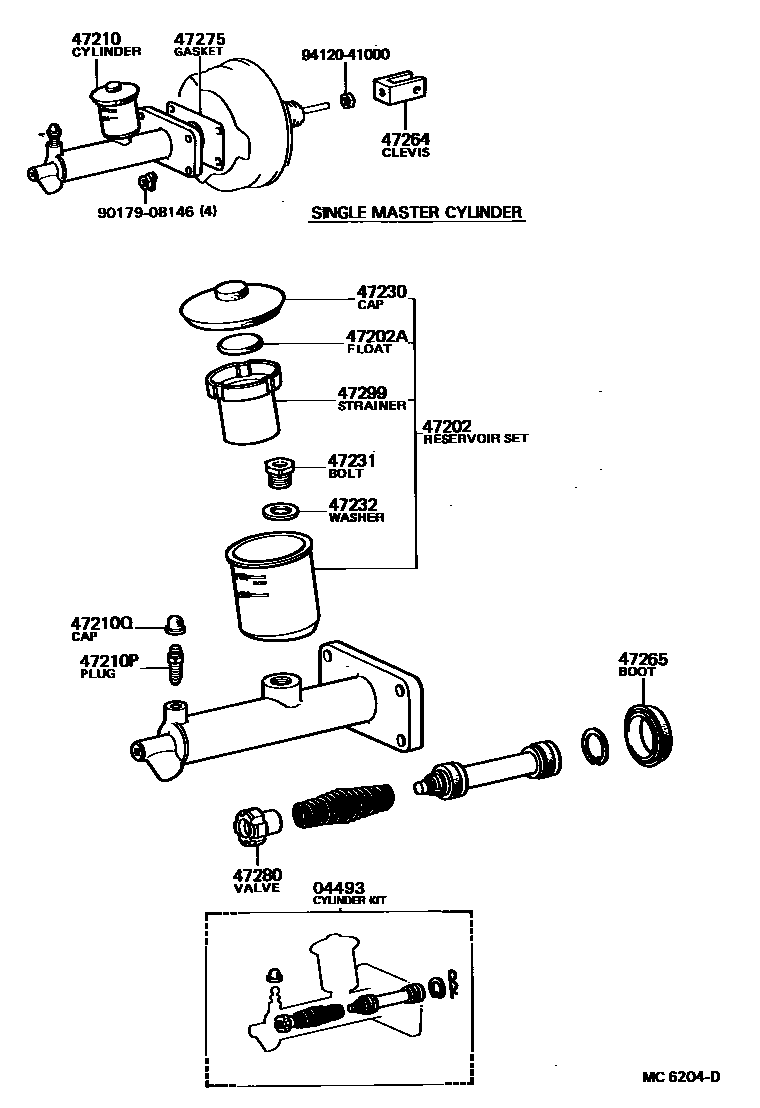

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
sub04493-35090
TANDEM TYPE
TANDEM M/C, 8INCHES BOOSTER
TANDEM M/C, 9INCHES BOOSTER
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
SAUDI ARABIA & OMAN SPEC & TANDEM M/C, 9INCHES BOOSTER
TANDEM TYPE
TANDEM M/C, 8INCHES BOOSTER
TANDEM M/C, 9INCHES BOOSTER
SAUDI ARABIA & OMAN SPEC
SAUDI ARABIA SPEC
47202AFLOAT, MASTER CYLINDER RESERVOIR
47210CYLINDER ASSY, MASTER, W/O BOOSTER
sub47201-35241
sub47201-35560
sub47201-35500
TANDEM TYPE
TANDEM M/C, 9INCHES BOOSTER
TANDEM M/C, 8INCHES BOOSTER
SAUDI ARABIA & OMAN SPEC
SAUDI ARABIA & OMAN SPEC & TANDEM M/C, 9INCHES BOOSTER
47210PPLUG, BLEEDER(FOR BRAKE MASTER CYLINDER)
47210QCAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
SAUDI ARABIA SPEC
SINGAPORE SPEC,P.N.G. SPEC
TANDEM TYPE
SAUDI ARABIA & OMAN SPEC
47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47232WASHER, BRAKE RESERVOIR SET BOLT
SAUDI ARABIA & OMAN SPEC OR TANDEM M/C, 9INCHES BOOSTER
TANDEM M/C, 9INCHES BOOSTER
47264CLEVIS, MASTER CYLINDER PUSH ROD
47265BOOT, MASTER CYLINDER
47275GASKET, BRAKE MASTER CYLINDER
47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
TANDEM TYPE
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
TANDEM TYPE
TANDEM M/C, 8INCHES BOOSTER
TANDEM M/C, 9INCHES BOOSTER
9017908146
main90179-08146
9412041000
main94120-41000
16 parts on this diagram · 4 diagrams in section
