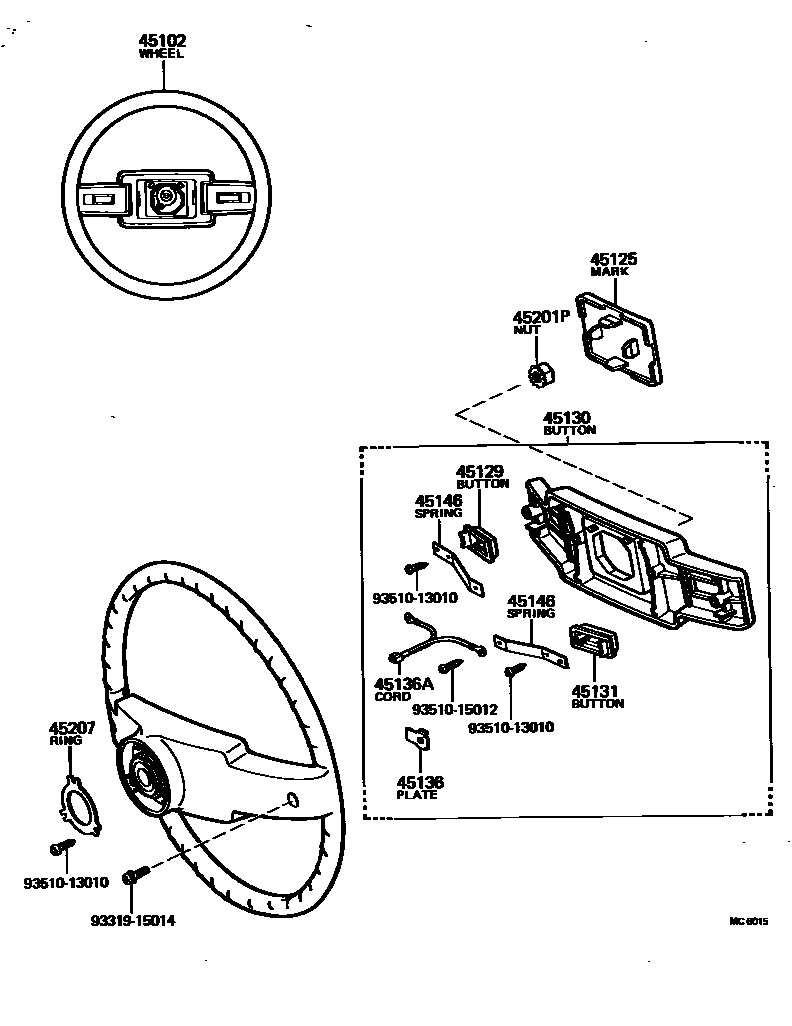

STEERING WHEEL
45102WHEEL SUB-ASSY, STEERING
BLACK,BLACK
BLUE,BLUE
BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
BLUE,TRIM8#
BROWN,TRIM4#
45125MARK, STEERING WHEEL PAD
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
DARK BROWN,BROWN
BLUE,TRIM8#
BROWN,TRIM4#
45129BUTTON, HORN, NO.2
BLUE,TRIM8#
BROWN,TRIM4#
45130BUTTON ASSY, HORN
BLACK,BLACK
BLUE,BLUE
BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
BLUE,TRIM8#
BROWN,TRIM4#
45131BUTTON, HORN, NO.1
BLUE,TRIM8#
BROWN,TRIM4#
45136PLATE, HORN BUTTON CONTACT
45136ACORD(FOR HORN CONTACT RING)
45146SPRING, HORN BUTTON CONTACT
45207RING, HORN CONTACT
9331915014
main93319-15014
9351013010
main93510-13010
9351015012
main93510-15012
13 parts on this diagram · 1 diagram in section
