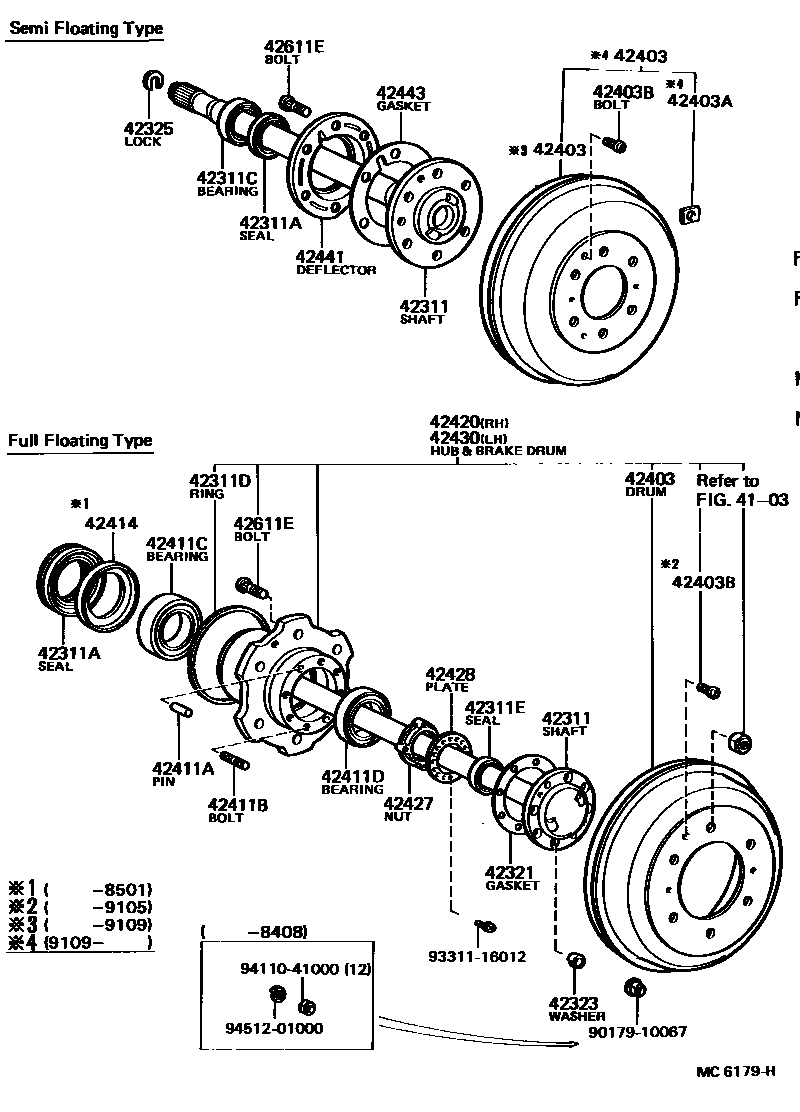

REAR AXLE SHAFT & HUB
4103
42311ASEAL, OIL(FOR REAR AXLE SHAFT)
42311CBEARING(FOR REAR AXLE SHAFT)
42311DRING, SNAP(FOR REAR AXLE SHAFT)
42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)
42323WASHER, CONE (FOR REAR AXLE SHAFT)
42325LOCK, REAR AXLE SHAFT
42403APIECE, BALANCE (FOR REAR BRAKE DRUM)
10G
20G
30G
40G
50G
60G
40G
50G
60G
42411APIN, STRAIGHT (FOR REAR AXLE HUB)
42411BBOLT, STUD (FOR REAR AXLE HUB)
42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
42414PLATE, REAR AXLE HUB
42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42427NUT, REAR AXLE BEARING LOCK
42428PLATE, REAR AXLE LOCK NUT
42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42441DEFLECTOR, BRAKE DRUM OIL
42443GASKET, BRAKE DRUM OIL DEFLECTOR
9017910067
main90179-10067
9331116012
main93311-16012
9411041000
main94110-41000
9451201000
main94512-01000
28 parts on this diagram · 1 diagram in section
