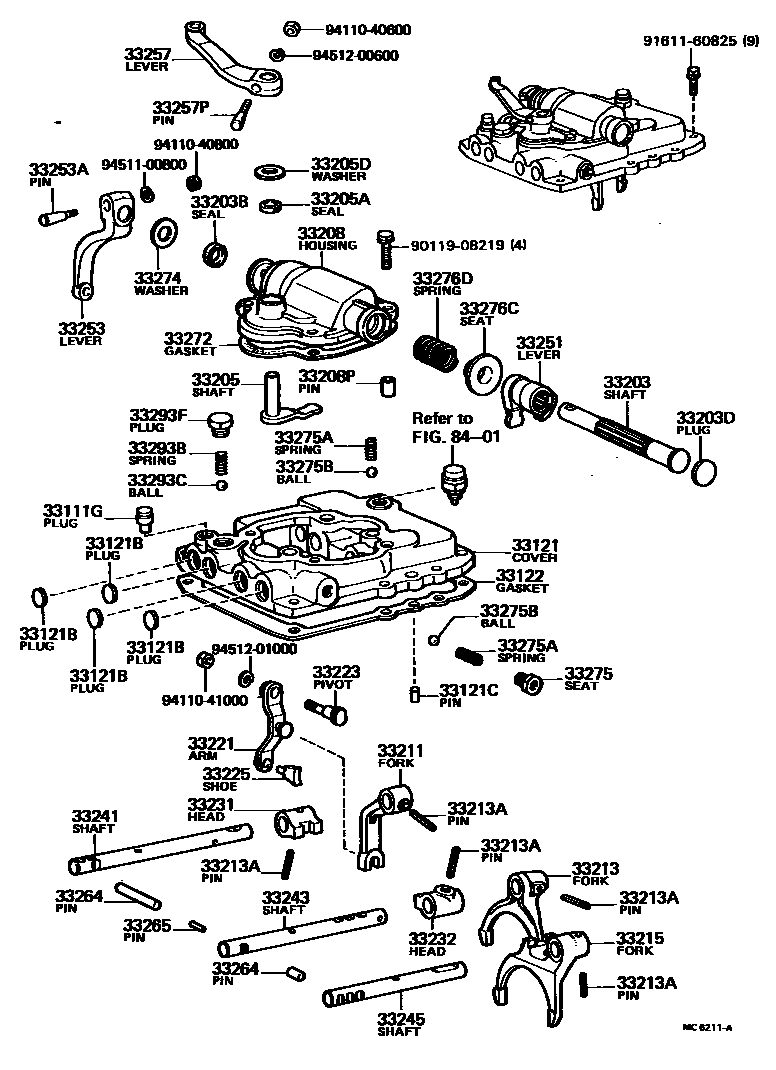

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33121COVER, MANUAL TRANSMISSION CASE
33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
33121CPIN(FOR TRANSMISSION CASE COVER)
L=14,OD=10
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33208PPIN, RING(FOR SHIFT LEVER SHAFT HOUSING)
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
33221ARM, REVERSE SHIFT
33223PIVOT, SHIFT ARM
33225SHOE, SHIFT ARM
33231HEAD, REVERSE SHIFT
33232HEAD, 1ST & 2ND SHIFT
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33251LEVER, SHIFT & SELECT
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=13.6,OD=9.5
L=15,OD=9.5
L=38.9,OD=9.5
33265PIN, SHIFT INTERLOCK, NO.2
L=11.5,OD=4.8
L=13
33272GASKET, SHIFT LEVER SHAFT HOUSING
33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=34.5
33275BBALL, SHAFT DETENT
33276CSEAT, SELECT SPRING
33276DSPRING, COMPRESSION (FOR SELECT LEVER SHAFT)
33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
33293CBALL (FOR REVERSE RESTRICT)
33293FPLUG (FOR REVERSE RESTRICT BALL HOLDER)
8401
9011908219
9161160825
9411040600
9411040800
9411041000
9451100800
9451200600
9451201000
51 parts on this diagram · 5 diagrams in section
