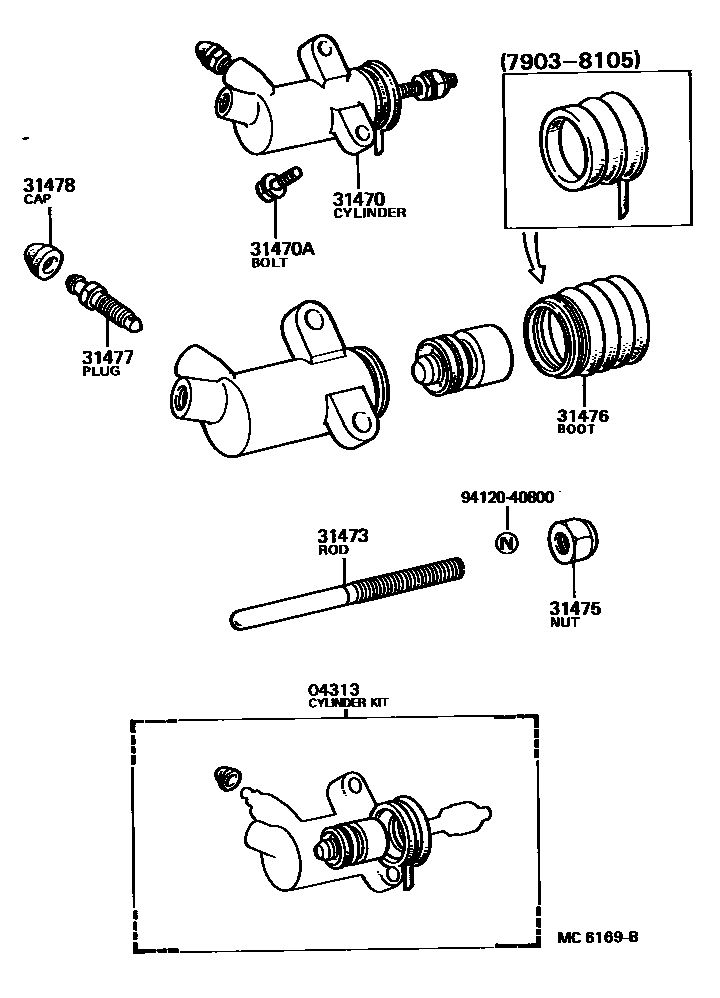

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iYK110..RHD198806-199410

main04313-17010iYK110199410-200002

main04313-22020iYK110198609-198806

sub04313-12030

main04313-25010iRK110198105-198609

main04313-30054iRK110197903-198105

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20101iRK110197903-198609

main31470-35070iYK110198609-198806

sub31470-35071

main31470-35071iYK110..RHD198806-199410

sub31470-35100

main31470-35100iYK110199410-200002

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iYK110198804-200002

*8-1.25PX20-20

sub91611-G0820

main91611-60825iRK110197903-198609

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iYK110198804-199410

main31473-25010iRK110198105-198609

main31473-30021iRK110197903-198105

main31473-35050iYK110199410-200002

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30020iRK110197903-198609

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iRK110197903-198105

main31476-22010iRK110198105-200002

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRK110197903-200002

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRK110197903-200002

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
