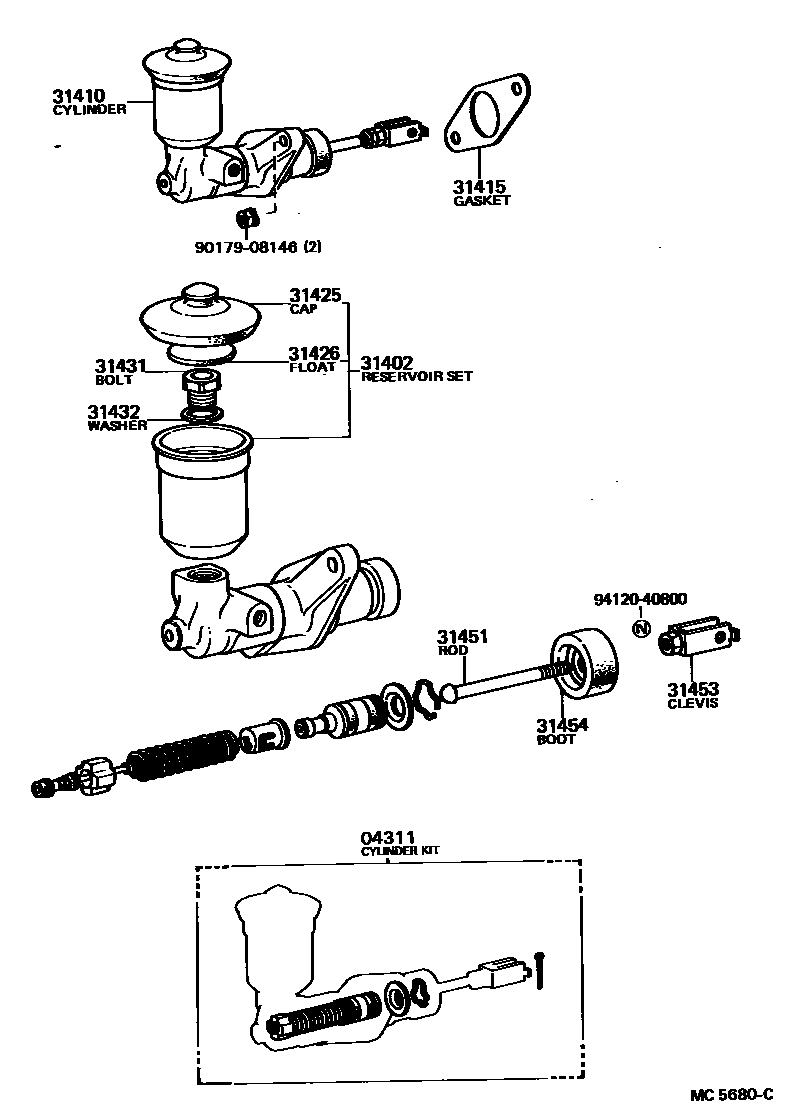

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14010iRK110197903-198209

sub04311-14011

main04311-14011iRK110198209-198609

sub04311-14012

main04311-14032iYK110198802-198808

sub04311-28010

main04311-28010iYK110198808-198811

sub04311-60080

main04311-60080iYK110198811-200002

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iYK110198101-200002

main47202-12010iRK110197903-198101

sub47202-12050

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35090iRK110197903-198704

sub31410-35091

main31410-35092iYK110198710-200002

sub31410-35102

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iRK110197903-200002

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iRK110197905-198101

sub47230-20040

main47230-12011iRK110197903-197905

sub31440-35010

main47230-20040iRK110198101-200002

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRK110197903-200002

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iRK110197903-200002

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iRK110197903-200002

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12010iRK110197903-198609

main31451-35060iYK110198609-200002

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iRK110197903-198509

sub31453-35010

main31453-35010iRK110198509-200002

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRK110197903-200002

9017908146

main90179-08146

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
