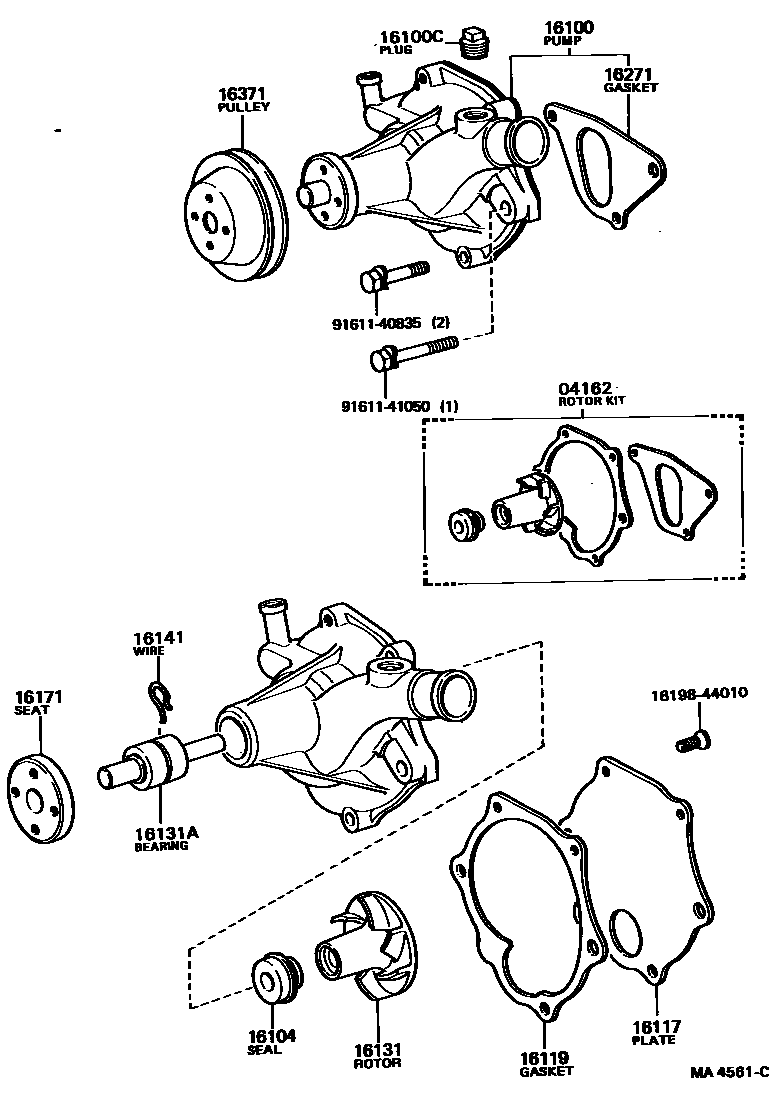

WATER PUMP

0001 1 0002 1

04162ROTOR KIT, WATER PUMP

main04162-44020i5R..RK110197903-198609

sub04162-44021

16100PUMP ASSY, ENGINE WATER

main16100-49415i5R..RK110197903-198609

sub16100-49416

main16100-49425i5R..RK110..ARL,SA197912-198609

CAST IRON

sub16100-49426

main16100-79036i4Y..YK110198704-199611

sub16100-79037

main16100-79037i4Y..YK110199611-200002

16100CPLUG, W/HEAD TAPER SCREW

main90345-54004i5R..RK110..GEN,SA197903-198101

W/O HEATER

sub90345-54005

main90345-54005i5R..RK110..GEN,SA198101-198609

W/O HEATER

16104SEAL SET, WATER PUMP

main16104-15020i5R..RK110198410-198609

main16104-41110i5R..RK110197903-197911

sub16104-41111

main16104-41111i5R..RK110197911-198410

sub16104-15020

16117PLATE, WATER PUMP

main16117-44010i5R..RK110197903-198609

16119GASKET, WATER PUMP BODY

main16119-44010i5R..RK110197903-198609

sub16119-44011

16131ROTOR, WATER PUMP

main16131-44070i5R..RK110197903-198609

16131ABEARING, WATER PUMP

main90369-30063i5R..RK110197903-198609

BWF30-6AAR

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i5R..RK110..ARL,SA197912-198609

16171SEAT, WATER PUMP PULLEY

main16171-24031i5R..RK110197903-198609

16271GASKET, WATER PUMP

main16271-44010i5R..RK110197903-198101

sub16271-44020

main16271-44020i5R..RK110198101-198609

sub16271-44021

16371PULLEY, FAN

main16371-44010i5R..RK110197903-198609

main16371-71010i4Y..YK110198609-200002

sub16371-71021

1619844010BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-44010

9161140835

main91611-40835

9161141050

main91611-41050

15 parts on this diagram · 2 diagrams in section
