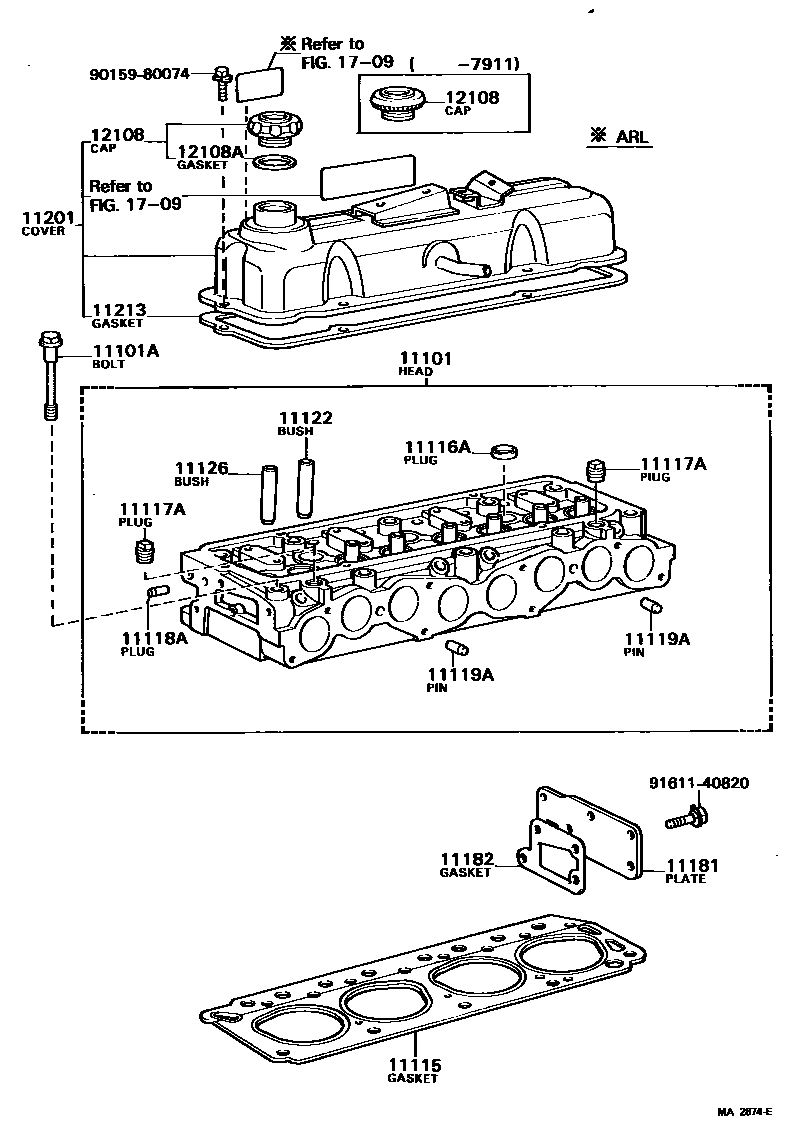

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX107-24
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
OD=25
11118APLUG, STRAIGHT, NO.1
L=3.5,OD=6.7
11119APIN, STRAIGHT, NO.1
L=23,OD=8,L=23,OD=8
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
11181PLATE, CYLINDER HEAD, REAR
12108AGASKET(FOR OIL FILLER CAP)
1709
9015980074
main90159-80074
9161140820
main91611-40820
18 parts on this diagram · 2 diagrams in section
