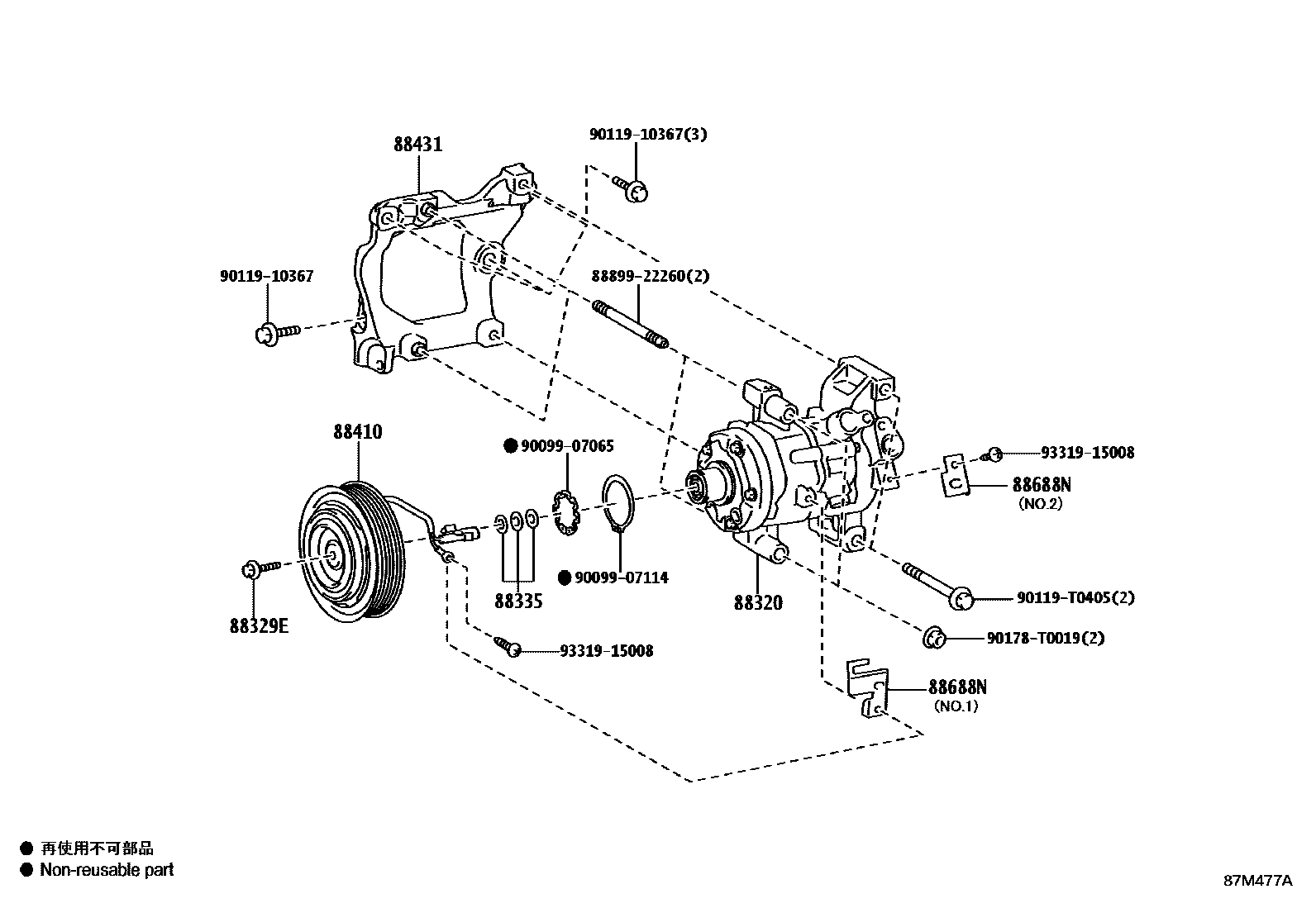

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN110,12#,TGN11#..LA,THAI202312-202407

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGUN12#,TGN110..PHL202312-202407

88335GASKET KIT, OVERHAUL

main88335-14020iGUN12#,TGN110..PHL202312-202407

88410CLUTCH ASSY, MAGNET

main88410-0K580iTGN110..PHL202312-202407

main88410-0K600iGUN110,12#..LA,THAI202312-202407

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0K140iGUN110,12#..LA,THAI202312-202407

main88431-0K210iTGN110..PHL202312-202407

88688NBRACKET, COOLER

main88688-0K280iTGN11#..THAI202312-202407

main88849-0K010iGUN12#..PHL202312-202407

NO.1:REFER ILLUST.

main88849-0K020iGUN110,12#..LA,THAI202312-202407

NO.2:REFER ILLUST.

8889922260COVER, EVAPORATOR

main88899-22260

9009907065

main90099-07065

9009907114

main90099-07114

9011910367

main90119-10367

90119T0405

main90119-T0405

90178T0019

main90178-T0019

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section
