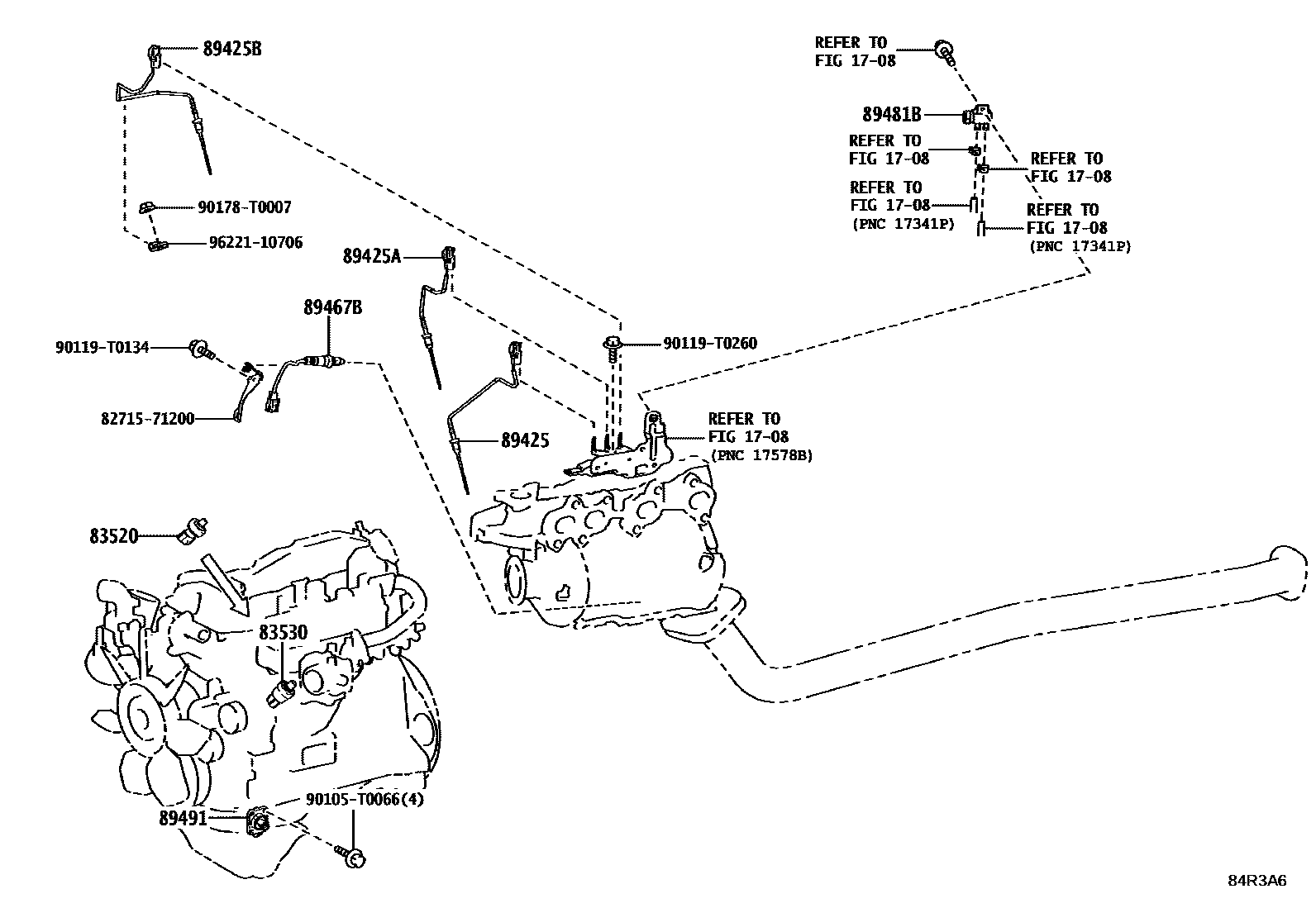

1708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iGUN110,12#..THAI202312

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iGUN11#..IDN202312-202407

DENSO,*369

main83530-28020iTGN110..IDN202312-202407

main83530-60010iGUN122..LA202312-202407

YAZAKI,*369

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070iGUN110,12#..THAI202312

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080iGUN110,12#..THAI202312

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090iGUN110,12#..THAI202312

89467BSENSOR, AIR FUEL RATIO

main89467-71120iGUN110,12#..THAI202312

main89467-71130iTGN110..PHL202312-202408

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGUN110,12#..THAI202312

89491SENSOR, ENGINE OIL LEVEL

main89491-26190iGUN12#..PHL202312-202407

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200

90105T0066

main90105-T0066

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90178T0007

main90178-T0007

9622110706

main96221-10706

15 parts on this diagram · 13 diagrams in section
