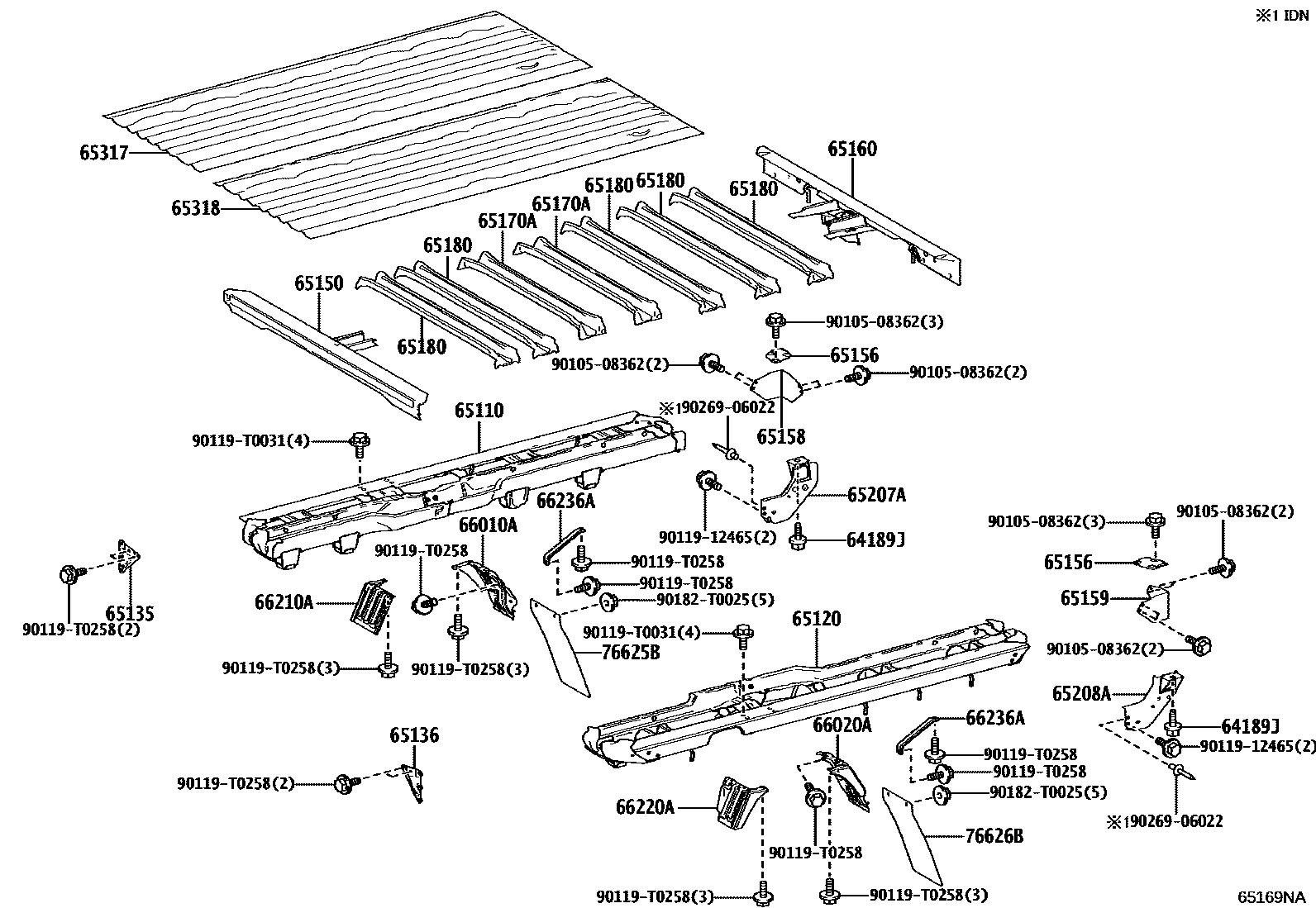

REAR BODY FLOOR & FENDER
64189JBOLT, REAR BODY MOUNTING
65110SILL ASSY, MAIN, RH
65120SILL ASSY, MAIN, LH
65135PATCH, MAIN SILL
65136PATCH, MAIN SILL, NO.2
65150SILL ASSY, CROSS, NO.1
65156COVER, CROSS SILL END, RH
65158COVER, REAR CROSS SILL END, RH
65159COVER, REAR CROSS SILL END, LH
65160SILL ASSY, CROSS, NO.2
65170ASILL ASSY, CROSS, NO.3
65180SILL ASSY, CROSS, NO.4
65207AGUSSET SUB-ASSY, CROSS SILL, RH
65208AGUSSET SUB-ASSY, CROSS SILL, LH
65317PANEL, FLOOR SIDE, RH
65318PANEL, FLOOR SIDE, LH
66010AFENDER ASSY, REAR NO.2 RH
66020AFENDER ASSY, REAR NO.2 LH
66210AFENDER ASSY, REAR NO.1 RH
66220AFENDER ASSY, REAR NO.1 LH
66236ASTAY, REAR FENDER, NO.2
76625BMUDGUARD, REAR BODY, RH
76626BMUDGUARD, REAR BODY, LH
9010508362
main90105-08362
9011912465
main90119-12465
90119T0031
main90119-T0031
90119T0258
main90119-T0258
90182T0025
main90182-T0025
9026906022
main90269-06022
29 parts on this diagram · 3 diagrams in section
