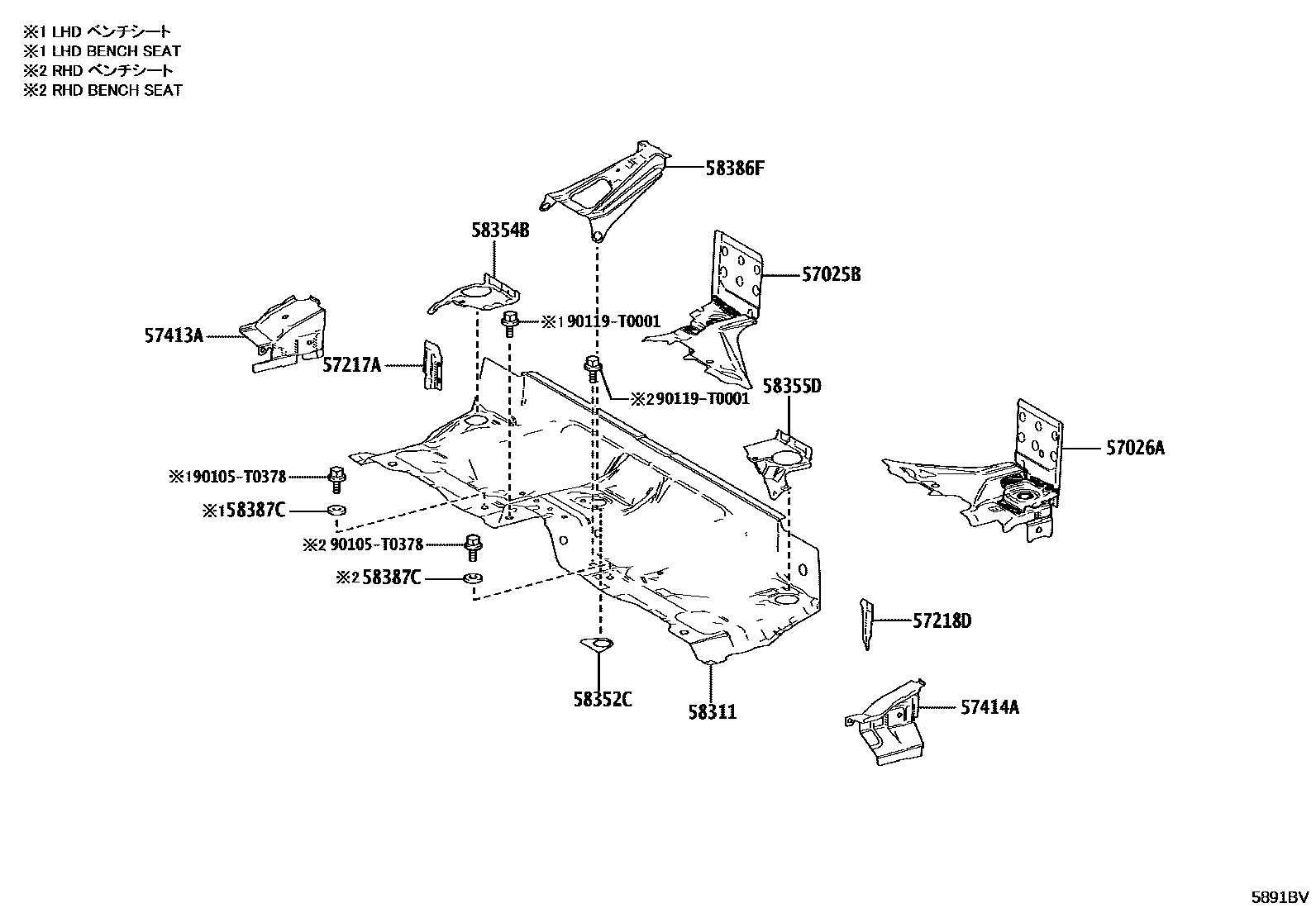

REAR FLOOR PANEL & REAR FLOOR MEMBER
57025BBRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
57026ABRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57217ABRACKET, BODY MOUNTING, NO.4 RH
57218DBRACKET, BODY MOUNTING, NO.4 LH
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
58311PAN, REAR FLOOR
58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2
58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4
58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5
58386FGUSSET, LOWER BACK PANEL, NO.2
58387CPLATE, REAR FLOOR FINISH
90105T0378
main90105-T0378
90119T0001
main90119-T0001
14 parts on this diagram · 1 diagram in section
