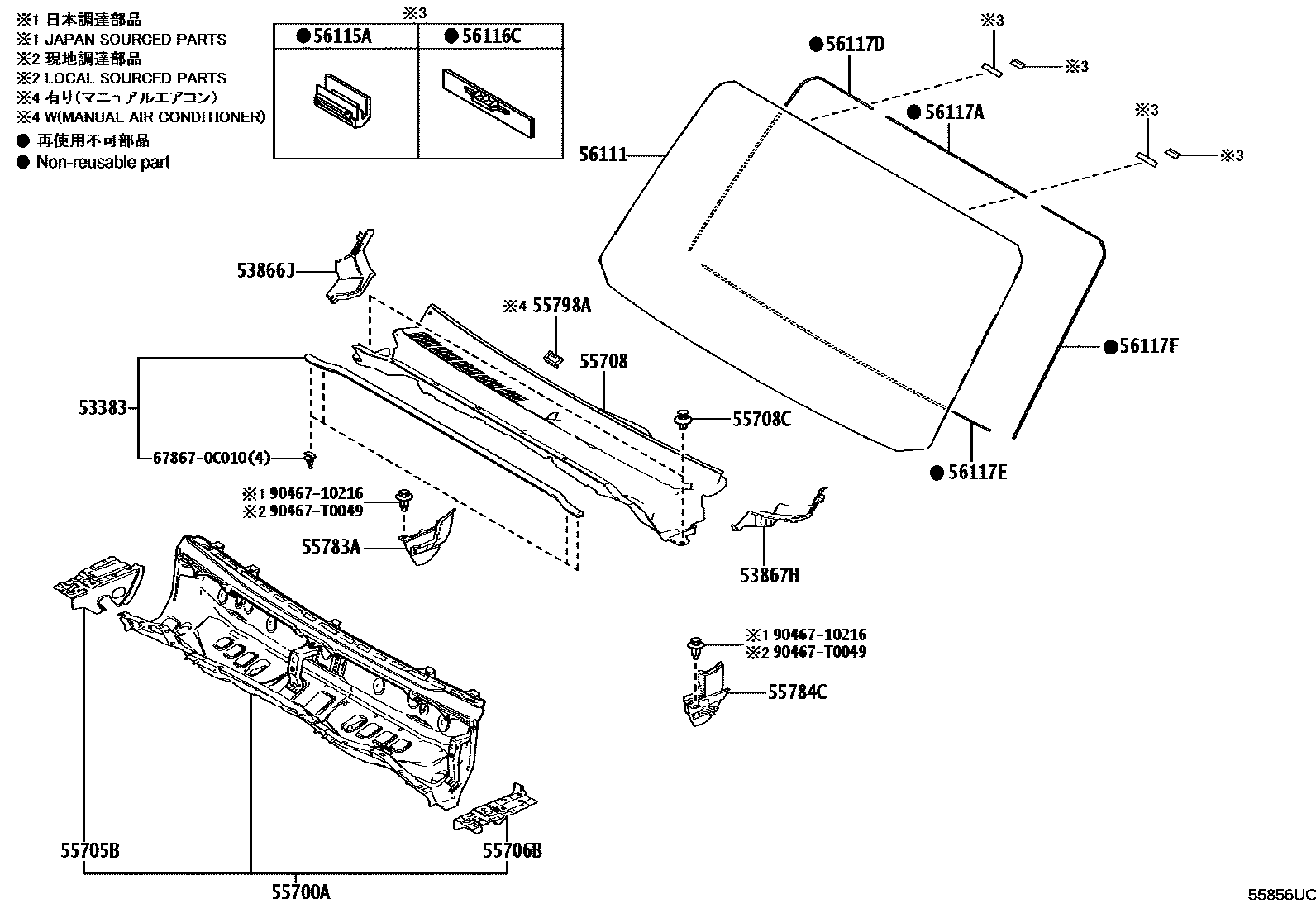

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55700APANEL ASSY, COWL TOP
FRONT AIR CONDITIONER-MANUAL COOLER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
FRONT AIR CONDITIONER-MANUAL COOLER
55708CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
55783APAD, COWL TOP SILENCER
55784CPAD, COWL TOP SILENCER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=630
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=825
56117EDAM, WINDOW GLASS ADHESIVE
L=1306
56117FDAM, WINDOW GLASS ADHESIVE
L=835
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
21 parts on this diagram · 2 diagrams in section
