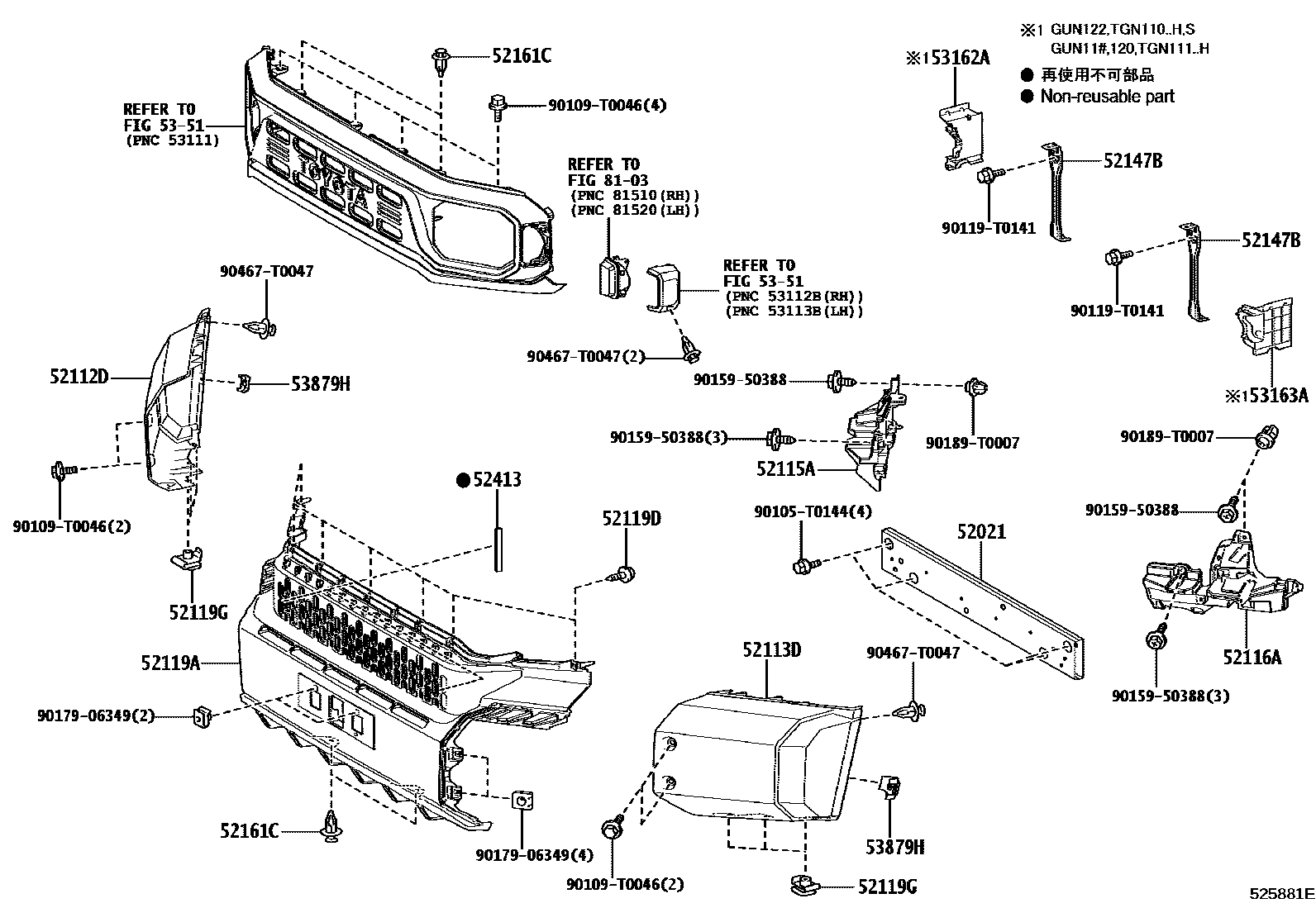

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-KK030iGUN12#,TGN110..PHL202312-202407

52112DEXTENSION, FRONT BUMPER, RH

main52112-0K320iGUN12#,TGN110..PHL202312-202407

NO PAINT REQ.

52113DEXTENSION, FRONT BUMPER, LH

main52113-0K320iGUN12#,TGN110..PHL202312-202407

NO PAINT REQ.

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0K160iGUN12#,TGN110..PHL202312-202407

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0K160iGUN12#,TGN110..PHL202312-202407

52119ACOVER, FRONT BUMPER

main52119-0KC50iGUN12#,TGN110..PHL202312-202407

NO PAINT REQ.

52119DSCREW, NO.1

main90167-50063iGUN12#,TGN110..PHL202312-202407

52119GCLIP, NO.1

main90467-05114iGUN12#,TGN110..PHL202312-202407

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-0K130iGUN12#,TGN110..PHL202312-202407

52161CPIECE, FRONT BUMPER

main52161-0K040iGUN12#,TGN110..PHL202312-202407

52413PAD, FRONT BUMPER GUARD

main52413-0K010iGUN12#,TGN110..PHL202312-202407

53162ADEFLECTOR, FRONT BUMPER STONE, RH

main53162-KK010iGUN12#,TGN110..PHL202312-202407

53163ADEFLECTOR, FRONT BUMPER STONE, LH

main53163-KK010iGUN12#,TGN110..PHL202312-202407

5351

53879HRETAINER, FRONT FENDER LINER

main53879-50020iGUN12#,TGN110..PHL202312-202407

8103

90105T0144

main90105-T0144

90109T0046

main90109-T0046

90119T0141

main90119-T0141

9015950388

main90159-50388

9017906349

main90179-06349

90189T0007

main90189-T0007

90467T0047

main90467-T0047

23 parts on this diagram · 1 diagram in section
