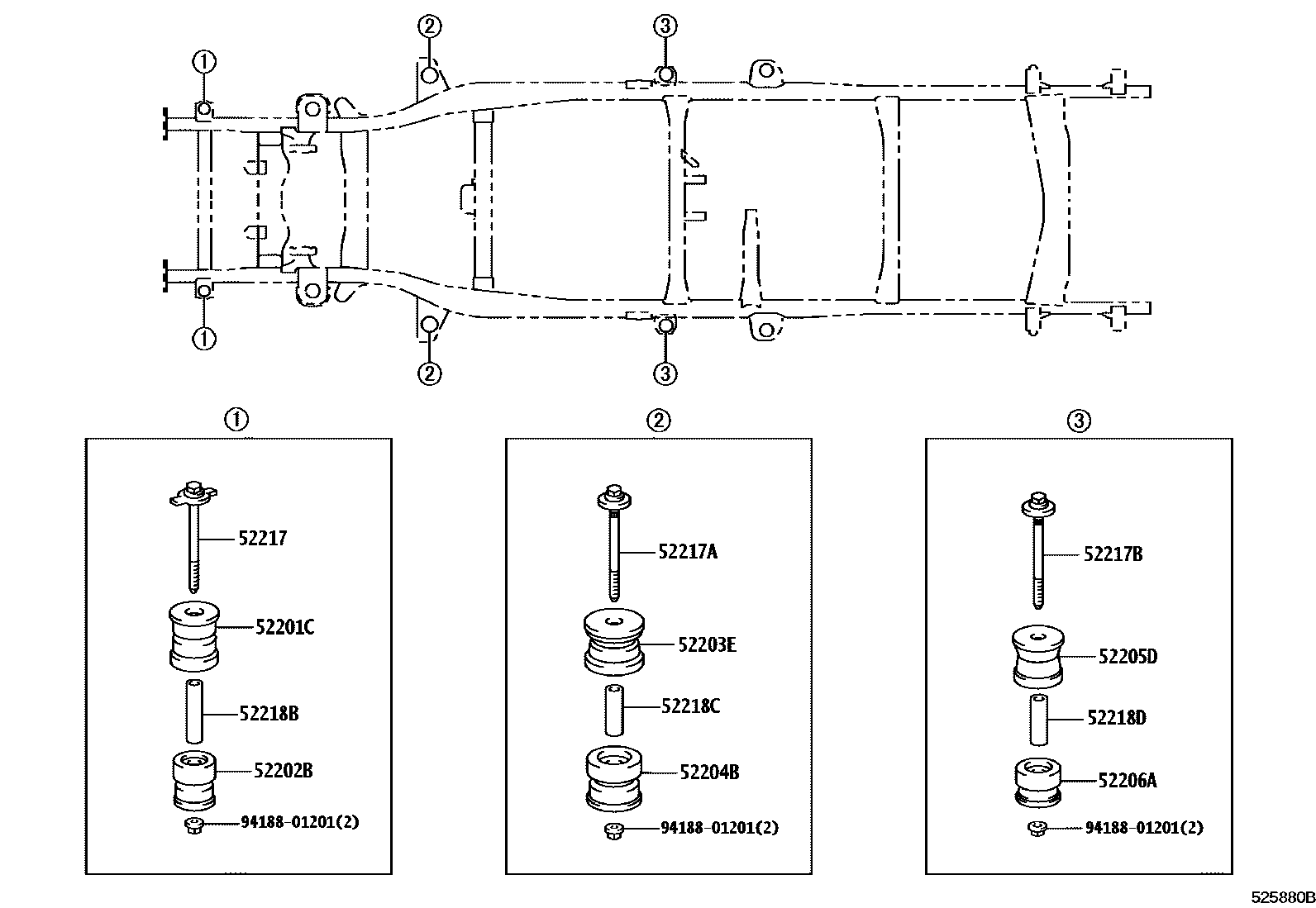

CAB MOUNTING & BODY MOUNTING
52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2
52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER
52217BOLT, BODY MOUNTING
52217ABOLT, BODY MOUNTING
52217BBOLT, BODY MOUNTING
52218BHOLDER, CAB MOUNT CUSHION, NO.1
52218CHOLDER, CAB MOUNT CUSHION, NO.2
52218DHOLDER, CAB MOUNT CUSHION, NO.3
9418801201
main94188-01201
13 parts on this diagram · 1 diagram in section
