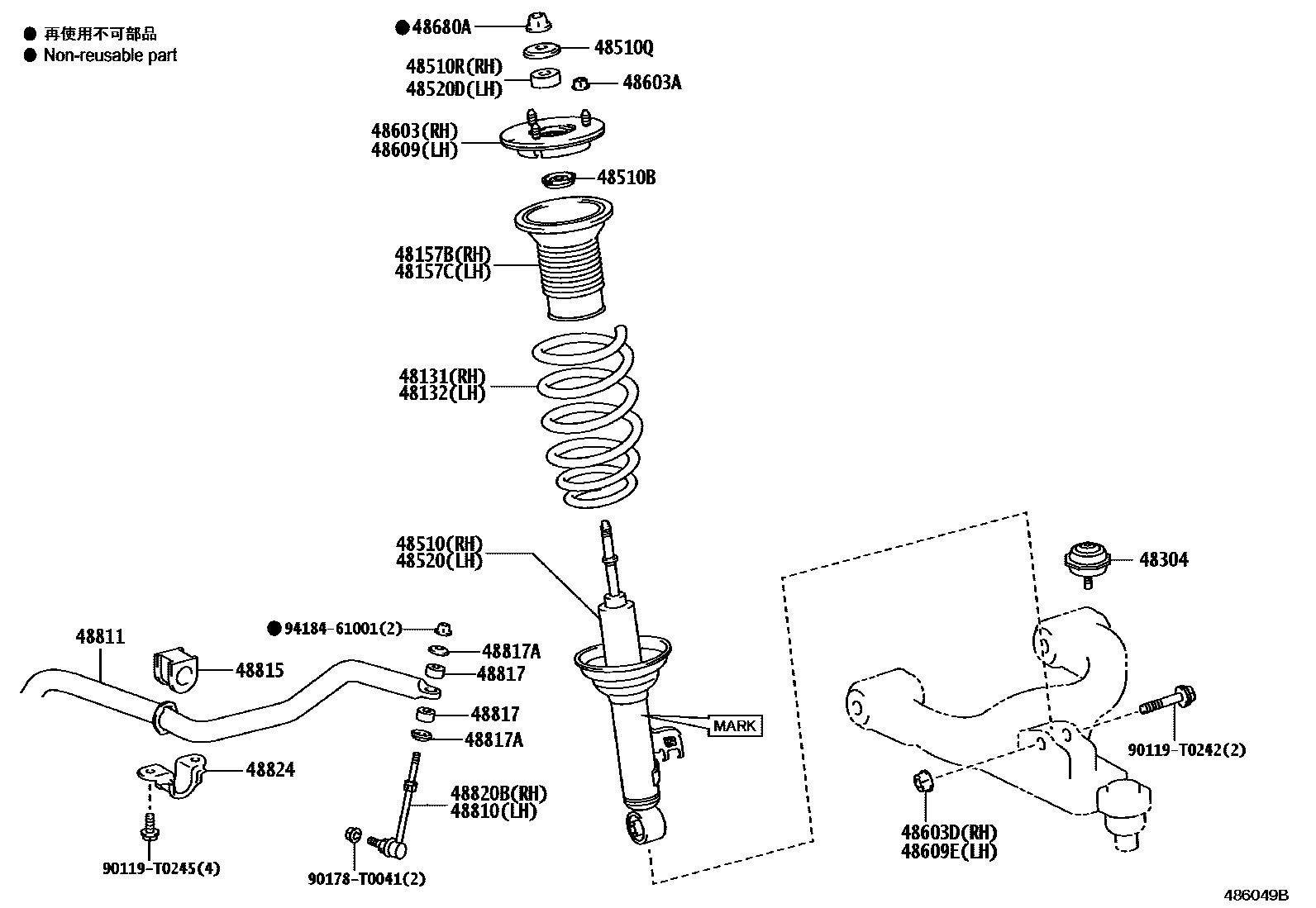

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0KE20
MARK 48510-0KE30
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-0K150
MARK 48520-0K160
48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48820BLINK ASSY, FRONT STABILIZER, RH
48824BRACKET, STABILIZER, FRONT
90119T0242
main90119-T0242
90119T0245
main90119-T0245
90178T0041
main90178-T0041
9418461001
main94184-61001
28 parts on this diagram · 1 diagram in section
