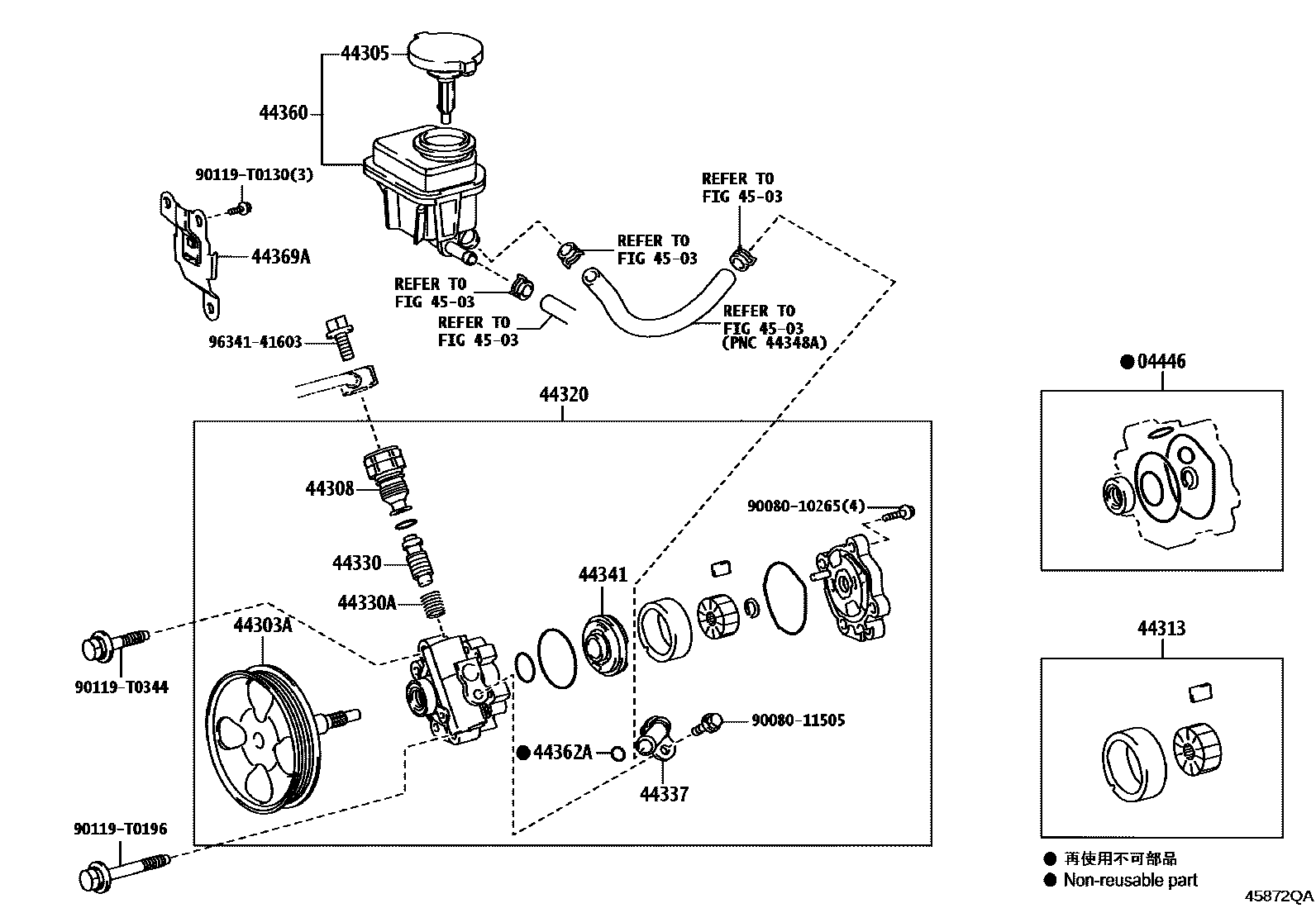

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-06110iGUN110,12#,TGN11#..LA,THAI202312

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iGUN110,12#,TGN11#..LA,THAI202312

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K030iGUN11#..IDN202409

main44305-22061iTGN11#..THAI202312

44308UNION SUB-ASSY, PRESSURE PORT

main44308-0K010iGUN110,12#,TGN11#..LA,THAI202312

44313ROTOR, VANE PUMP

main44313-09010iGUN12#,TGN110..PHL202312-202407

44320PUMP ASSY, VANE

main44310-0K010iTGN110..IDN202409

main44310-0K120iGUN110,12#..LA,THAI202312

44330VALVE ASSY, FLOW CONTROL

main44330-0K130iTGN110..PHL202312-202407

MARK A

main44330-0K140iTGN11#..THAI202312

MARK B

main44330-0K150iTGN110..IDN202409

MARK C

main44330-0K160iTGN11#..THAI202312

MARK D

main44330-0K170iTGN110..IDN202409

MARK E

main44330-0K180iTGN110..IDN202409

MARK F

main44330-0K250iGUN11#..IDN202409

MARK A

main44330-0K260iGUN11#..IDN202409

MARK B

main44330-0K270iGUN110,12#..LA,THAI202312

MARK C

main44330-0K280iGUN110,12#..LA,THAI202312

MARK D

main44330-0K290iGUN110,12#..LA,THAI202312

MARK E

main44330-0K300iGUN110,12#..LA,THAI202312

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-T0001iGUN12#,TGN110..PHL202312-202407

44337UNION, POWER STEERING SUCTION PORT

main44337-0K040iGUN12#..PHL202312-202407

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iGUN12#,TGN110..PHL202312-202407

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K050iGUN12#..PHL202312-202407

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90080-30093iGUN12#,TGN110..PHL202312-202407

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-0K010iGUN12#..PHL202312-202407

4503

9008010265

main90080-10265

9008011505

main90080-11505

90119T0130

main90119-T0130

90119T0196

main90119-T0196

90119T0344

main90119-T0344

9634141603

main96341-41603

20 parts on this diagram · 2 diagrams in section
