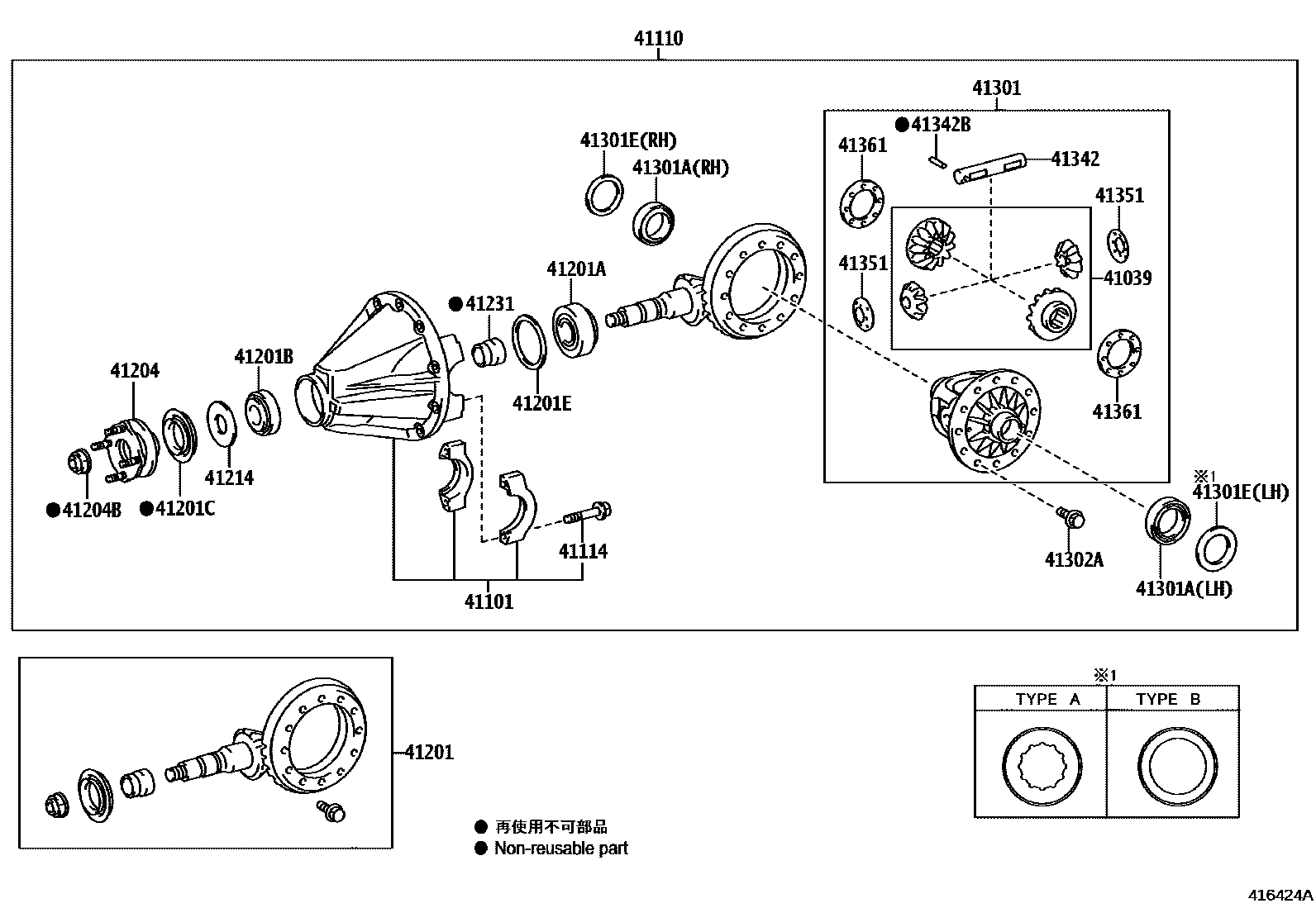

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:12=3.583
*FGR=41:10=4.100
*FGR=43:12=3.583
*FGR=41:9=4.555
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:12=3.583
*FGR=41:10=4.100
*FGR=41:9=4.555
*FGR=43:12=3.583
*FGR=43:12=3.583,THA SOURCED PARTS
*FGR=41:10=4.100,THA SOURCED PARTS
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
OD=47,T=1.70,TYPE B:REFER ILLUST.
OD=47,T=1.73,TYPE B:REFER ILLUST.
OD=47,T=1.76,TYPE B:REFER ILLUST.
OD=47,T=1.79,TYPE B:REFER ILLUST.
OD=47,T=1.82,TYPE B:REFER ILLUST.
OD=47,T=1.85,TYPE B:REFER ILLUST.
OD=47,T=1.88,TYPE B:REFER ILLUST.
OD=47,T=1.91,TYPE B:REFER ILLUST.
OD=47,T=1.94,TYPE B:REFER ILLUST.
OD=47,T=1.97,TYPE B:REFER ILLUST.
OD=47,T=2.00,TYPE B:REFER ILLUST.
OD=47,T=2.03,TYPE B:REFER ILLUST.
OD=47,T=2.06,TYPE B:REFER ILLUST.
OD=47,T=2.09,TYPE B:REFER ILLUST.
OD=47,T=2.12,TYPE B:REFER ILLUST.
OD=47,T=2.15,TYPE B:REFER ILLUST.
OD=47,T=2.18,TYPE B:REFER ILLUST.
OD=47,T=2.21,TYPE B:REFER ILLUST.
OD=47,T=2.24,MARK 01,TYPE B:REFER ILLUST.
OD=47,T=2.27,MARK 02,TYPE B:REFER ILLUST.
OD=47,T=2.30,MARK 03,TYPE B:REFER ILLUST.
OD=47,T=2.33,MARK 04,TYPE B:REFER ILLUST.
OD=52,T=1.70,TYPE A:REFER ILLUST.
OD=52,T=1.73,TYPE A:REFER ILLUST.
OD=52,T=1.76,TYPE A:REFER ILLUST.
OD=52,T=1.79,TYPE A:REFER ILLUST.
OD=52,T=1.82,TYPE A:REFER ILLUST.
OD=52,T=1.85,TYPE A:REFER ILLUST.
OD=52,T=1.88,TYPE A:REFER ILLUST.
OD=52,T=1.91,TYPE A:REFER ILLUST.
OD=52,T=1.94,TYPE A:REFER ILLUST.
OD=52,T=1.97,TYPE A:REFER ILLUST.
OD=52,T=2.00,TYPE A:REFER ILLUST.
OD=52,T=2.03,TYPE A:REFER ILLUST.
OD=52,T=2.06,TYPE A:REFER ILLUST.
OD=52,T=2.09,TYPE A:REFER ILLUST.
OD=52,T=2.12,TYPE A:REFER ILLUST.
OD=52,T=2.15,TYPE A:REFER ILLUST.
OD=52,T=2.18,TYPE A:REFER ILLUST.
OD=52,T=2.21,TYPE A:REFER ILLUST.
OD=52,T=2.24,TYPE A:REFER ILLUST.
OD=52,T=2.27,TYPE A:REFER ILLUST.
OD=52,T=2.30,TYPE A:REFER ILLUST.
OD=52,T=2.33,TYPE A:REFER ILLUST.
T=1.72
T=1.74
T=1.76
T=1.78
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=1.92
T=1.94
T=1.96
T=1.98
T=2.00
T=2.02
T=2.04
T=2.06
T=2.08
T=2.10
T=2.12
T=2.14
T=2.16
T=2.18
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5
OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
LH
RH
41301ESHIM(FOR DIFFERENTIAL CASE)
T=2.58,MARK 01,LH,TYPE A:REF.ILL.
T=2.64,MARK 03,LH,TYPE A:REF.ILL.
T=2.60,MARK 32,LH,TYPE A:REF.ILL.
T=2.62,MARK 33,LH,TYPE A:REF.ILL.
T=2.66,MARK 34,LH,TYPE A:REF.ILL.
T=2.68,MARK 35,LH,TYPE A:REF.ILL.
T=2.42,MARK 62,LH,TYPE A:REF.ILL.
T=2.44,MARK 63,LH,TYPE A:REF.ILL.
T=2.46,MARK 64,LH,TYPE A:REF.ILL.
T=2.48,MARK 65,LH,TYPE A:REF.ILL.
T=2.50,MARK 66,LH,TYPE A:REF.ILL.
T=2.52,MARK 67,LH,TYPE A:REF.ILL.
T=2.54,MARK 68,LH,TYPE A:REF.ILL.
T=2.56,MARK 69,LH,TYPE A:REF.ILL.
T=2.08,MARK 71,LH,TYPE A:REF.ILL.
T=2.10,MARK 72,LH,TYPE A:REF.ILL.
T=2.12,MARK 73,LH,TYPE A:REF.ILL.
T=2.14,MARK 74,LH,TYPE A:REF.ILL.
T=2.16,MARK 75,LH,TYPE A:REF.ILL.
T=2.18,MARK 76,LH,TYPE A:REF.ILL.
T=2.20,MARK 77,LH,TYPE A:REF.ILL.
T=2.22,MARK 78,LH,TYPE A:REF.ILL.
T=2.24,MARK 79,LH,TYPE A:REF.ILL.
T=2.26,MARK 80,LH,TYPE A:REF.ILL.
T=2.28,MARK 81,LH,TYPE A:REF.ILL.
T=2.30,MARK 82,LH,TYPE A:REF.ILL.
T=2.32,MARK 83,LH,TYPE A:REF.ILL.
T=2.34,MARK 84,LH,TYPE A:REF.ILL.
T=2.36,MARK 85,LH,TYPE A:REF.ILL.
T=2.38,MARK 86,LH,TYPE A:REF.ILL.
T=2.40,MARK 87,LH,TYPE A:REF.ILL.
T=2.08,LH,TYPE B:REF.ILL.
T=2.10,LH,TYPE B:REF.ILL.
T=2.12,LH,TYPE B:REF.ILL.
T=2.14,LH,TYPE B:REF.ILL.
T=2.16,LH,TYPE B:REF.ILL.
T=2.18,LH,TYPE B:REF.ILL.
T=2.20,LH,TYPE B:REF.ILL.
T=2.22,LH,TYPE B:REF.ILL.
T=2.24,LH,TYPE B:REF.ILL.
T=2.26,LH,TYPE B:REF.ILL.
T=2.28,LH,TYPE B:REF.ILL.
T=2.30,LH,TYPE B:REF.ILL.
T=2.32,LH,TYPE B:REF.ILL.
T=2.34,LH,TYPE B:REF.ILL.
T=2.36,LH,TYPE B:REF.ILL.
T=2.38,LH,TYPE B:REF.ILL.
T=2.40,LH,TYPE B:REF.ILL.
T=2.42,LH,TYPE B:REF.ILL.
T=2.44,LH,TYPE B:REF.ILL.
T=2.46,LH,TYPE B:REF.ILL.
T=2.48,LH,TYPE B:REF.ILL.
T=2.50,LH,TYPE B:REF.ILL.
T=2.52,LH,TYPE B:REF.ILL.
T=2.54,LH,TYPE B:REF.ILL.
T=2.56,LH,TYPE B:REF.ILL.
T=2.58,LH,TYPE B:REF.ILL.
T=2.60,LH,TYPE B:REF.ILL.
T=2.62,LH,TYPE B:REF.ILL.
T=2.64,LH,TYPE B:REF.ILL.
T=2.66,LH,TYPE B:REF.ILL.
T=2.68,LH,TYPE B:REF.ILL.
T=2.06,RH
T=2.08,RH
T=2.10,RH
T=2.12,RH
T=2.14,RH
T=2.16,RH
T=2.18,RH
T=2.20,RH
T=2.22,RH
T=2.24,RH
T=2.26,RH
T=2.28,RH
T=2.30,RH
T=2.32,RH
T=2.34,RH
T=2.36,RH
T=2.38,RH
T=2.40,RH
T=2.42,RH
T=2.44,RH
T=2.46,RH
T=2.48,RH
T=2.50,RH
T=2.52,RH
T=2.54,RH
T=2.56,RH
T=2.58,RH
T=2.60,RH
T=2.62,RH
T=2.64,RH
T=2.66,RH
T=2.68,RH
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41342SHAFT, REAR DIFFERENTIAL PINION
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
(L)
(J)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
21 parts on this diagram · 3 diagrams in section
