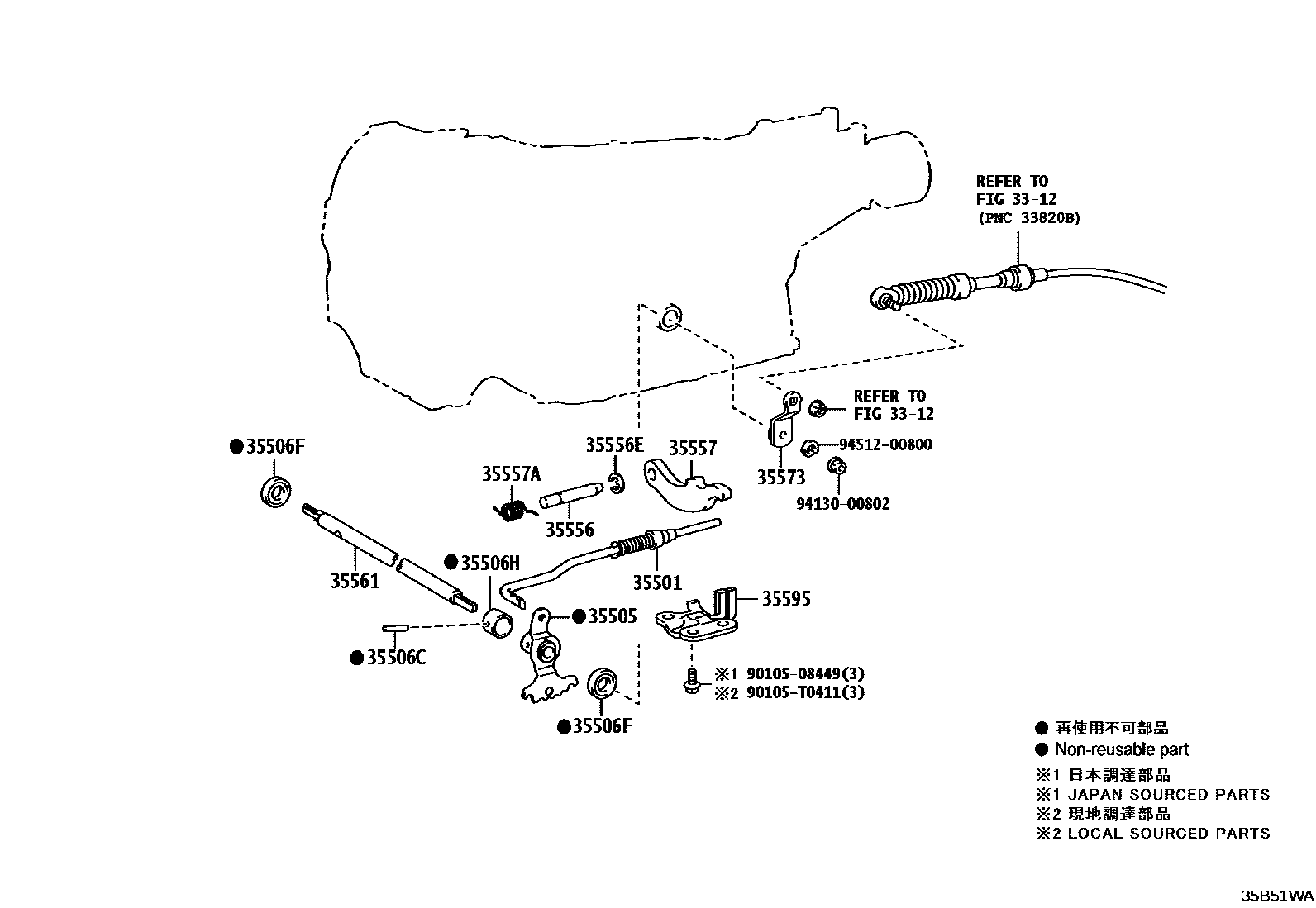

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-71020iGUN120..IV3¥1,610202312-202407

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-71020iGUN120..IV3¥1,430202312-202407

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGUN120..IV3¥160202312-202407

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGUN120..IV3¥270202312-202407

(J)

main90311-T0093iGUN120..IV3¥190202312-202407

(L)

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGUN120..IV3¥210202312-202407

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGUN110,120,TGN111..THAI¥380202312-202407

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGUN110,120,TGN111..THAI¥110202312-202407

35557PAWL, PARKING LOCK

main35557-71010iGUN120..IV3¥2,810202312-202407

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGUN120..IV3¥120202312-202407

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGUN110,120,TGN111..THAI¥1,860202312-202407

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-0K010iGUN120..IV3202312-202407

(L)

main35573-71010iGUN110,120,TGN111..THAI¥510202312-202407

(J)

35595BRACKET, PARKING LOCK PAWL

main35595-71010iGUN110..IDN¥800202312-202407

9010508449

main90105-08449¥80

90105T0411

main90105-T0411

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

17 parts on this diagram · 1 diagram in section
