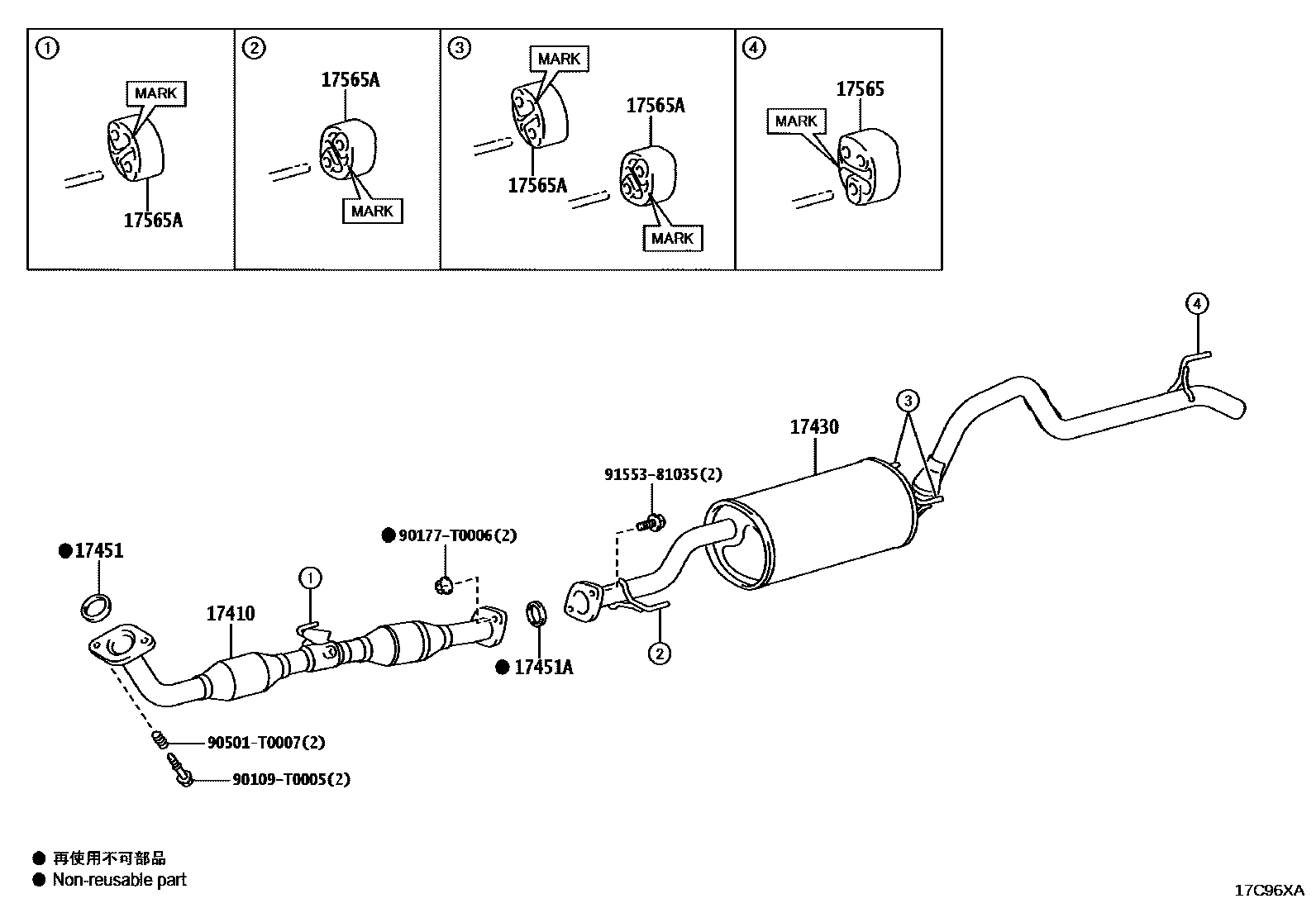

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-0C521i1TR..TGN110..THAI202312

main17401-0C591i1TR..TGN110..IDN202312-202408

main17401-0C622i2TR..TGN111202312

main17401-0L180i2GD..GUN11#..IDN202312-202408

main17401-0L190i2GD..GUN110,12#..THAI202312

17430PIPE ASSY, EXHAUST, TAIL

main17430-0C190i1TR..TGN110..PHL202312-202408

main17430-0E080i2GD..GUN110..THAI202312

main17430-0L060i2GD..GUN12#..THAI202312

main17430-0L070i2GD..GUN122..LA202312-202408

main17430-0L120i2GD..GUN11#..IDN202409

17451GASKET, EXHAUST PIPE

main17451-0L050i2GD,1TR..GUN11#,TGN110..IDN202312-202408

17451AGASKET, EXHAUST PIPE, NO.2

main90917-T6002i2GD,1TR..GUN12#,TGN110..PHL202312-202408

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0L100i2GD,1TR..GUN12#,TGN110..PHL202312-202408

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0P240i2GD..GUN12#..PHL202312-202408

90109T0005

main90109-T0005

90177T0006

main90177-T0006

90501T0007

main90501-T0007

9155381035

main91553-81035

10 parts on this diagram · 2 diagrams in section
