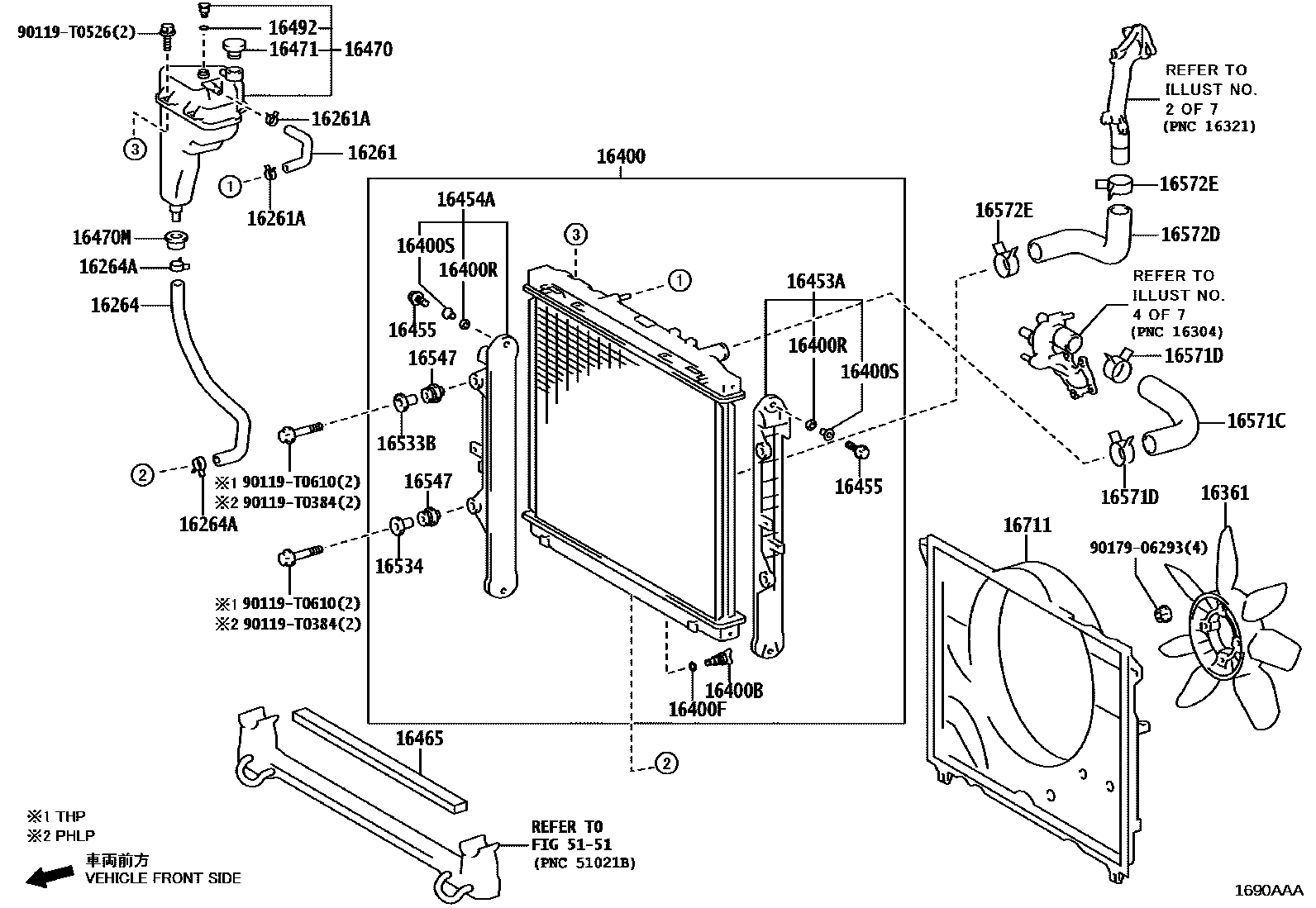

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

16261HOSE, WATER BY-PASS

main16261-0L121i2GD..GUN12#..PHL202312-202407

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90466-T0069i2GD..GUN12#..PHL202312-202407

(L)

main96136-51901i2GD..GUN12#..PHL202312-202407

(J)

16264HOSE, WATER BY-PASS, NO.2

main16264-0L110i2GD..GUN12#..PHL202312-202407

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-T0031i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

16361FAN

main16361-0C011i1TR..TGN110..PHL202312-202407

main16361-0L020i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

16400RADIATOR ASSY

main16400-0C400i1TR..TGN110..IDN202312-202407

main16400-0C520i2TR..TGN111202312

main16400-0L363i2GD..GUN110,120..RHD202312-202407

main16400-0L433i2GD..GUN112,122..IDN,LA,THAI202312-202407

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060i2GD..GUN12#..PHL202312-202407

(L)

main16492-0L060i1TR..TGN110..IDN202409

16400RBUSHING(FOR RADIATOR)

main16444-0L060i2GD..GUN12#..PHL202312-202407

16400SCOLLAR(FOR RADIATOR)

main16445-0C180i2GD..GUN12#..PHL202312-202407

16453APLATE, RADIATOR SIDE SUPPORT, RH

main16453-0L361i1TR,2TR..TGN11#..THAI202312-202407

main16453-0L430i2GD..GUN12#..PHL202312-202407

16454APLATE, RADIATOR SIDE SUPPORT, LH

main16454-0L361i1TR..TGN110..PHL202312-202407

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820i1TR..TGN110..PHL202312-202407

16465PACKING, RADIATOR

main88619-0K010i2GD..GUN12#..PHL202312-202407

16470TANK ASSY, RADIATOR RESERVE

main16470-0C170i1TR..TGN110..PHL202312-202407

main16470-0L083i2GD..GUN12#..PHL202312-202407

16470MGROMMET

main90480-T0003i1TR..TGN110..PHL202312-202407

main90480-T0004i2GD..GUN12#..PHL202312-202407

16471CAP SUB-ASSY, RESERVE TANK

main16405-0C150i1TR..TGN110..PHL202312-202407

main16475-28140i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

16492RING, O(FOR RADIATOR RESERVE TANK COCK)

main16492-0L060i2GD..GUN12#..PHL202312-202407

16533BSUPPORT, RADIATOR, NO.1

main16533-0L010i1TR..TGN110..PHL202312-202407

sub16533-0L020

16534SUPPORT, RADIATOR, NO.2

main16534-0L010i1TR..TGN110..PHL202312-202407

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-0L010i2GD..GUN12#..PHL202312-202407

16571CHOSE, RADIATOR, NO.1

main16571-0C160i1TR..TGN110..PHL202312-202407

main16571-0L150i2GD..GUN12#..PHL202312-202407

16571DCLIP, RADIATOR HOSE, NO.1

main90466-T0024i2GD..GUN12#..PHL202312-202407

main90466-T0028i1TR..TGN110..IDN202312-202407

16572DHOSE, RADIATOR, NO.2

main16572-0C160i1TR..TGN110..IDN202312-202407

main16572-0L150i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

16572ECLIP, RADIATOR HOSE, NO.2

main90466-T0024i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

main90466-T0028i1TR,2TR..TGN11#..THAI202312-202407

16711SHROUD, FAN

main16711-0C180i1TR..TGN110..PHL202312-202407

main16711-0L140i2GD..GUN12#..PHL202312-202407

5151

90119T0384

main90119-T0384

90119T0526

main90119-T0526

90119T0610

main90119-T0610

9017906293

main90179-06293

31 parts on this diagram · 9 diagrams in section
