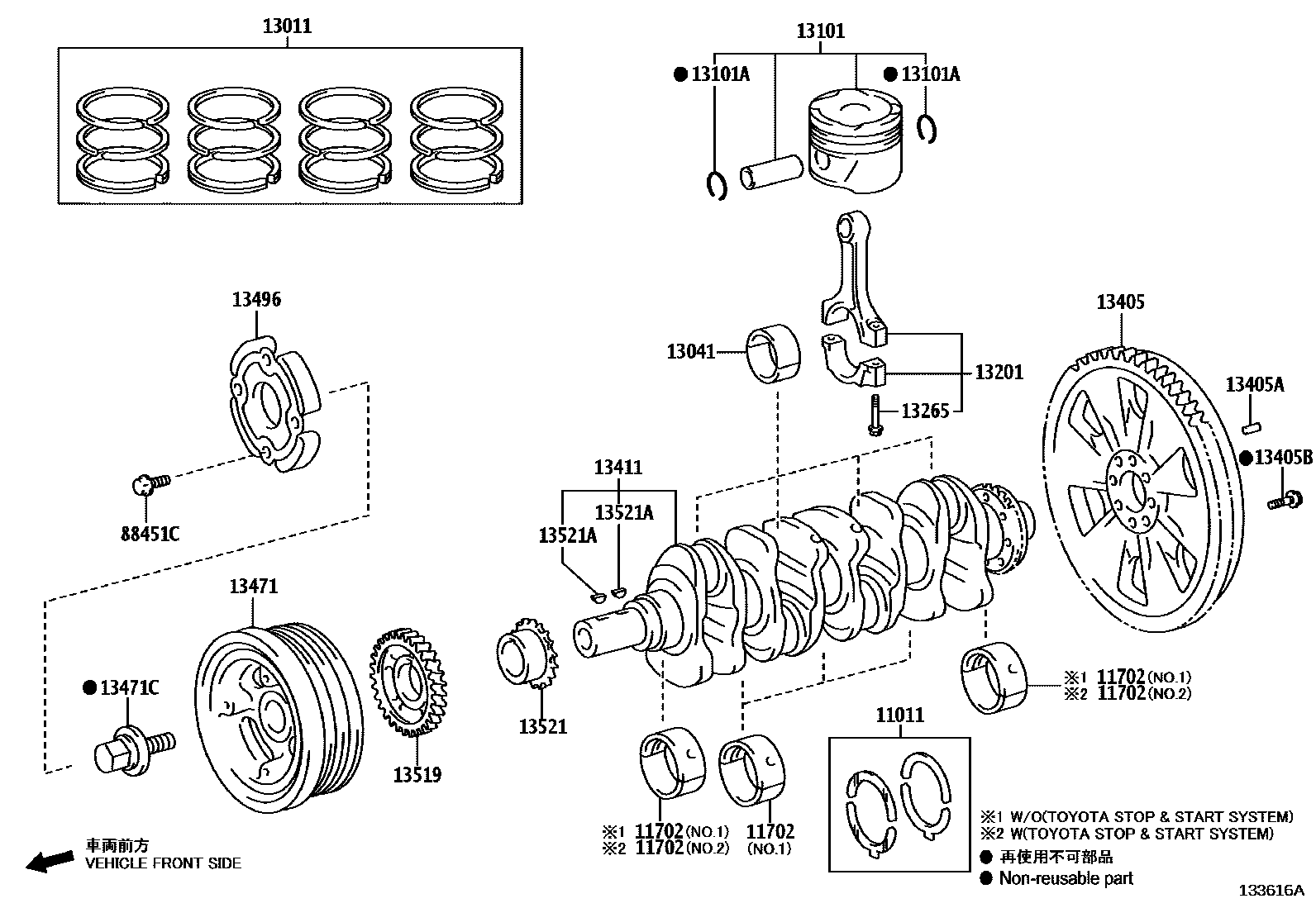

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
MARK 2
MARK 3
MARK 4
MARK 5,NO.1,REFER R/M
MARK 6
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK 6,NO.2,REFER R/M
13011RING SET, PISTON
STD,(L)
STD,(L)
STD
STD,(J)
STD,(J)
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
IDN SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
MARK A,(L),REFER R/M
MARK B,(L),REFER R/M
MARK C,(L),REFER R/M
MARK A,(J),REFER TO ILLUST
MARK B,(J),REFER TO ILLUST
MARK C,(J),REFER TO ILLUST
13265BOLT, CONNECTING ROD
IDN SOURCED PARTS
THA SOURCED PARTS
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=22,OD=10
L=23,OD=8
L=15,OD=5
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
13496COVER, CRANKSHAFT PULLY
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
88451CBOLT, FLANGE W/WASHER
19 parts on this diagram · 4 diagrams in section
