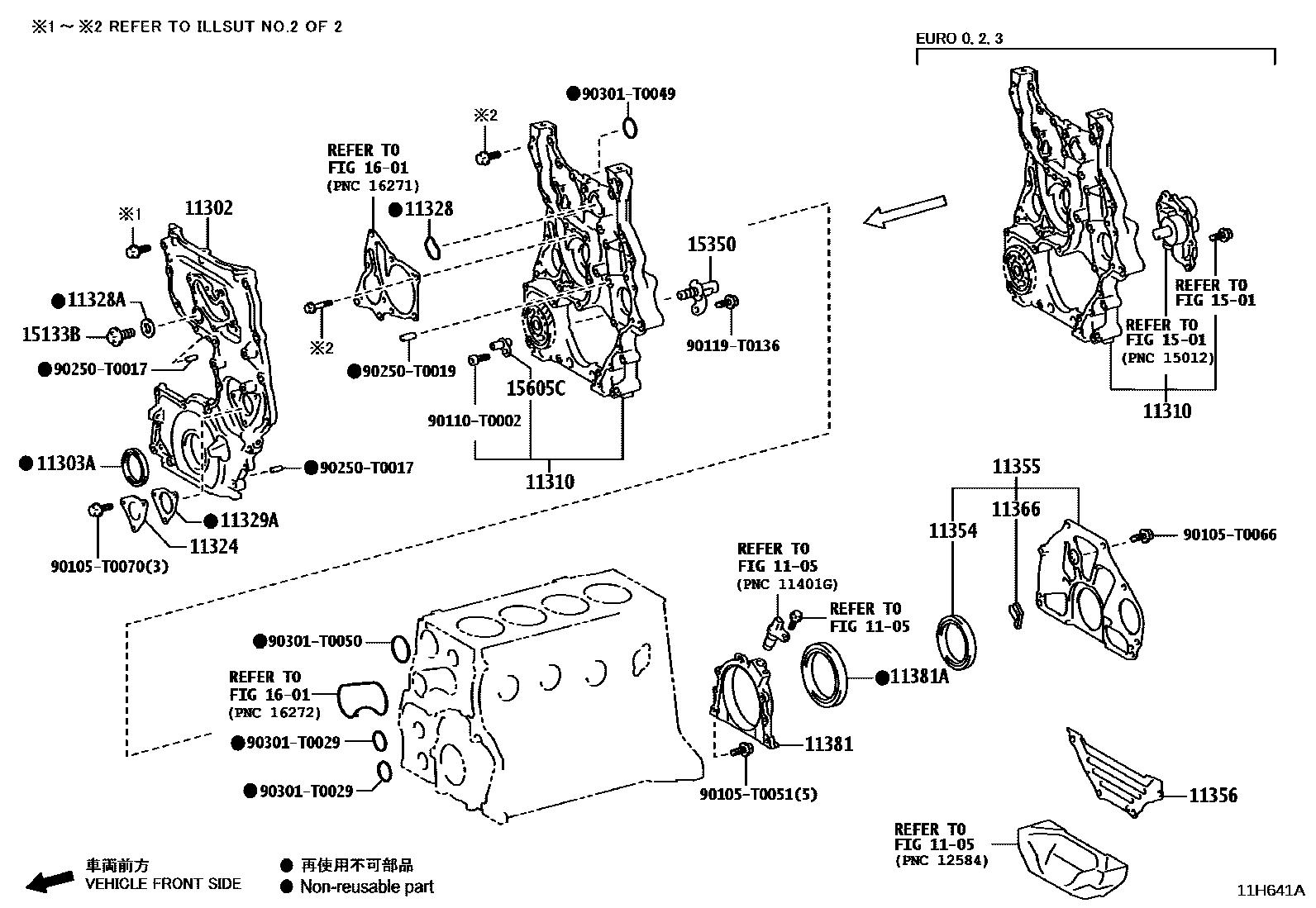

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

1105

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-0E010i2GD..GUN12#..PHL202312-202407

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-T0054i2GD..GUN12#..PHL202312-202407

main90311-T0100i1TR..TGN110..PHL202312-202407

11310COVER ASSY, TIMING CHAIN

main11310-0C030i1TR..TGN110..IDN202409

main11310-0C040i2TR..TGN111202312

main11310-0E010i2GD..GUN12#..PHL202312-202407

main11310-0E040i2GD..GUN110,12#..THAI202312-202504

11324PLATE, TIMING CHAIN COVER

main11324-0C010i1TR..TGN110..PHL202312-202407

main11324-0E010i2GD..GUN12#..PHL202312-202407

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0C010i1TR..TGN110..IDN202409

main11328-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i2GD..GUN12#..PHL202312-202407

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-0E010i2GD..GUN12#..PHL202312-202407

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0L020i2GD..GUN12#..PHL202312-202407

11355PLATE, REAR END

main11355-0C020i1TR,2TR..TGN11#..THAI202312

(L)

main11355-0E010i2GD..GUN110,120..RHD202312

main11355-0E040i2GD..GUN122..PHL202312-202407

main11355-75021i1TR,2TR..TGN11#..THAI202312

(J)

11356PLATE, REAR END, NO.2

main11356-0L012i2GD..GUN12#..PHL202312-202407

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-0E010i2GD..GUN112,122..IDN,LA,THAI202312

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0C022i1TR..TGN110..PHL202312-202407

main11381-0E010i2GD..GUN12#..PHL202312-202407

11381ASEAL, ENGINE REAR OIL

main90311-T0046i2GD..GUN12#..PHL202312-202407

main90311-T0098i1TR..TGN110..IDN202409

1501

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i2GD..GUN12#..PHL202312-202407

15350VALVE ASSY, OIL PRESSURE SWITCHING

main15350-11010i2GD..GUN110,12#..THAI202312

15605CVALVE SUB-ASSY, OIL CHECK

main15605-30040i2GD..GUN110,12#..THAI202312

1601

90105T0051

main90105-T0051

90105T0066

main90105-T0066

90105T0070

main90105-T0070

90110T0002

main90110-T0002

90119T0136

main90119-T0136

90250T0017

main90250-T0017

90250T0019

main90250-T0019

90301T0029

main90301-T0029

90301T0049

main90301-T0049

90301T0050

main90301-T0050

29 parts on this diagram · 4 diagrams in section
