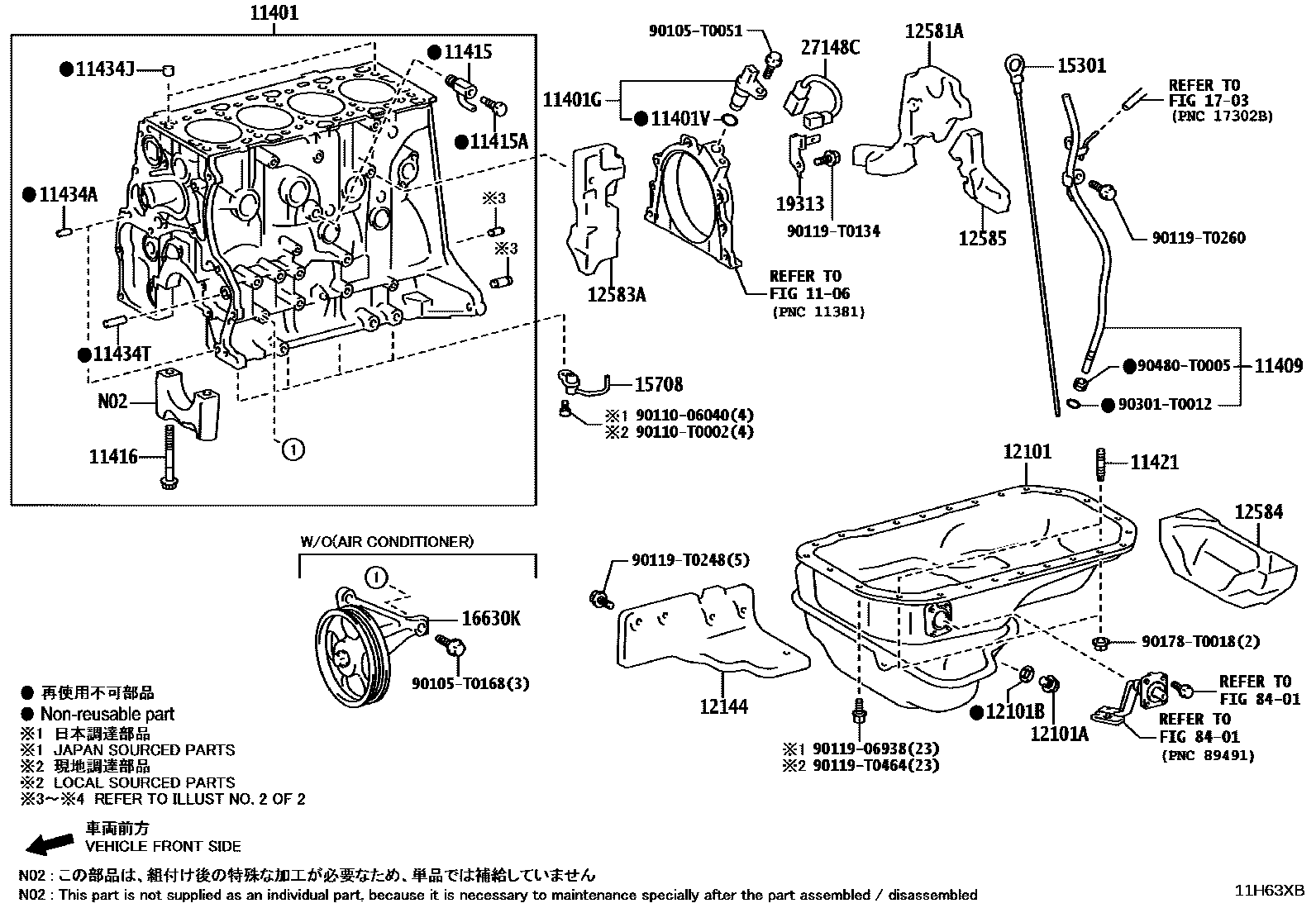

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

1106

11401BLOCK SUB-ASSY, CYLINDER

main11401-09841i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

main11401-09890i1TR..TGN110..THAI202312-202407

main11401-09A61i2TR..TGN111202312

11401GSENSOR, CRANK POSITION

main90919-05073i2GD..GUN12#..PHL202312-202407

11401VO-RING, CRANK POSITION SENSOR

main90301-14016i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-0E011i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09128i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

main90910-09129i1TR..TGN110..PHL202312-202407

main90910-T9002i2TR..TGN111202312

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1TR..TGN110..PHL202312-202407

(J)

main90910-09087i1TR..TGN110..IDN202409

main90910-T9001i2TR..TGN111202312-202407

(L)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-T2002i1TR..TGN110..PHL202312-202407

(L)

main90910-T2009i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

11421BOLT, STUD(FOR OIL PAN)

main90126-06028i1TR,2TR..TGN11#..THAI202312-202407

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-T0007i2GD..GUN12#..PHL202312-202407

L=18,OD=8

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-T0002i2GD..GUN12#..PHL202312-202407

main90253-T0007i1TR..TGN110..IDN202312-202407

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i2GD..GUN12#..PHL202312-202407

(J)

main90250-T0019i2GD..GUN12#..PHL202312-202407

(L)

12101PAN SUB-ASSY, OIL

main12101-0C030i1TR..TGN110..PHL202312-202407

IDN SOURCED PARTS

main12101-0C040i1TR..TGN110..IDN202312-202407

THA SOURCED PARTS

main12101-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202506

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1TR..TGN110..PHL202312-202407

main90341-T0004i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2GD..GUN12#..PHL202312-202407

main90430-12031i1TR..TGN110..PHL202312-202407

(J)

main90430-T0024i1TR,2TR..TGN11#..THAI202312-202407

(L)

12144SILENCER, OIL PAN COVER

main12144-0E010i2GD..GUN12#..PHL202312-202407

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-0E010i2GD..GUN12#..PHL202312-202407

12583AINSULATOR, CYLINDER BLOCK, NO.3

main12583-0E010i2GD..GUN12#..PHL202312-202407

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-0E011i2GD..GUN12#..PHL202312-202407

12585INSULATOR, CYLINDER BROCK, NO.5

main12585-0E010i2GD..GUN12#..PHL202312-202407

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0C020i1TR..TGN110..IDN202312-202407

THA SOURCED PARTS

main15301-0C030i1TR,2TR..TGN11#..THAI202312-202407

IDN SOURCED PARTS

main15301-0E011i2GD..GUN12#..PHL202312-202407

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0C010i1TR,2TR..TGN11#..THAI202312-202407

(L)

main15708-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

main15708-75020i1TR,2TR..TGN11#..THAI202312-202407

(J)

16630KPULLEY ASSY, IDLER

main16630-0E010i2GD..GUN112..S202409

1703

19313BRACKET, CRANK POSITION SENSOR HARNESS

main19313-0E010i2GD..GUN12#..PHL202312-202407

27148CWIRE, CONNECTING

main27148-0E010i2GD..GUN11#,12#..IDN,LA,THAI202312-202407

8401

90105T0051

main90105-T0051

90105T0168

main90105-T0168

9011006040

main90110-06040

90110T0002

main90110-T0002

9011906938

main90119-06938

90119T0134

main90119-T0134

90119T0248

main90119-T0248

90119T0260

main90119-T0260

90119T0464

main90119-T0464

90178T0018

main90178-T0018

90301T0012

main90301-T0012

90480T0005

main90480-T0005

39 parts on this diagram · 4 diagrams in section
