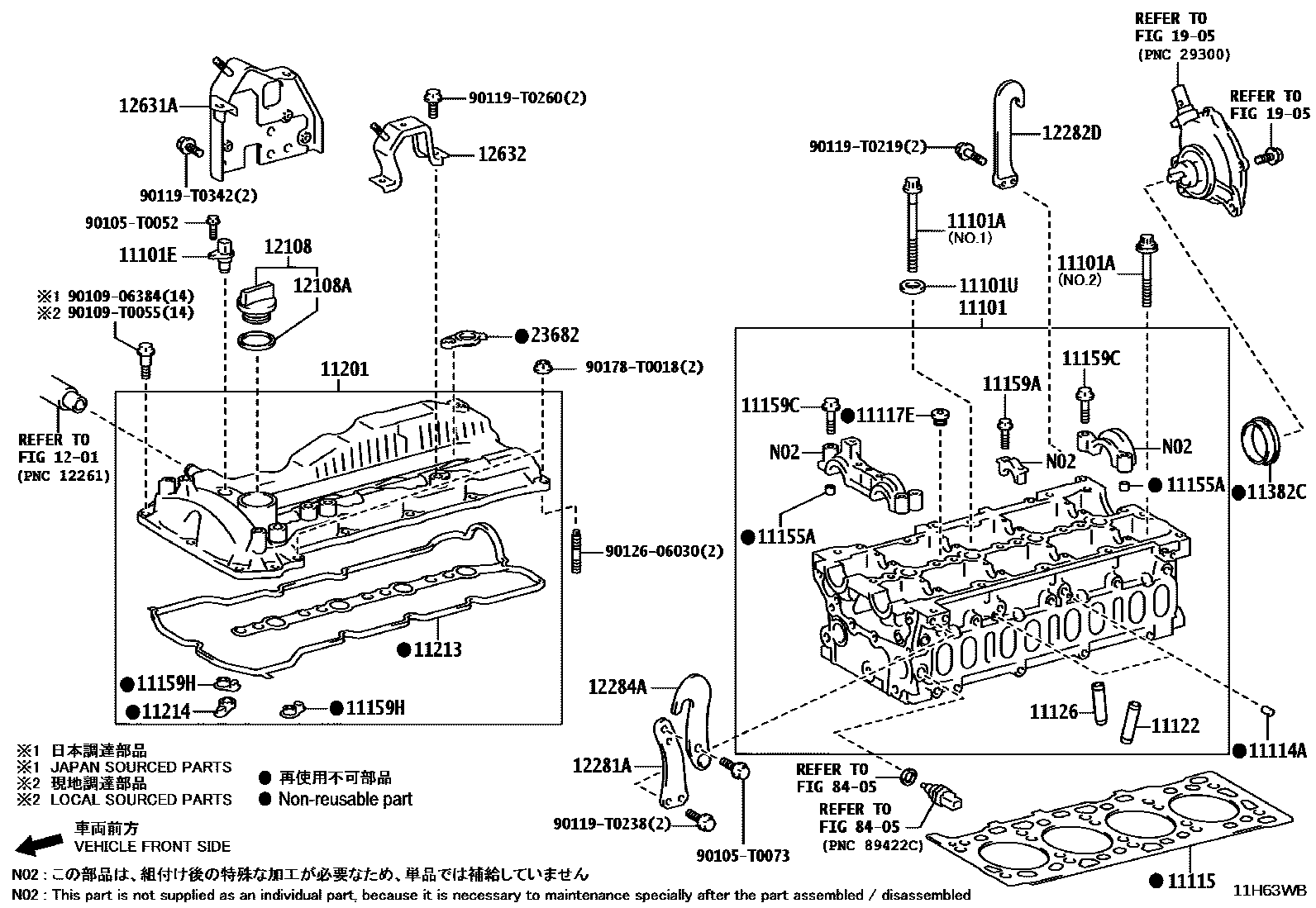

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1
NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
11114APIN, STRAIGHT
L=8,OD=5
11115GASKET, CYLINDER HEAD
(L)
(L)
MARK A,(L),REFER R/M
MARK B,(L),REFER R/M
MARK C,(L),REFER R/M
MARK D,(L),REFER R/M
MARK E,(L),REFER R/M
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
MARK D,(J),REFER R/M
MARK E,(J),REFER R/M
(J)
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
STD
O/S 0.05
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(J)
(L)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1,(L)
NO.1,(J)
NO.2,(L)
NO.2,(J)
NO.3,(L)
NO.3,(J)
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
(J)
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
11214GASKET, CYLINDER HEAD COVER, NO.2
11382CRETAINER, CAMSHAFT OIL SEAL
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
(J)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
12284AHANGER, ENGINE, NO.1 UPPER
12631ABRACKET, ENGINE COVER
12632BRACKET, ENGINE COVER, NO.2
1905
23682GASKET, NOZZLE HOLDER
8405
90105T0052
main90105-T0052
90105T0073
main90105-T0073
9010906384
90109T0055
main90109-T0055
90119T0219
main90119-T0219
90119T0238
90119T0260
main90119-T0260
90119T0342
main90119-T0342
9012606030
90178T0018
38 parts on this diagram · 2 diagrams in section
