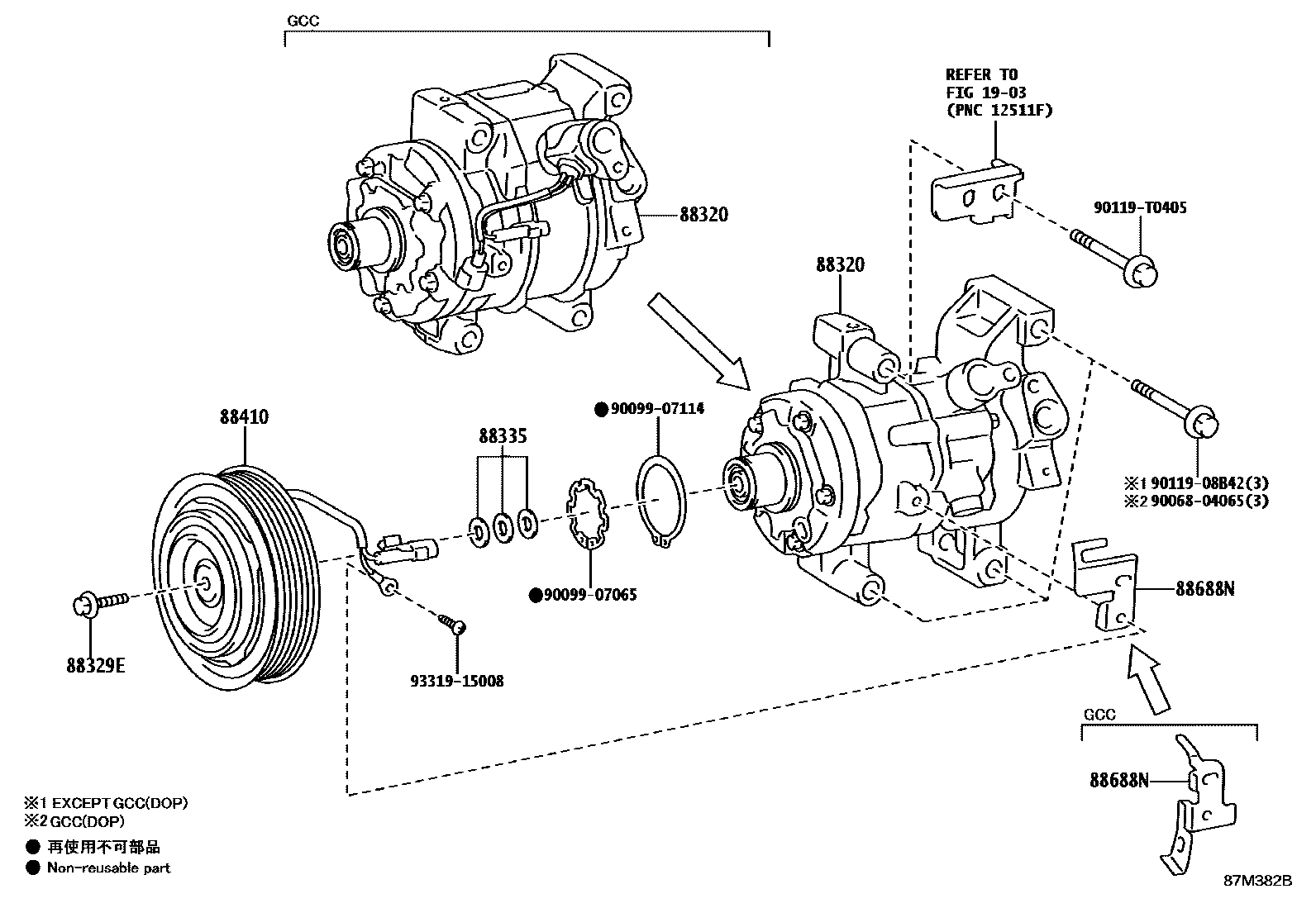

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1903

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN126..MHV..(ARL,LA);TGN126..THP..(GEN,LA);GUN12#,13#,TGN121,136..THP..(DCRL,HTWC)..(ARL,GEN,IDN,LA,PH,SA,TH,TWN,VN)202308-202407

main88320-0K530iGUN122,125,126..GCC202308-202407

main88320-0K550iTGN12#..GCC202308-202407

main88320-0K590iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main88320-0K760iGGN125..GCC202308-202407

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGUN125,126..CAMP,MAP,MMRP202308-202408

88335GASKET KIT, OVERHAUL

main88335-14020iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

88410CLUTCH ASSY, MAGNET

main88410-0K580iTGN121,126,136..SAP202308-202410

main88410-0K600iGUN12#,13#..THP..DCRL;GUN126..MHV..(ARL,GCC,LA)202308-202407

main88410-0K621iGGN125..LA202311-202410

main88410-0K631iGGN125..GCC202308-202407

main88410-0K690iTGN12#..GCC202308-202407

main88410-0K760iGUN125,126,13#..AGTP202311-202410

main88410-0K770iTGN126,136..AGTP202311-202410

88688NBRACKET, COOLER

main88688-0K280iTGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407

main88849-0K010iGGN125..LA202311-202410

main88849-0K020iGUN125,126..CAMP,MAP,MMRP202308-202408

NO.2:REFER ILLUST.

main88849-0K030iGGN125..GCC202308-202407

NO.1:REFER ILLUST.

9006804065

main90068-04065

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

90119T0405

main90119-T0405

9331915008

main93319-15008

12 parts on this diagram · 7 diagrams in section
